Electrical Diagrams

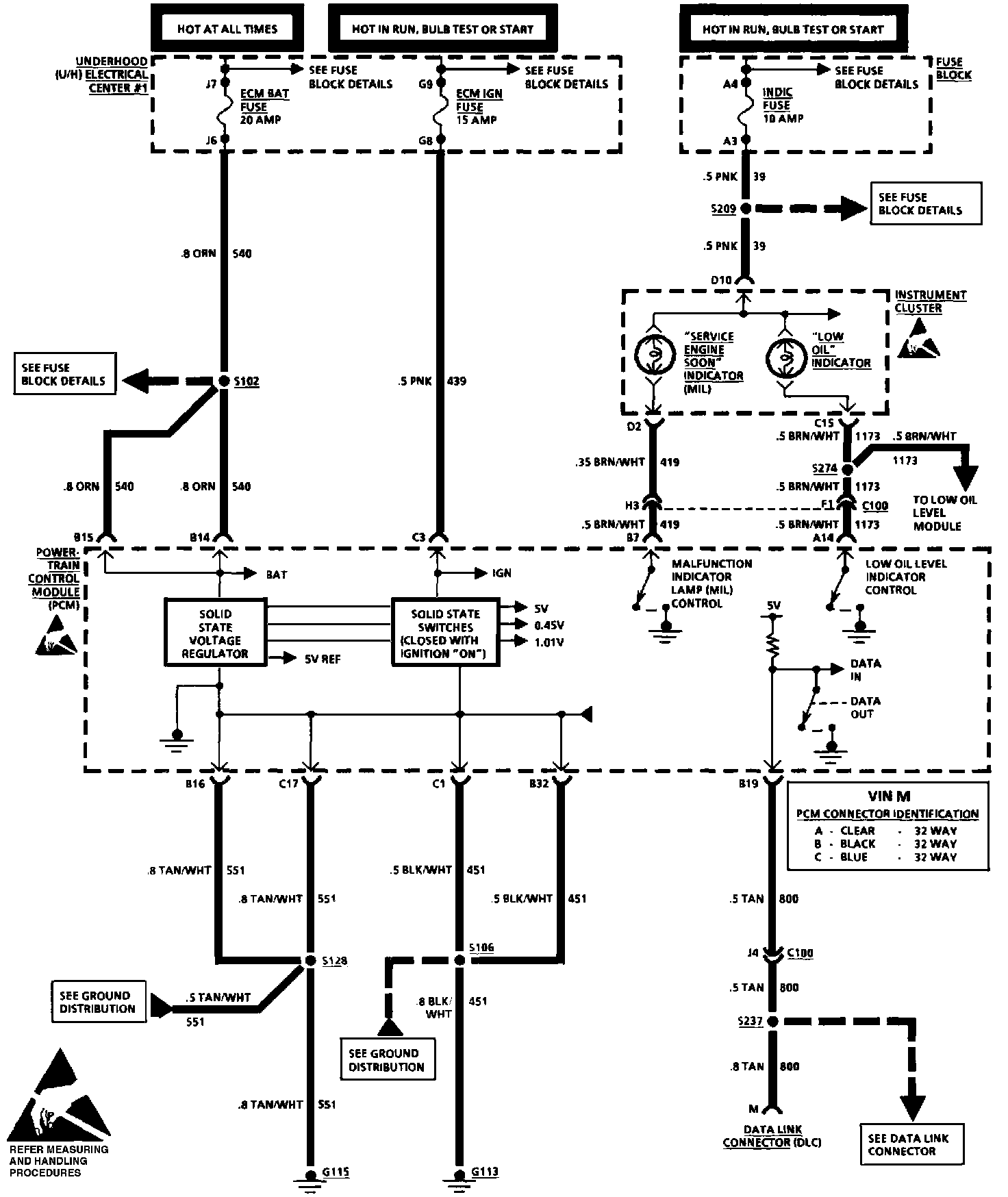

Power, Ground, DLC And Malfunction IND Lamp (MIL):

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagram. Electrical Diagrams
