Home >> Buick >> 1994 >> Regal V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> I/P Fuse Block >> HVAC and ABS Fuses

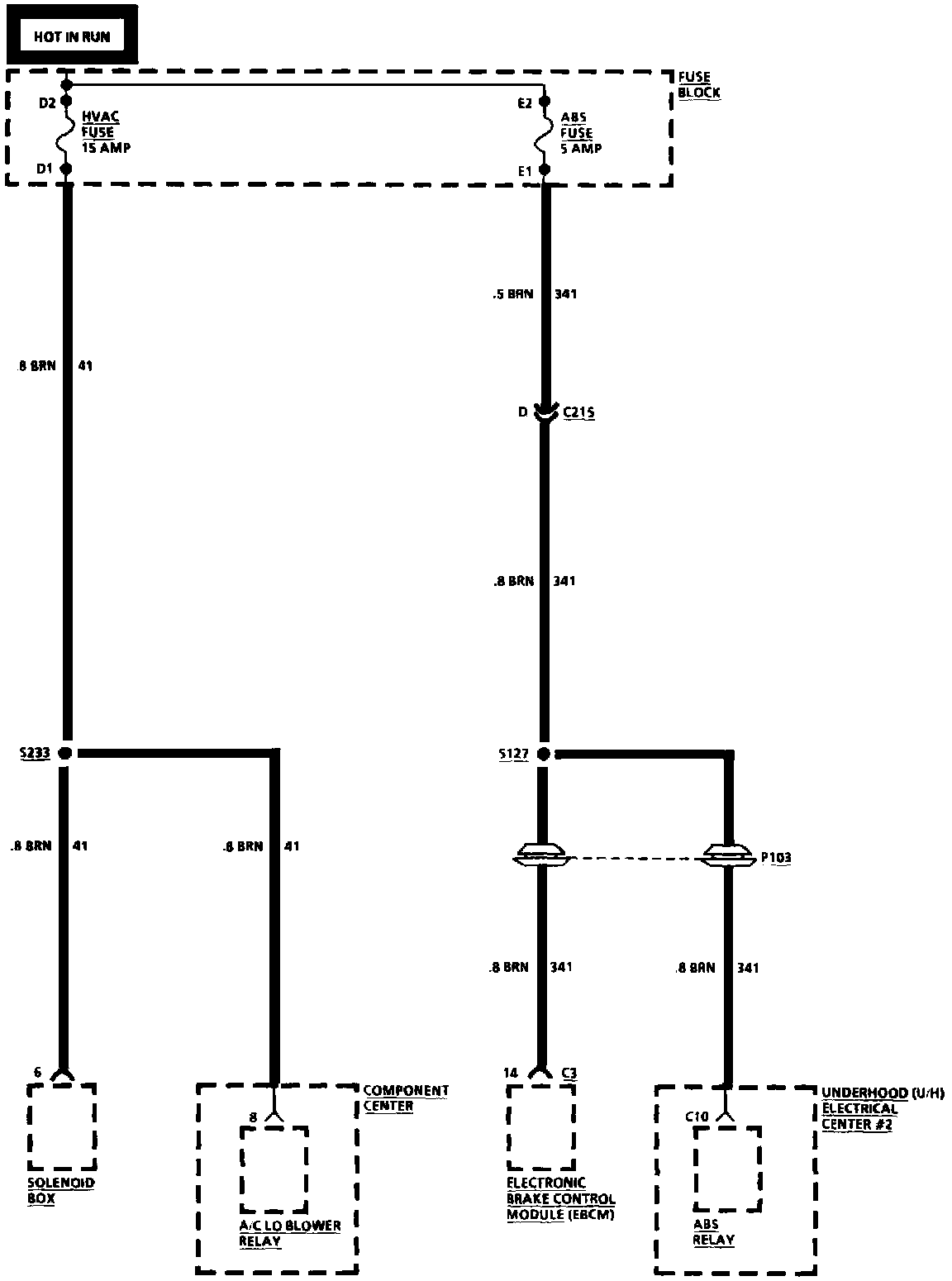

HVAC and ABS Fuses

HVAC And ABS Fuses:
