Home >> Buick >> 1994 >> Regal V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> I/P Fuse Block >> ACC, Elec and C/LTR Fuses

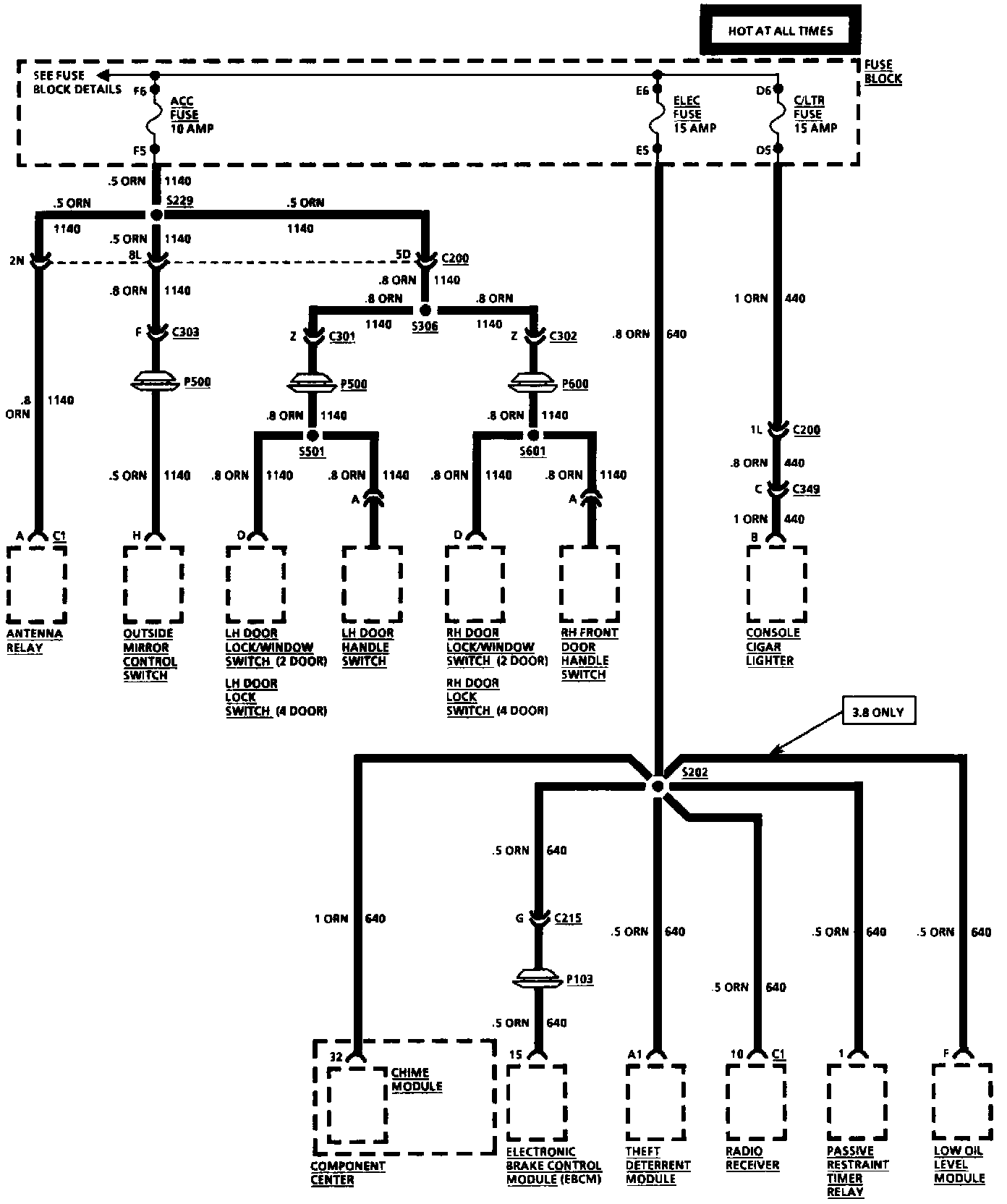

ACC, Elec and C/LTR Fuses

ACC, ELEC And C/LTR Fuses:
