Home
>>
Buick
>>
1994
>>
Regal V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Electronic Ignition (EI) System
Electronic Ignition (EI) System

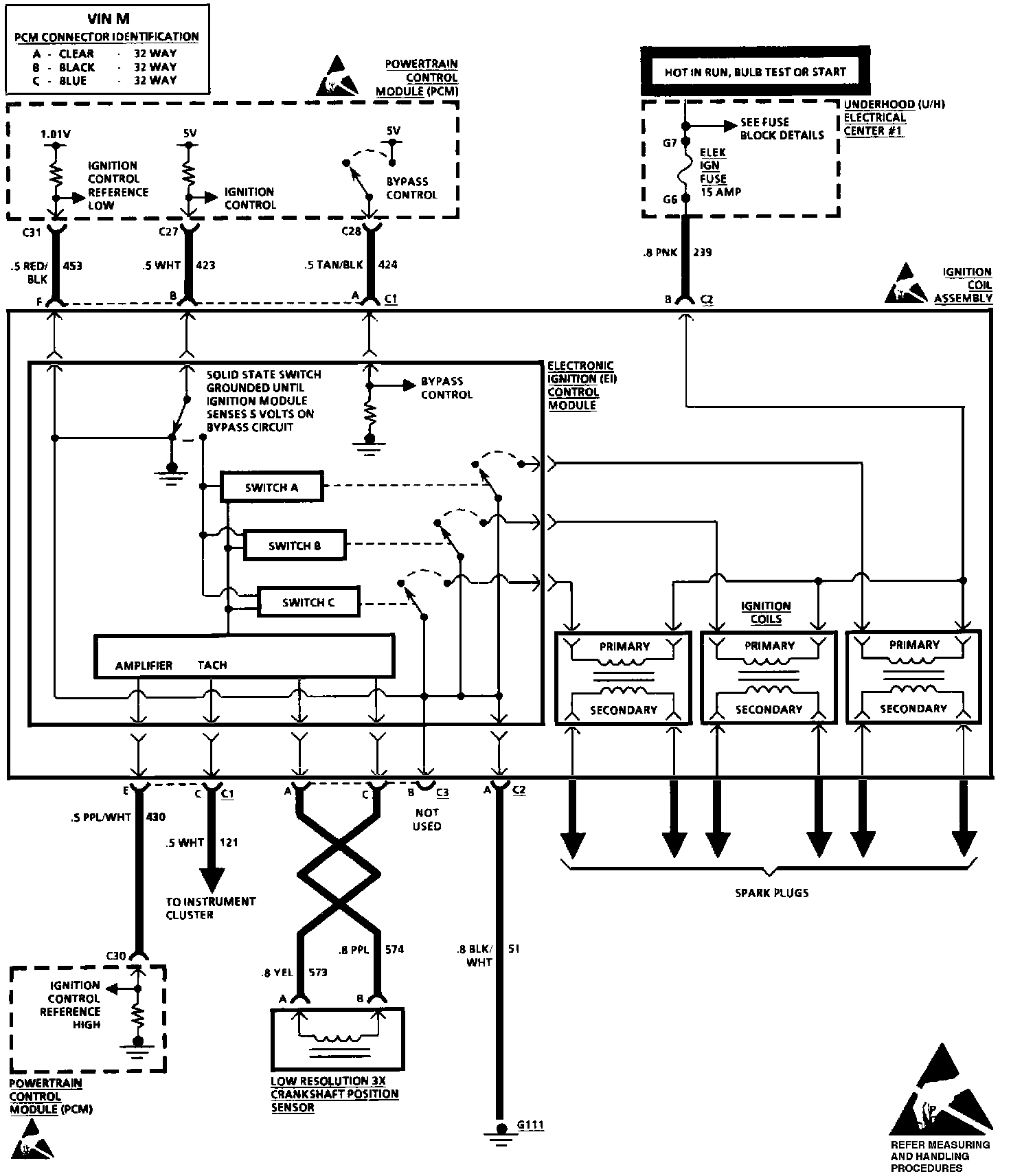

Electronic Ignition (EI) System:
Ignition:
