Regal V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Pinout Description
Pinout Description

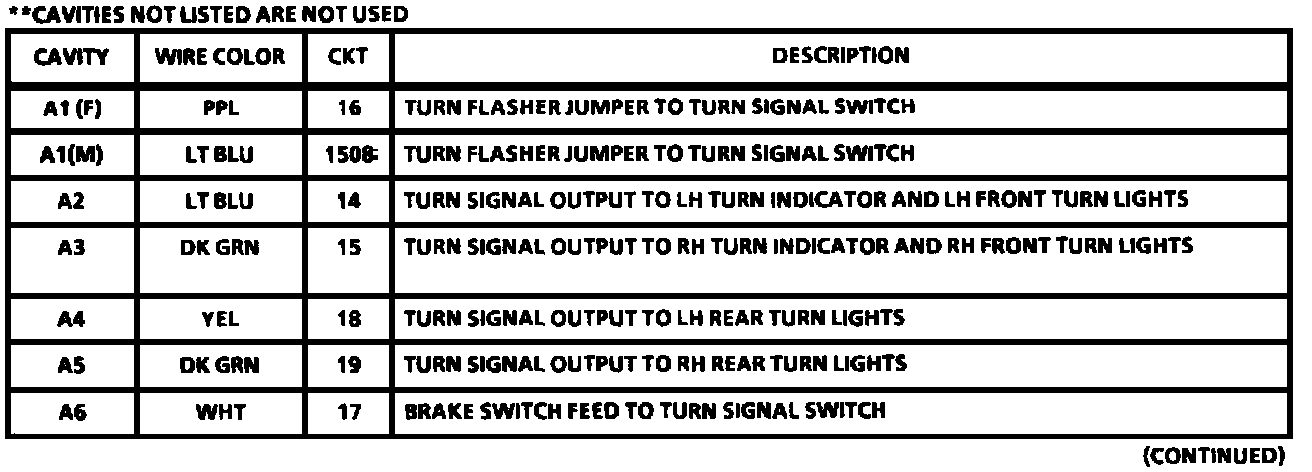

I/P Harness To Steering Column Harness: C202 (Part 1 Of 2):

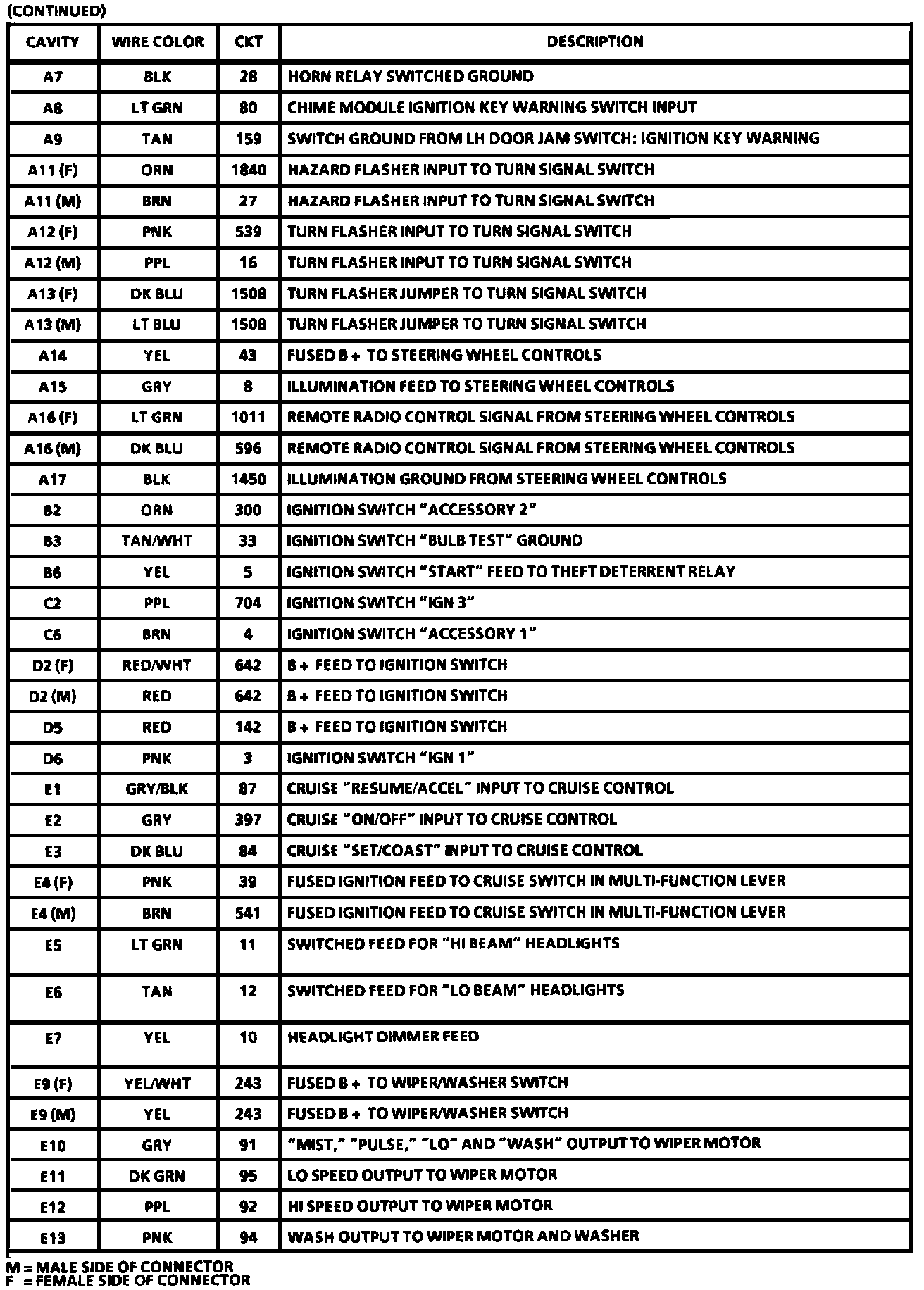

I/P Harness To Steering Column Harness: C202 (Part 2 Of 2):
