Chart 2

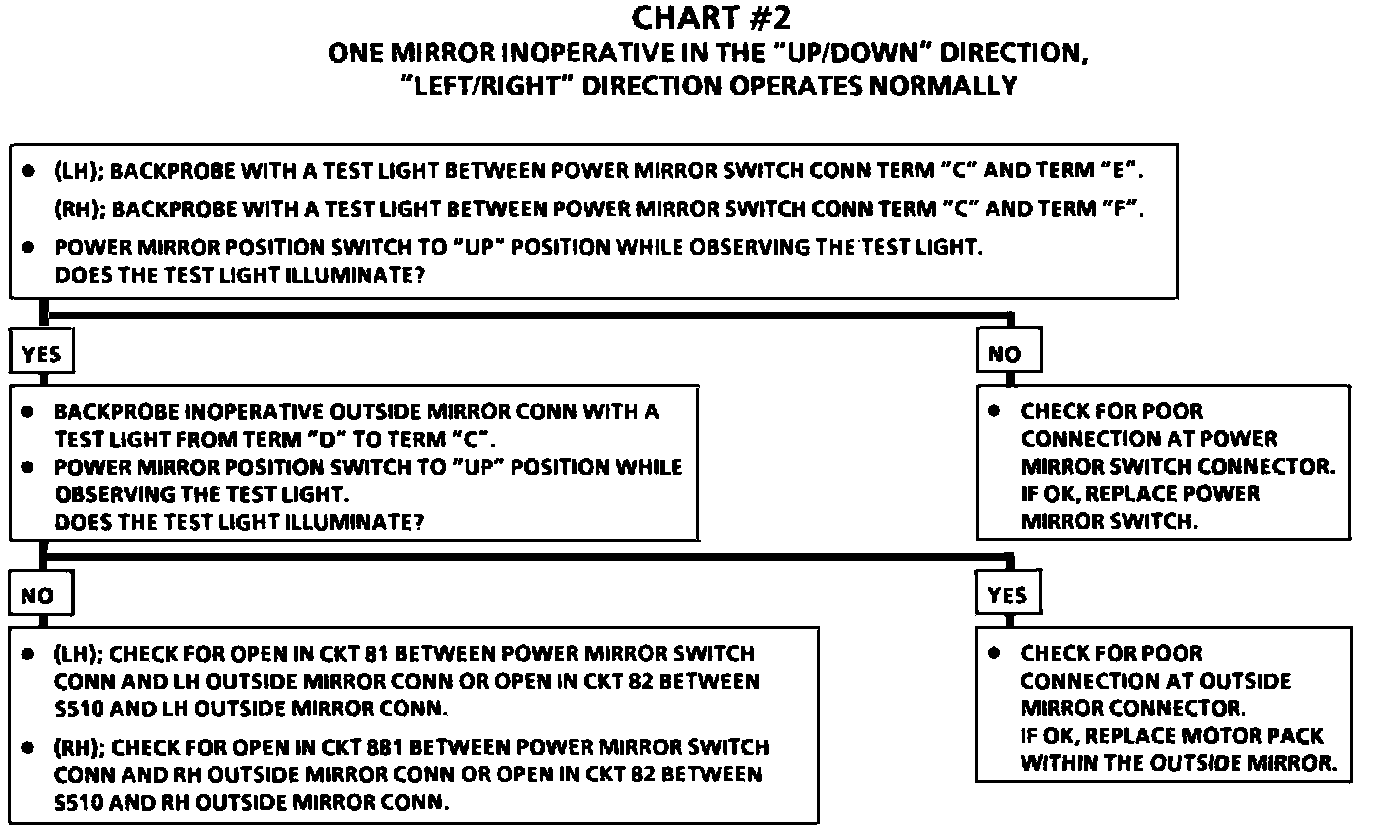

Chart #2-One Mirror Inoperative In The UP/DOWN Direction, LEFT/RIGHT Direction Operates Normally:
