Antitheft Relay: Locations

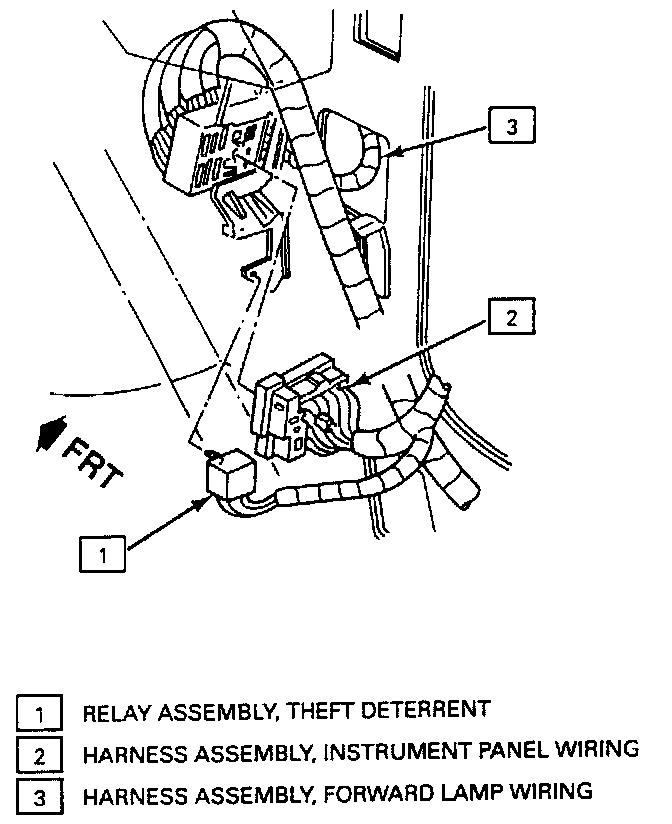

THEFT DETERRENT RELAY




RH Side Of Passenger Compartment:






The Theft Deterrent Relay is located below the RH side of Instrument Panel (I/P), near connector C200.
