Electrical Diagrams

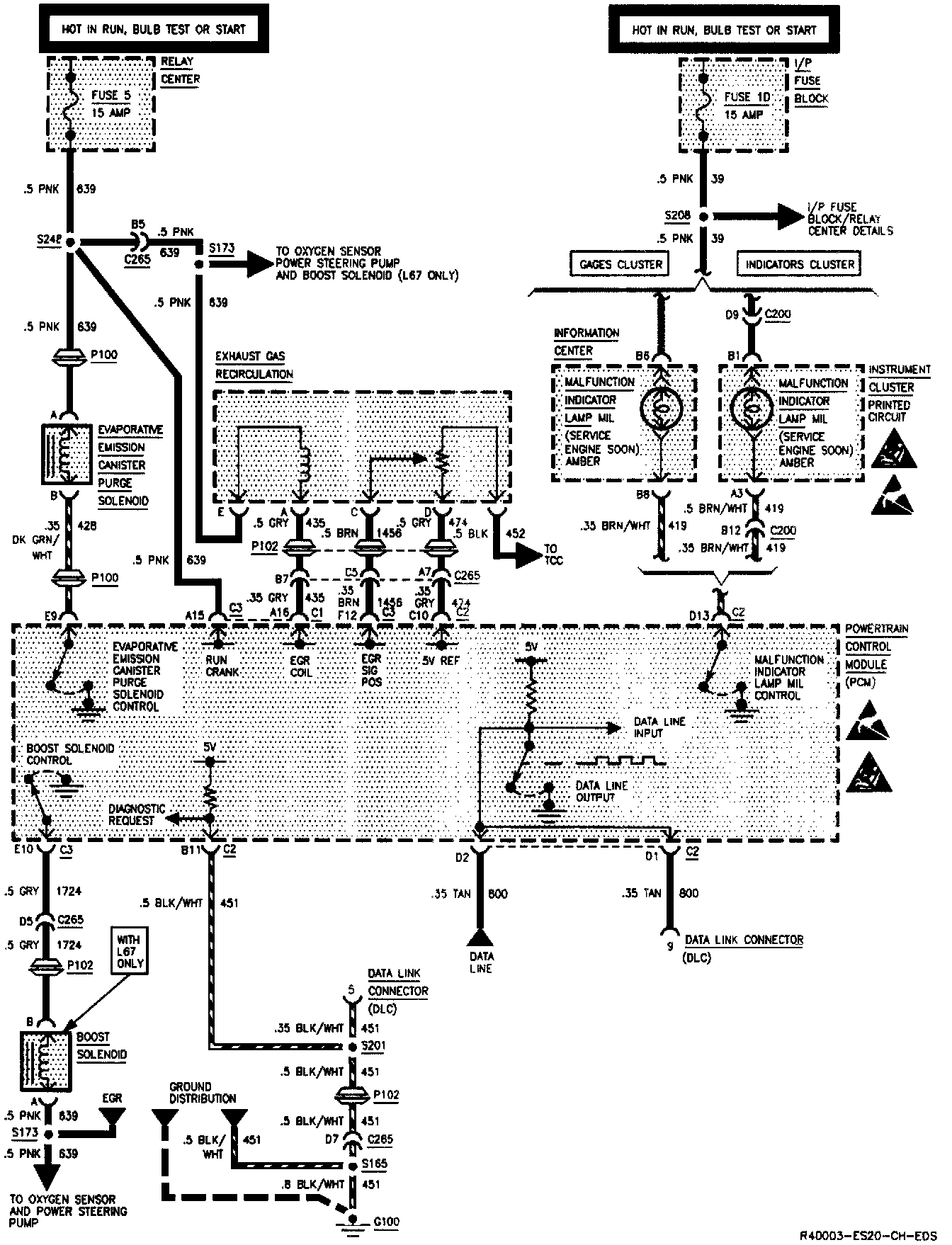

Emission Control & MIL (SERV ENG SOON) IND.:

This diagram is one part of the Complete set of Powertrain Wiring diagram
located under Powertrain Management. Refer to this area if you need the accompanying diagrams. Electrical Diagrams
