Home >> Buick >> 1994 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Part 4

Part 4

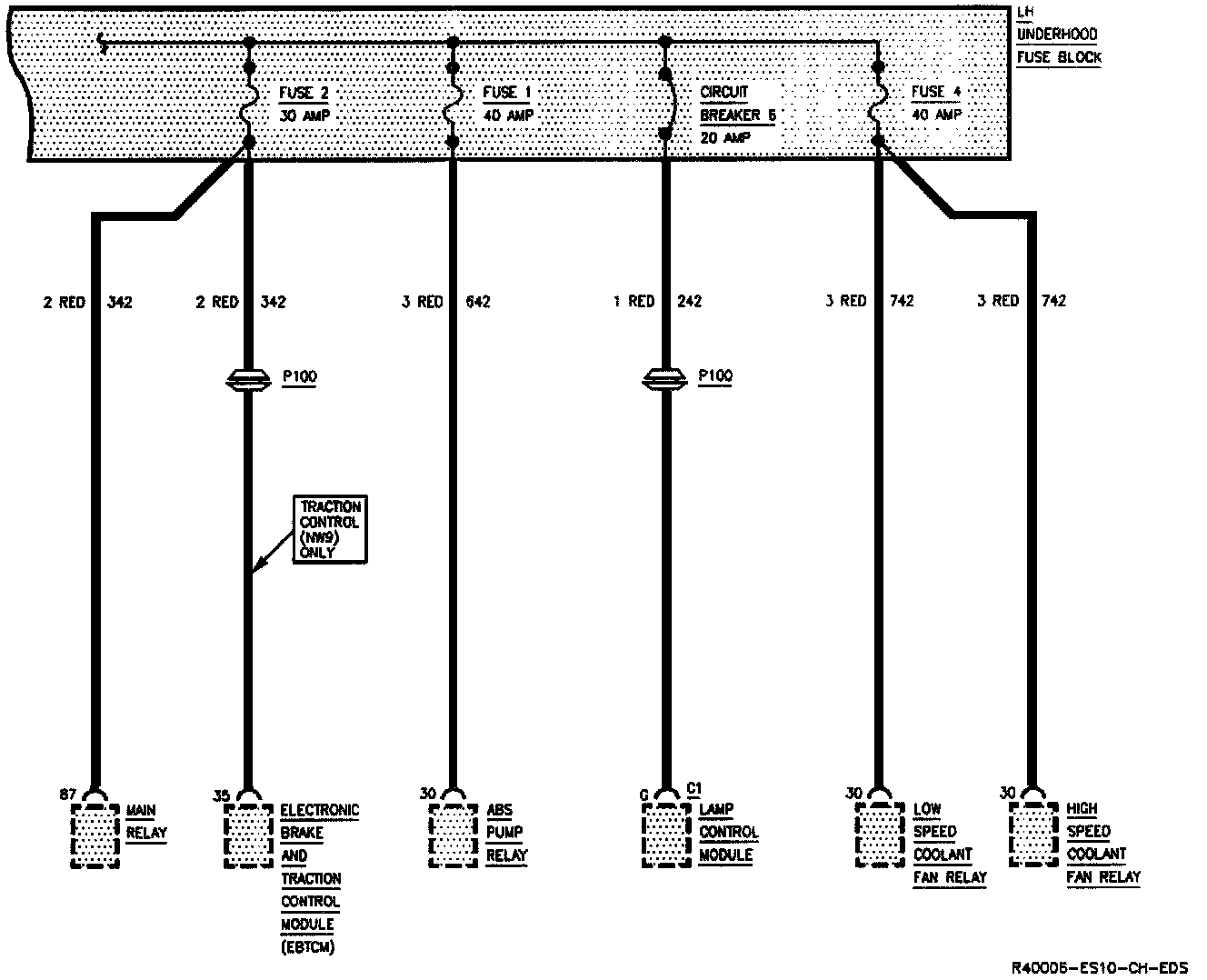

LH Underhood Fuse Block Cont:
