Home
>>
Buick
>>
1994
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Automatic Transmission & Emission Controls
Automatic Transmission & Emission Controls

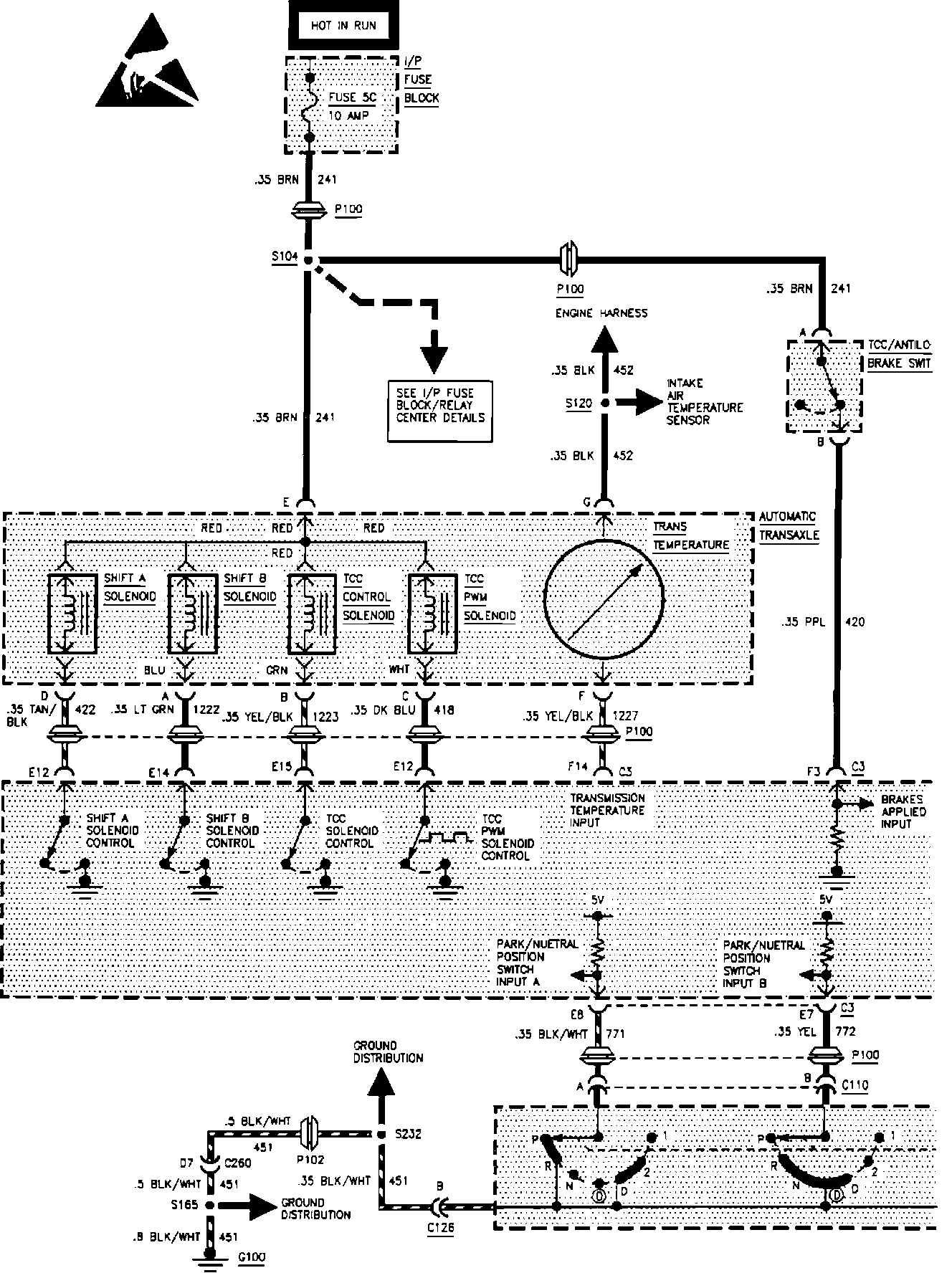

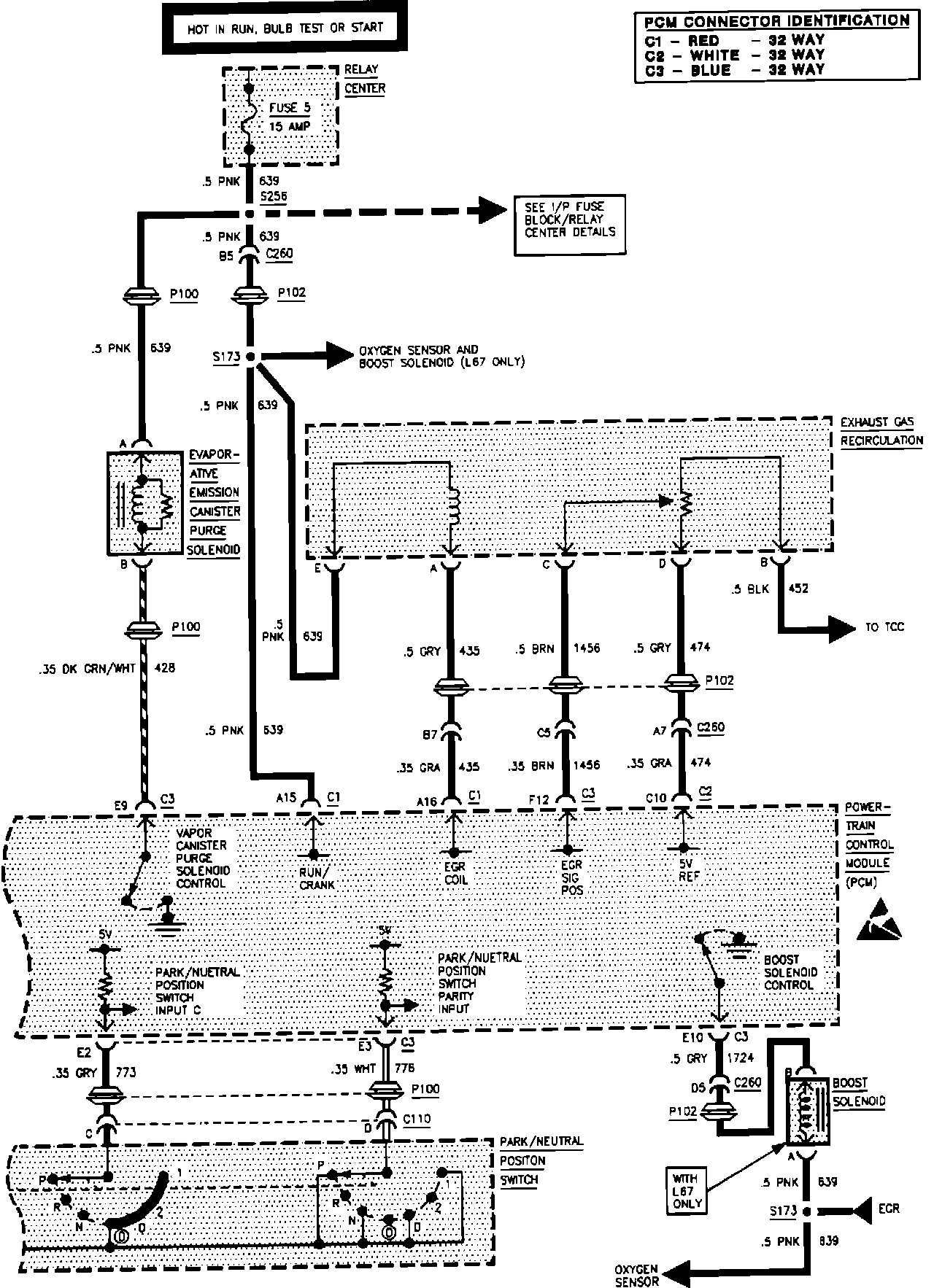

Automatic Transaxle And Emission Control Wiring Diagram:
Automatic Transaxle And Emission Control Wiring Diagram:
