Home >> Buick >> 1994 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Electrical Diagrams >> Fuses 7, 8

Fuses 7, 8

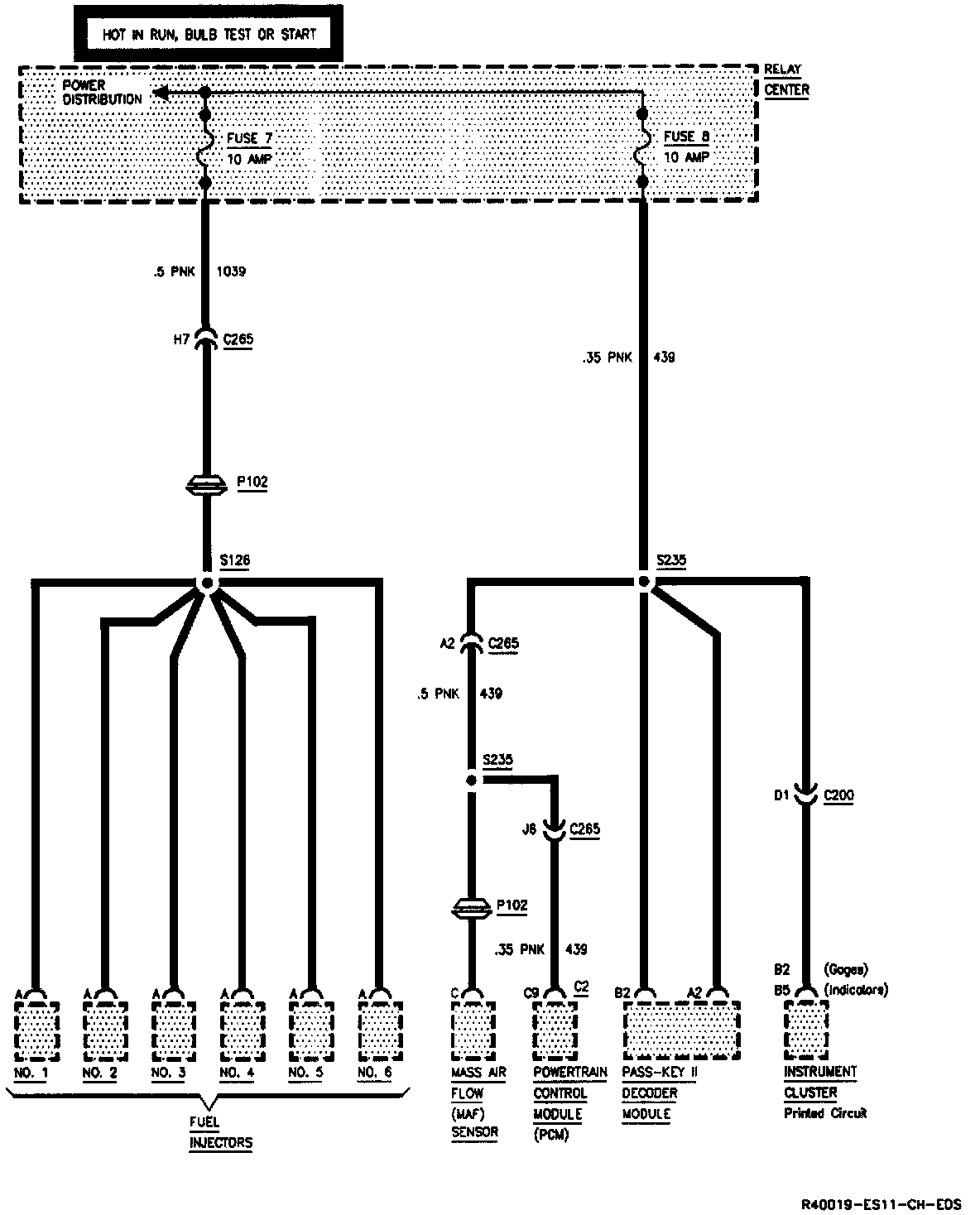

Relay Center Fuses 7, 8:
