Home >> Buick >> 1994 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Part 2

Part 2

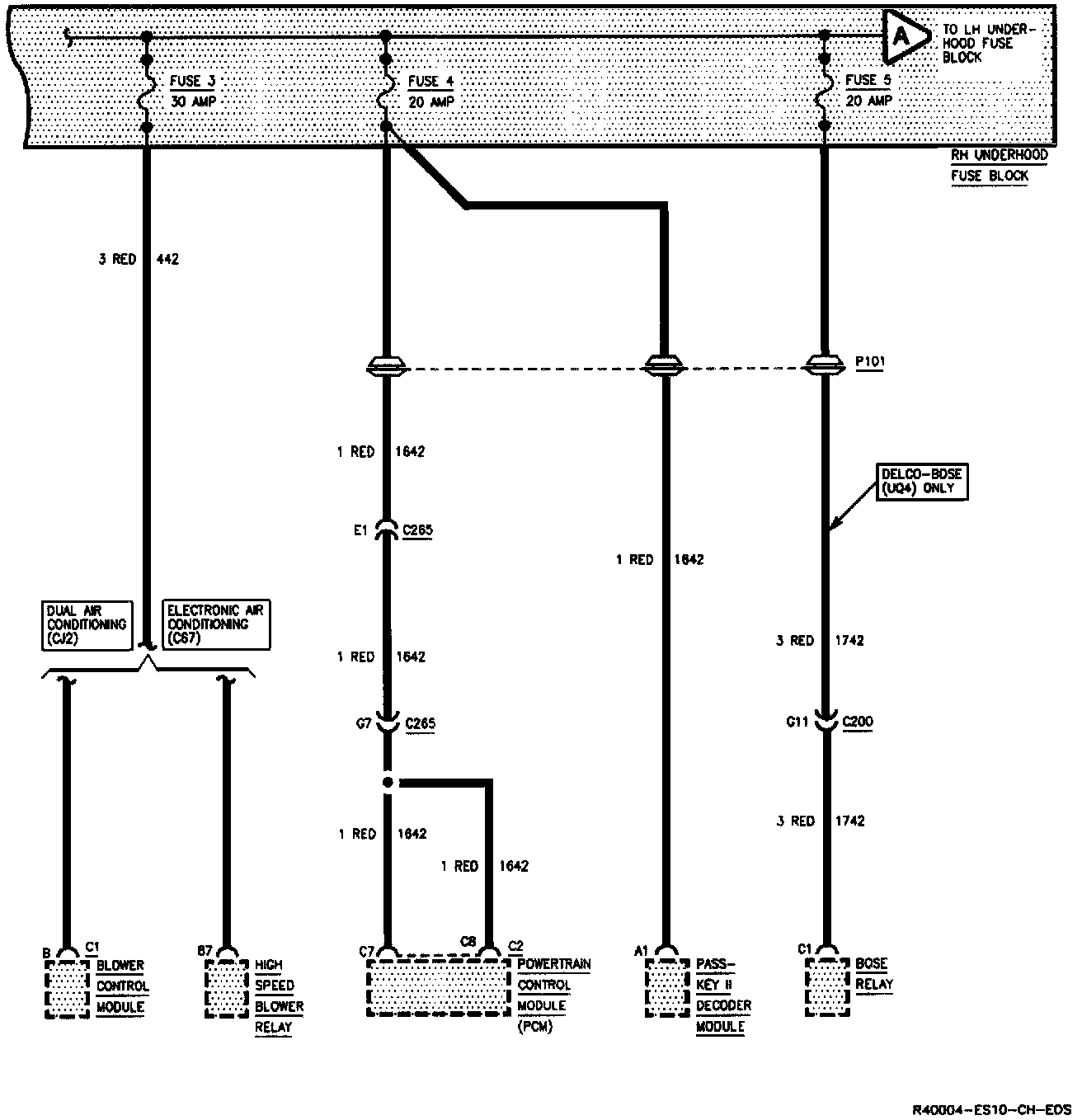

Battery To RH Underhood Fuse Block:
