Home >> Buick >> 1994 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> I/P Fuse Block >> Fuse 6A

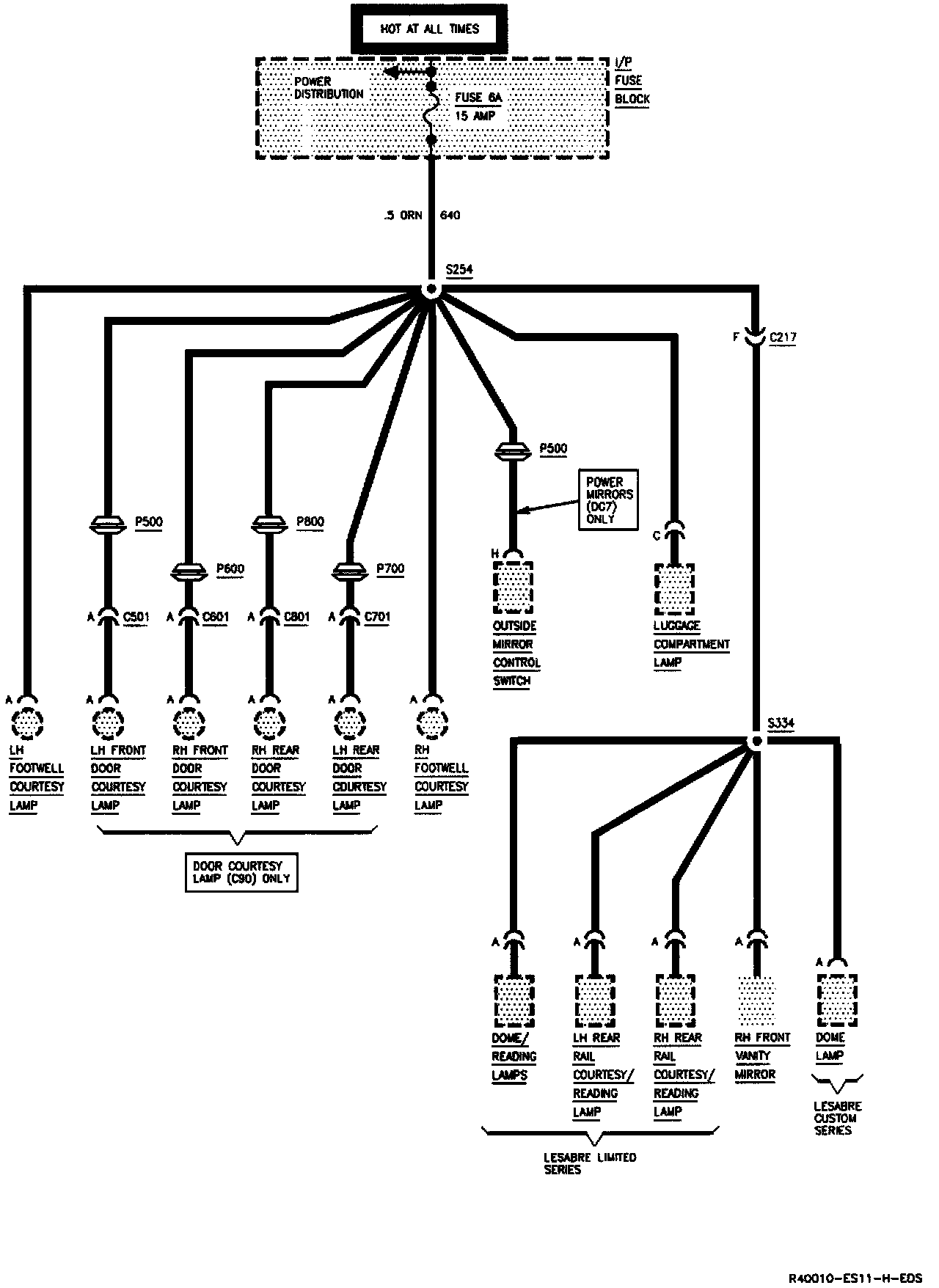

Fuse 6A

I/P Fuse Block Fuse 6A:
