Home >> Buick >> 1994 >> LeSabre V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> I/P Fuse Block >> Fuse 1C

Fuse 1C

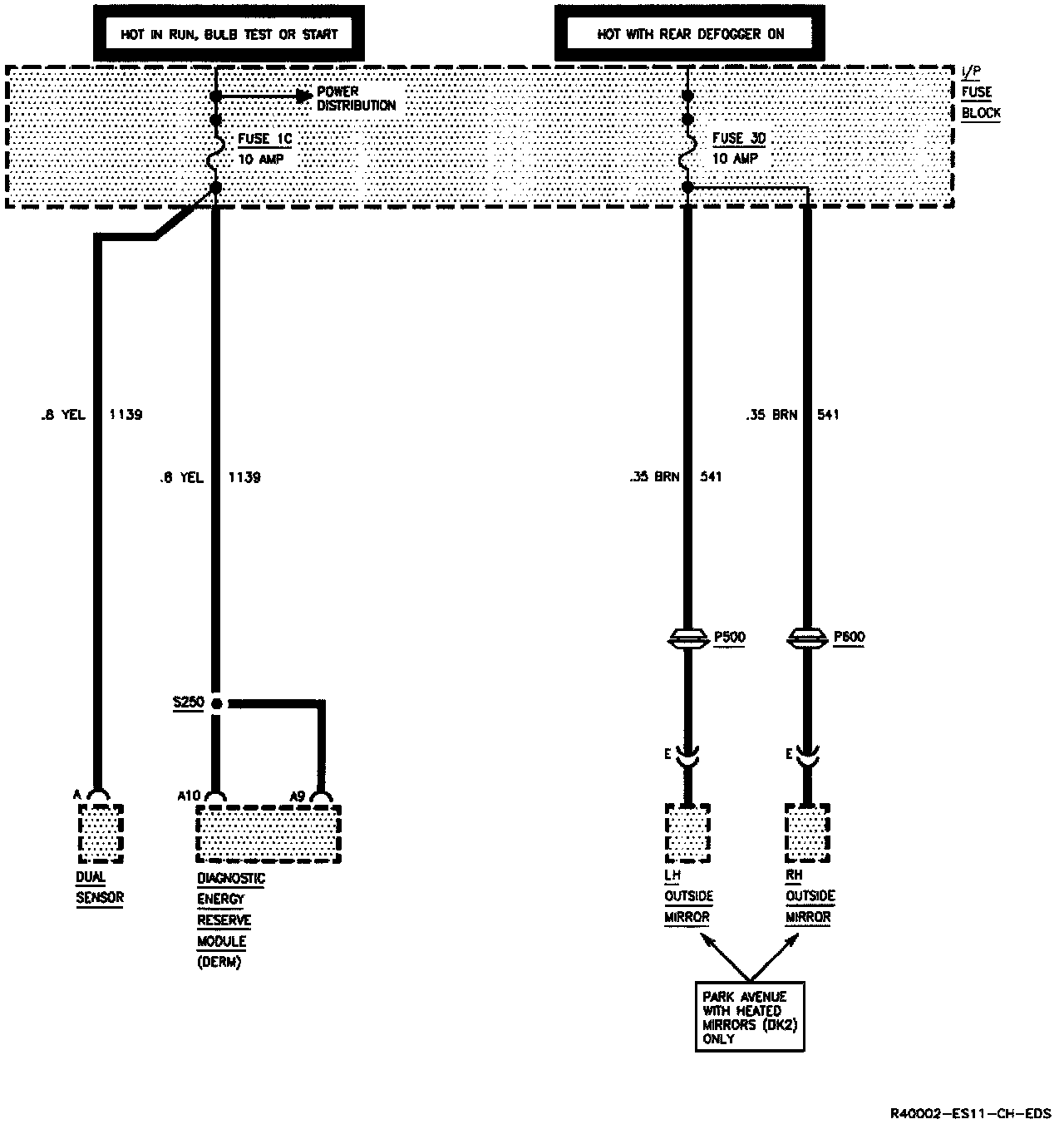

I/P Fuse Block Fuses 1C, 1D:
