Intake Manifold Complete

This article has been updated with TSB# 436108a.


REMOVE OR DISCONNECT
1. Negative battery cable.
2. Fuel injector sight shield and air intake duct.

Spark Plug Wiring Harness (Front):

Spark Plug Wiring Harness (Rear):

3. Spark plug wires on right side of engine and set aside.
4. Fuel rail.
5. Exhaust crossover heat shield.

Cable Bracket To Throttle Body:

6. Cable bracket to cylinder head mounting bolt.
7. Power steering pump support bracket.
8. Loosen generator and move to obtain clearance.

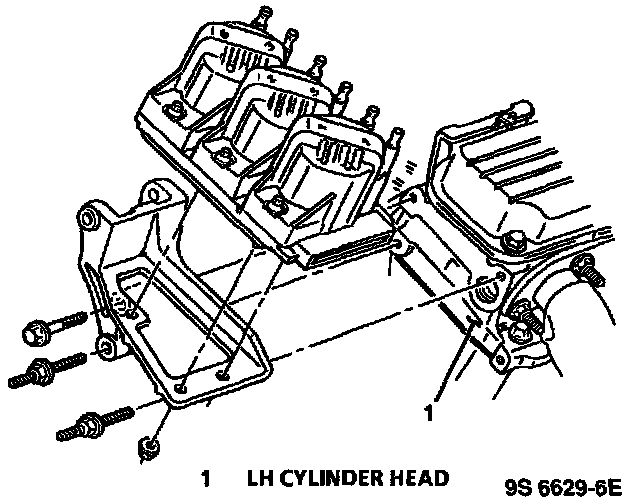

Ignition Coils And Ignition Control Module Assembly:

9. Generator bracket.
10. Heater pipes.
11. Bypass hose.

Fig. 3 Upper & Lower Intake Manifolds:

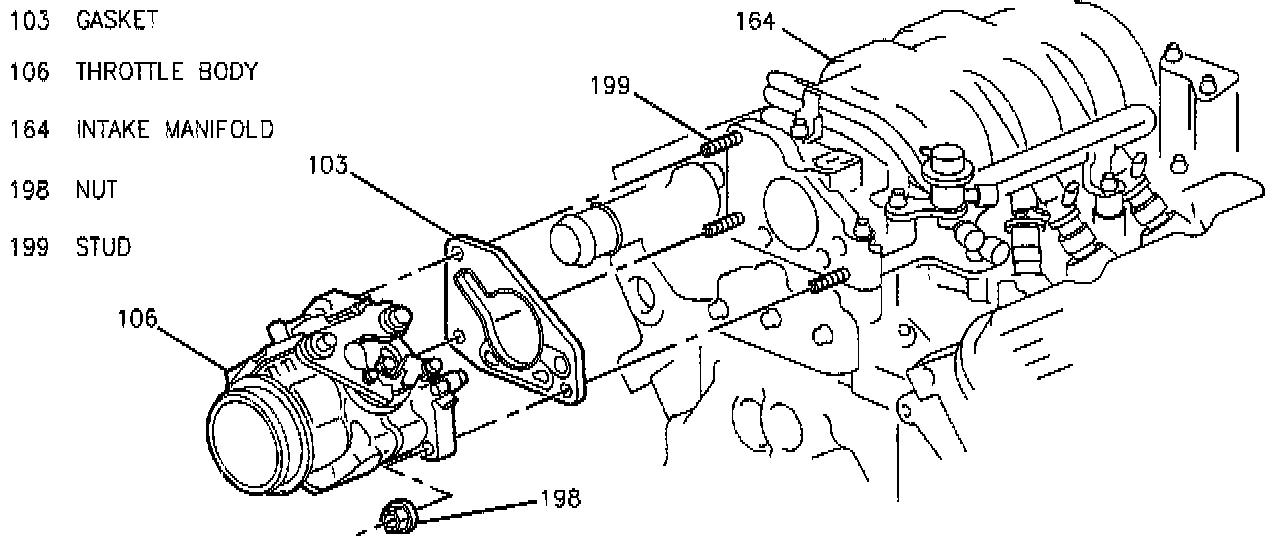

Throttle Body To Intake Manifold:

12. Intake manifold bolts and manifold.

IMPORTANT: To complete installation, observe the following assembly tips.
^ Clean the cylinder block, heads and intake manifold sealing surface of all oil with a suitable solvent.
^ Apply sealer GM P/N 12345336 or equivalent to the ends of the manifold seals.
^ Clean the intake manifold bolts and bolt holes of adhesive compound.
^ Apply thread lock compound GM P/N 12345493 or equivalent to the intake manifold bolt threads before assembly.

INSTALL OR CONNECT

Fig. 3 Upper & Lower Intake Manifolds:

Throttle Body To Intake Manifold:

1. Intake manifold







TIGHTEN
- Manifold bolts twice to 15 Nm (11 lb. ft.) following the sequence.

2. Bypass hose.
3. Heater pipes.

Ignition Coils And Ignition Control Module Assembly:

4. Generator bracket.
5. Generator.
6. Power steering pump support bracket.

Cable Bracket To Throttle Body:

7. Cable bracket to cylinder head mounting bolt.
8. Exhaust crossover heat shield.
9. Fuel rail.

Spark Plug Wiring Harness (Front):

Spark Plug Wiring Harness (Rear):

10. Spark plug wires.
11. Fuel injector sight shield and air intake duct.
12. Negative battery cable.
