Pictoral Views

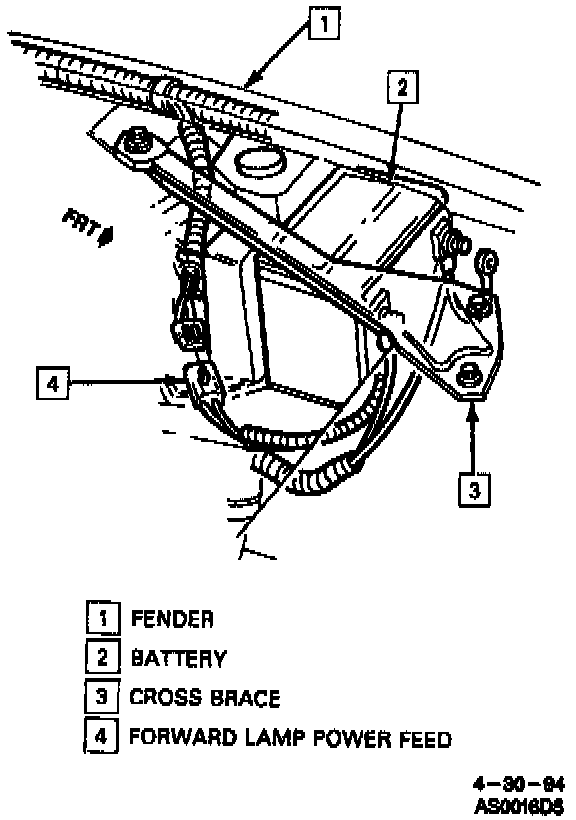

Engine Wiring (Battery):
1 FENDER
2 BATTERY
3 CROSS BRACE
4 FORWARD LAMP POWER FEED

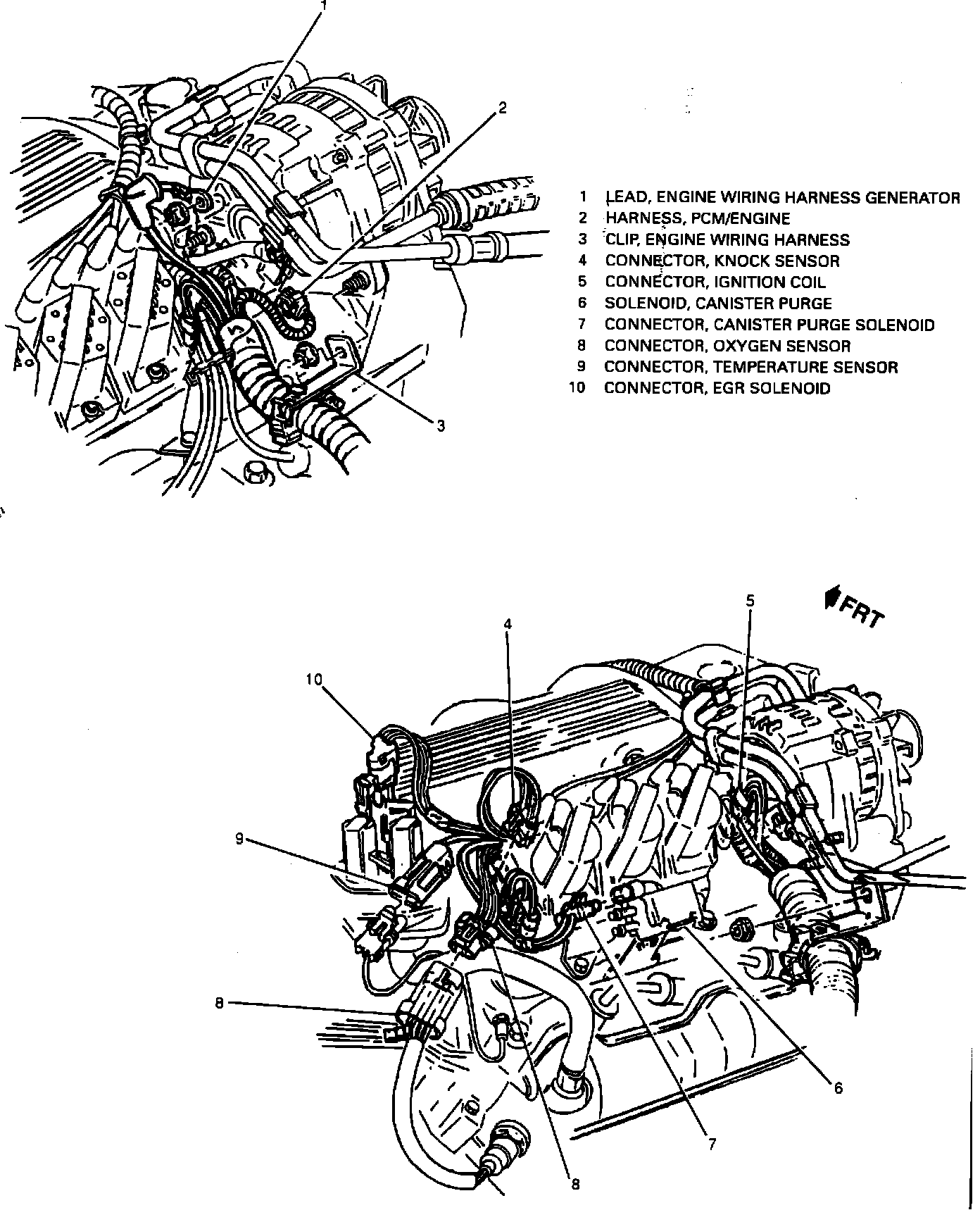

Pictorial View:
1 LEAD, ENGINE WIRING HARNESS GENERATOR
2 HARNESS, PCM/ENGINE
3 CLIP, ENGINE WIRING HARNESS
4 CONNECTOR, KNOCK SENSOR
5 CONNECTOR, IGNITION COIL
6 SOLENOID, CANISTER PURGE
7 CONNECTOR, CANISTER PURGE SOLENOID
8 CONNECTOR, OXYGEN SENSOR
9 CONNECTOR, TEMPERATURE SENSOR
10 CONNECTOR, EGR SOLENOID

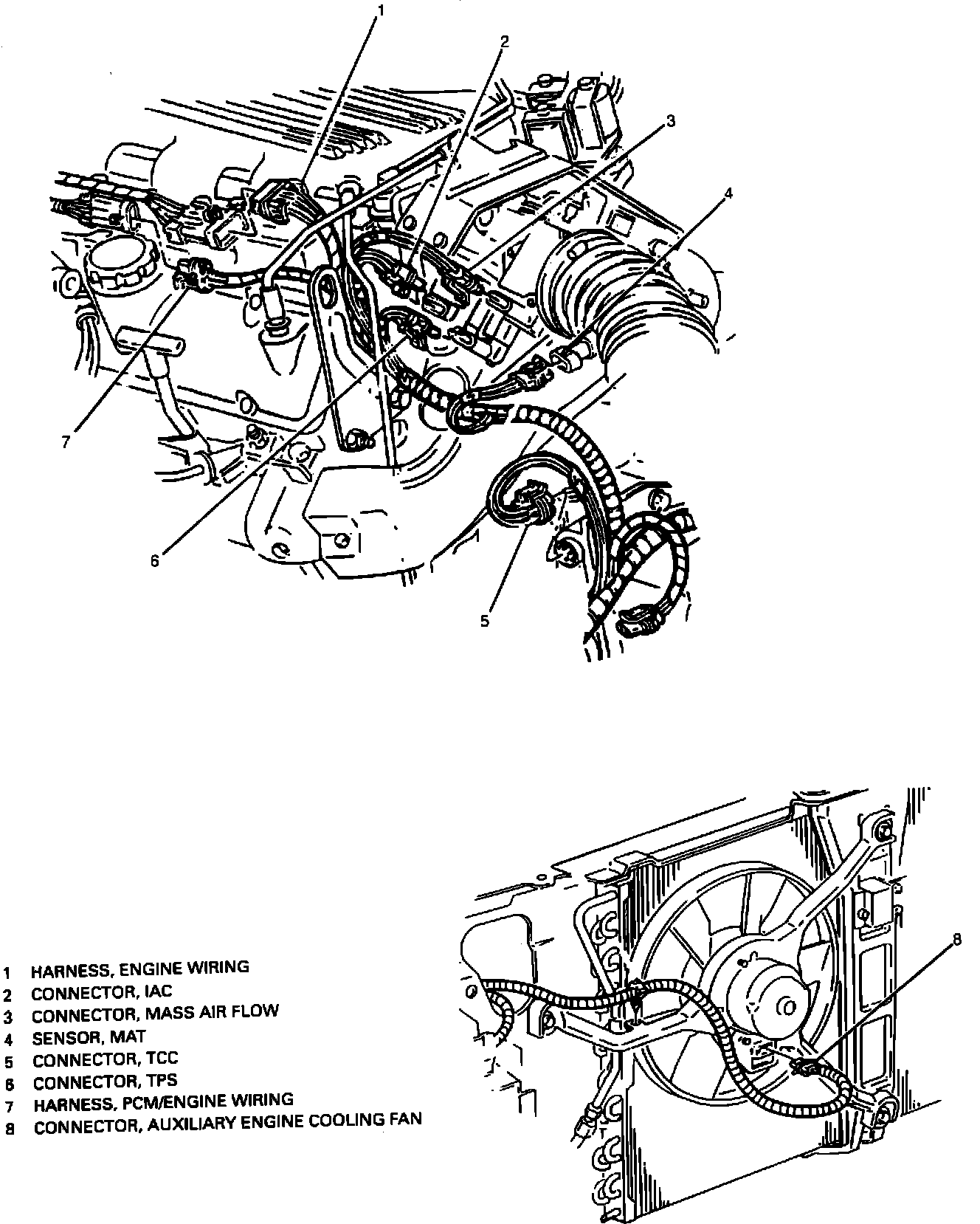

Pictorial View:
1 HARNESS, ENGINE WIRING
2 CONNECTOR, IAC
3 CONNECTOR, MAF
4 SENSOR, IAT, MAT
5 CONNECTOR, TCC
6 CONNECTOR, TPS
7 HARNESS, PCM/ENGINE WIRING
8 CONNECTOR, AUXILIARY ENGINE COOLING FAN
