Evaporative Emission Control Canister: Service and Repair

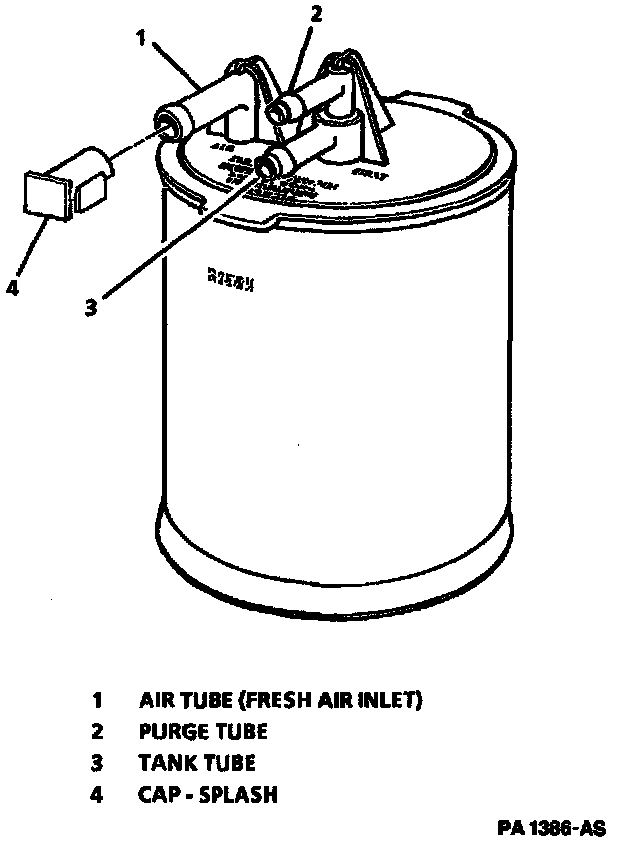

Evaporative Emission Canister:

REMOVE OR DISCONNECT
1. Hoses from evaporative emissions (EVAP) canister. Mark hoses to install on new canister.
2. Two hold down bolts.
3. Canister.

INSTALL OR CONNECT
1. EVAP canister.
2. Two hold down bolts.
3. Hoses. Make sure connections are correct.
