Home
>>
Buick
>>
1994
>>
Century V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Ignition & Fuel Injection
Ignition & Fuel Injection

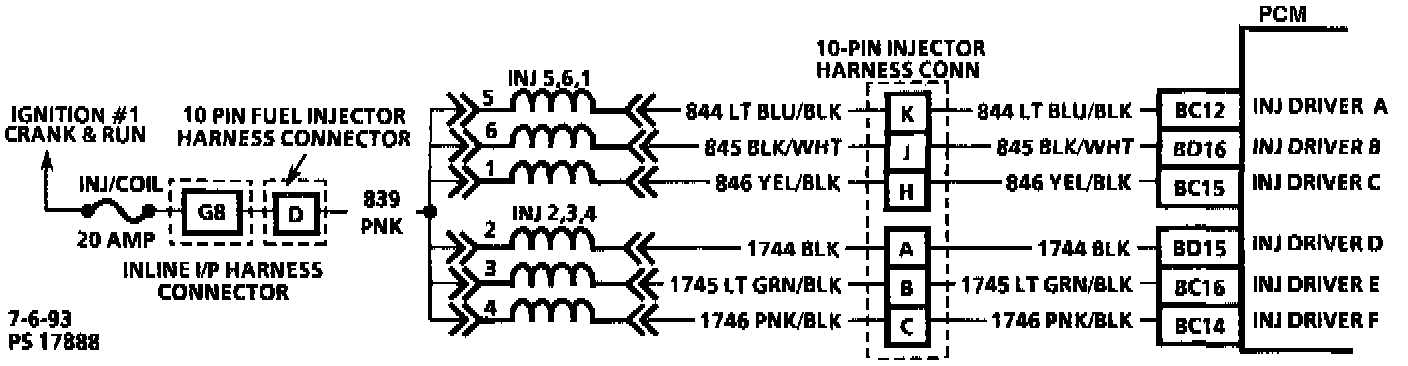

Ignition & Fuel Injection Wiring Schematic:
Ignition & Fuel Injection Wiring Schematic:
