Buick
>>
1993
>>
Skylark V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Gage Cluster
Gage Cluster

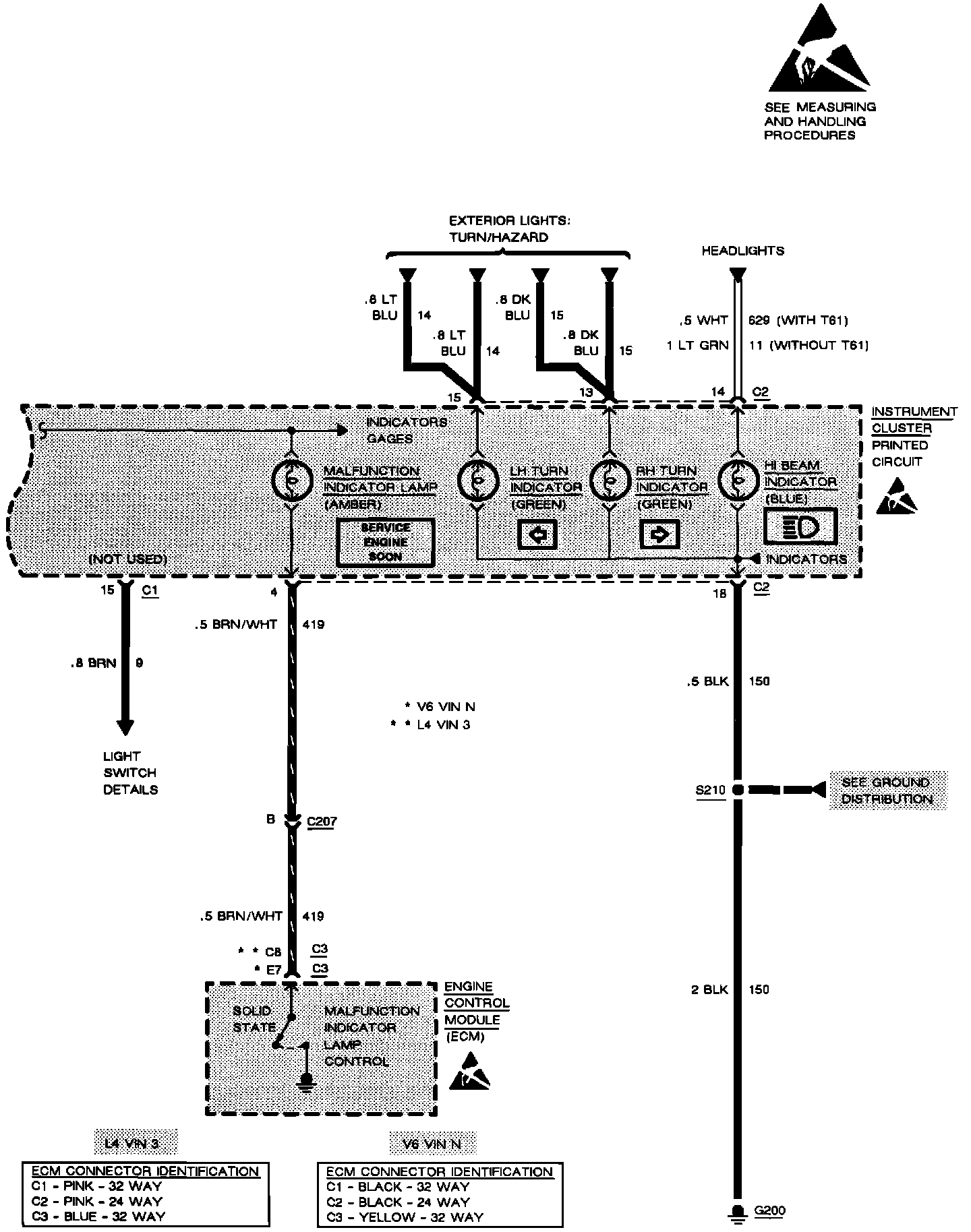

Instrument Panel: With Gages Cluster:
