Skylark V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Base Cluster
Base Cluster

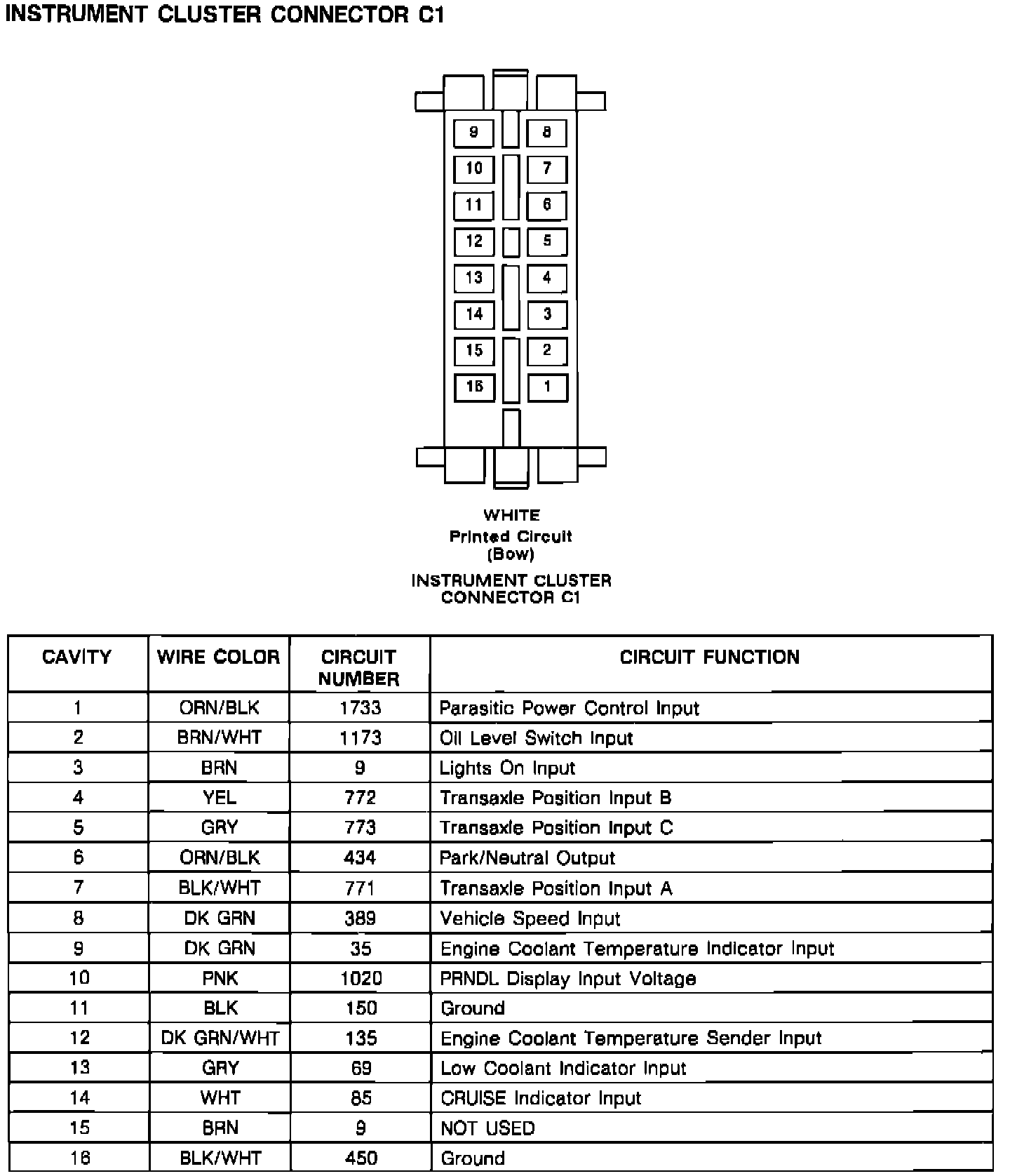

Instrument Cluster Connector: C1:

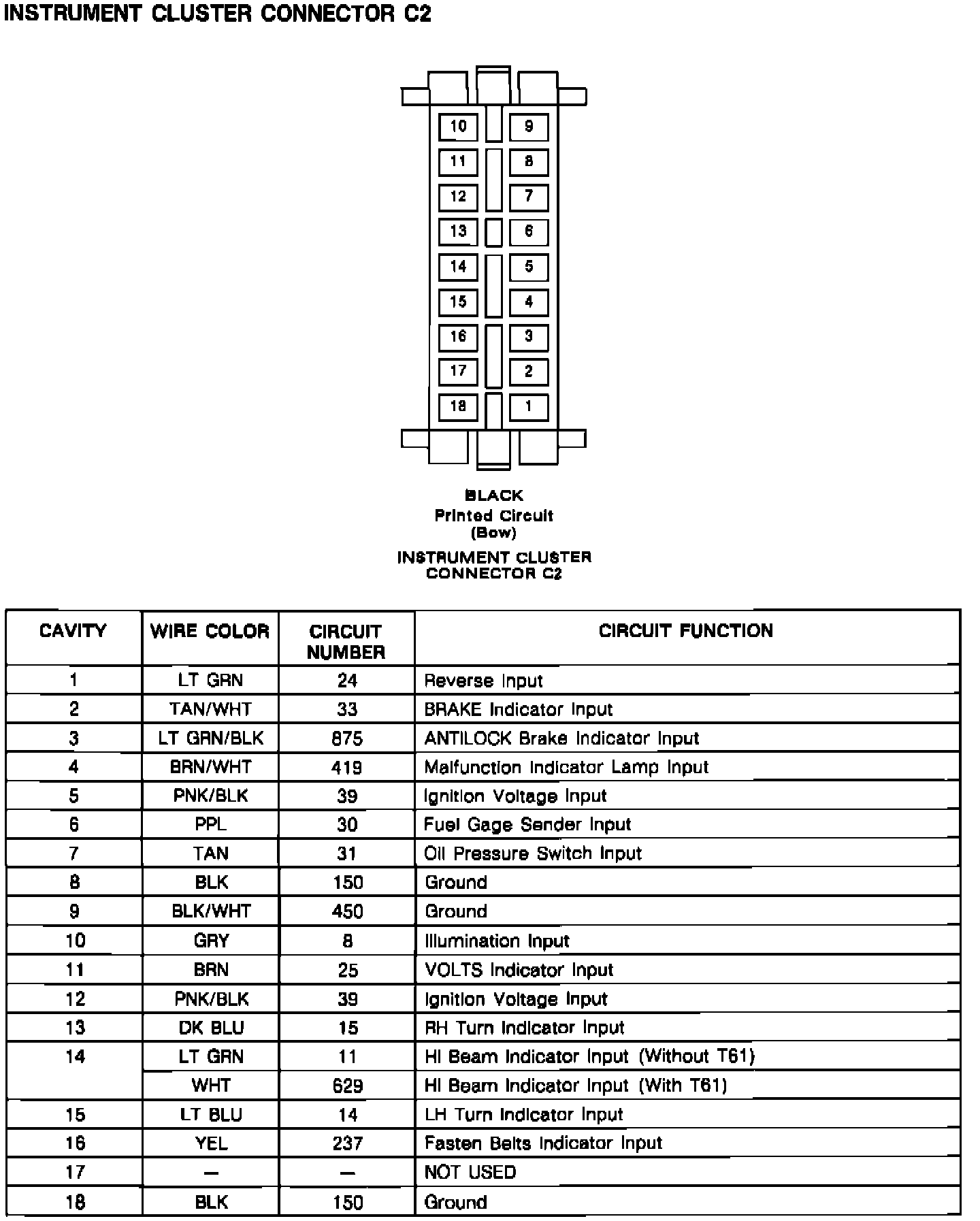

Instrument Cluster Connector: C2:
