Home >> Buick >> 1993 >> Skylark V6-204 3.3L VIN N FI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> System Operation Check >> System Check

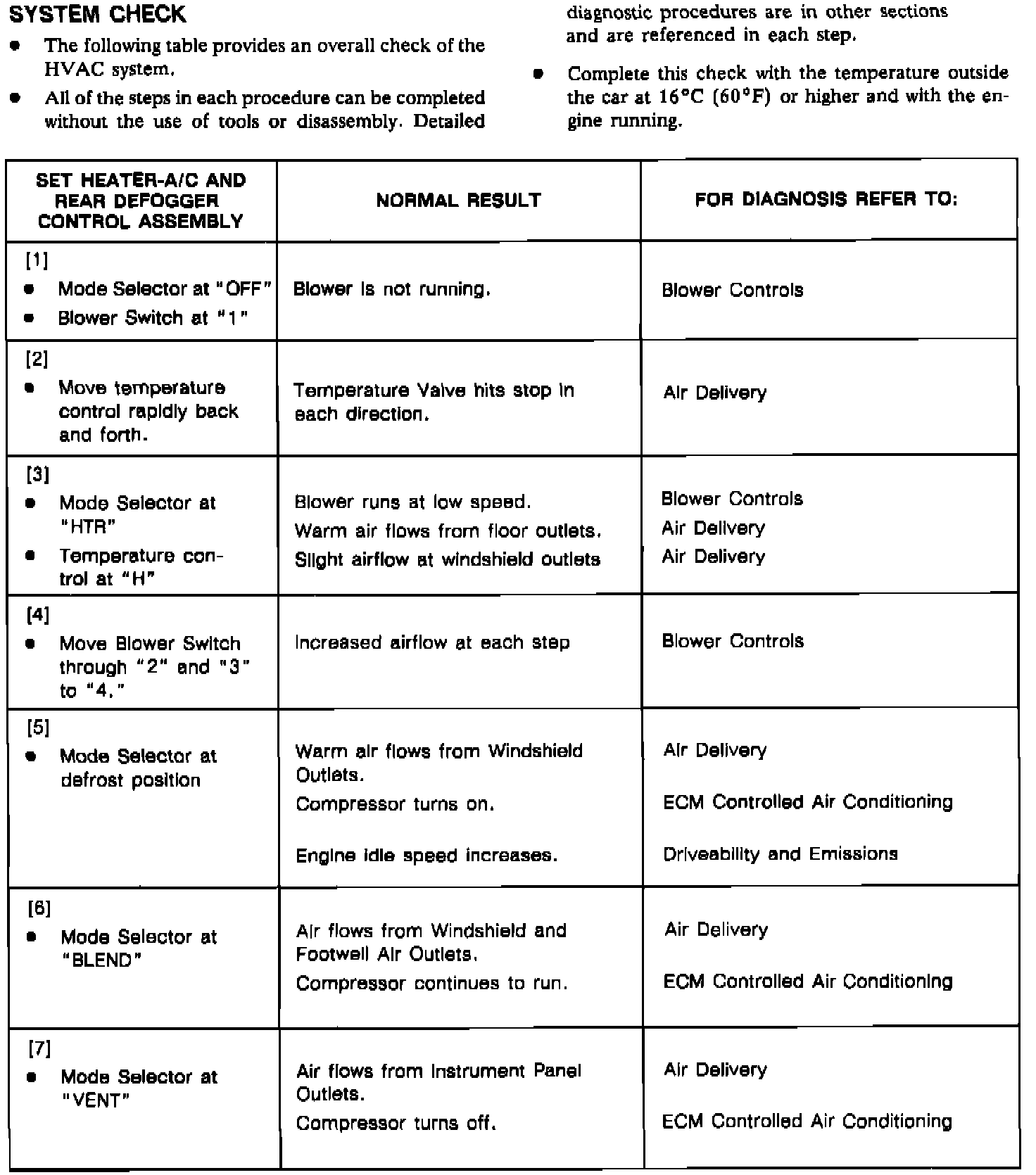

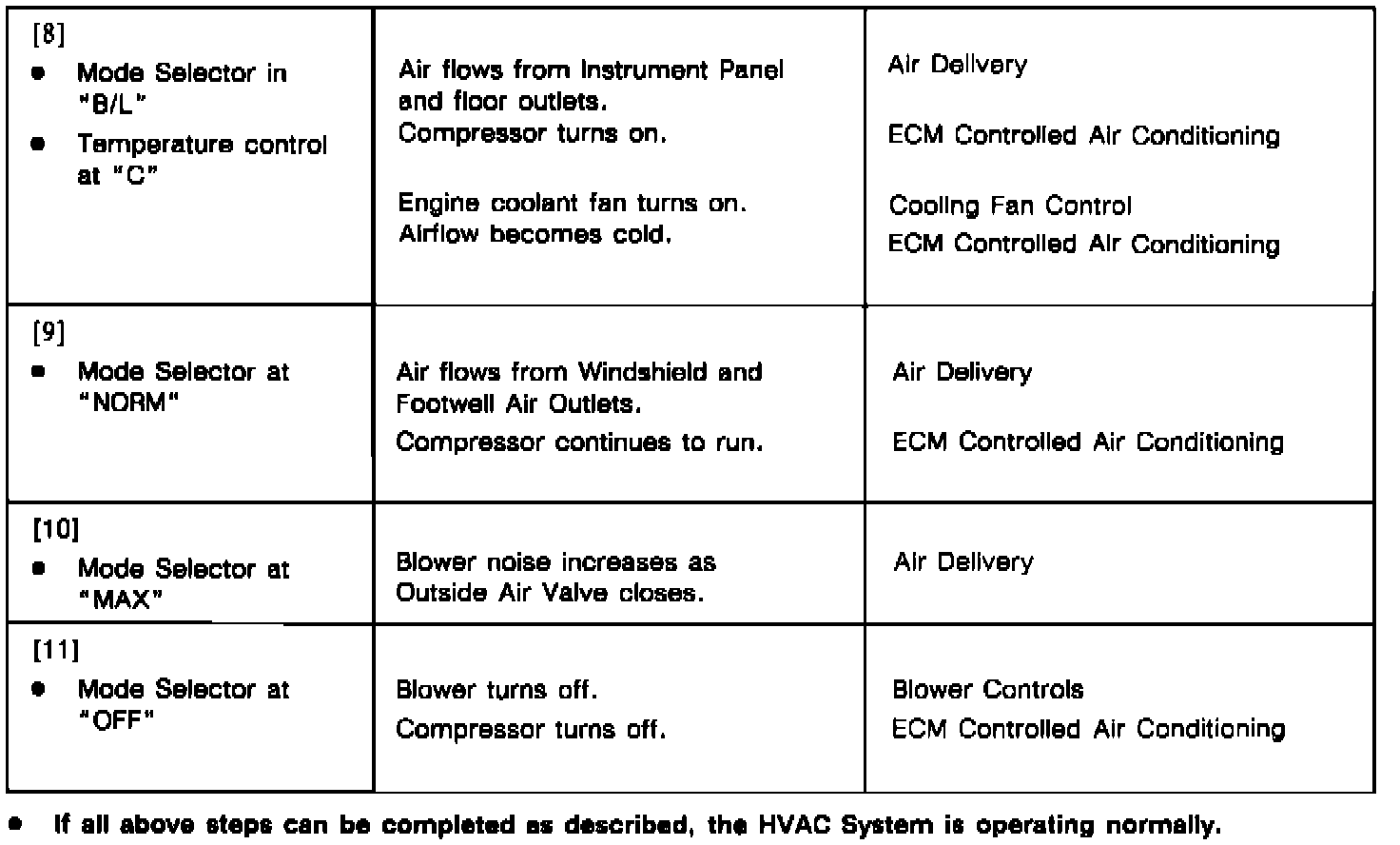

System Check

HVAC System Check:



HVAC System Check:
