Skylark V6-204 3.3L VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>

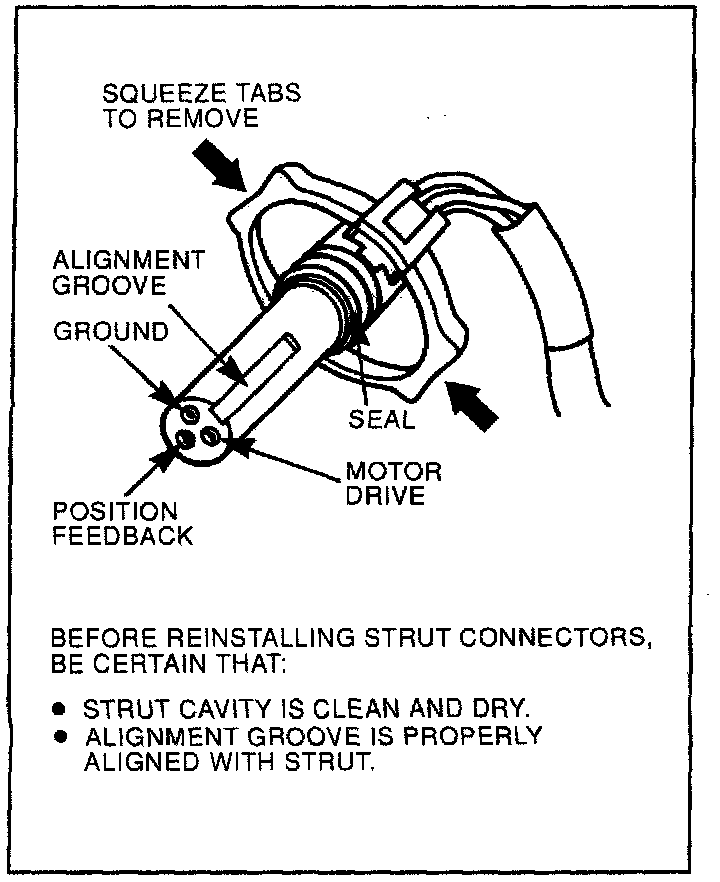

CCR Strut Connector
CCR Strut Connector
