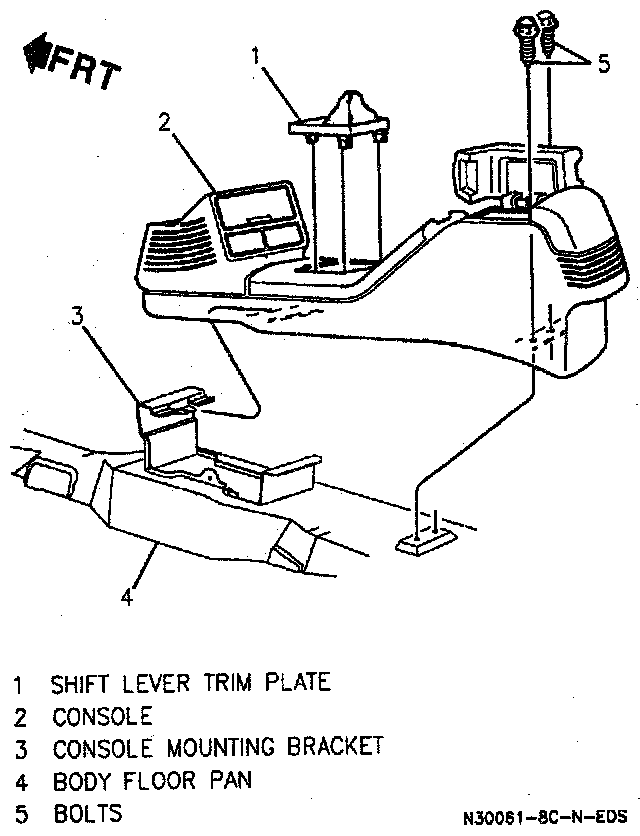

Console

Console Trim:

Remove or Disconnect

1. Shift lever handle.
2. Console trim plate.
3. Console compartment.
4. Screws at rear compartment.
5. Pull console rearward to gain access to electrical connectors.
6. Harness connectors.
7. Console.

Install or Connect

1. Console to body pan.
2. Harness connectors.
3. Slide console forward to engage brackets.
4. Screws at rear compartment.

Tighten
^ Screws to 7 N.m (57 lbs. in.).

5. Console compartment.
6. Console trim plate.
7. Shift lever handle.
