Engine Mount Strut - Torque Specifications Revised

Bulletin: 93-6-8

Date: Jan. '93

Ref. No.: 93-86-6

Corp. Ref. No.: 236117

SUBJECT:
SERVICE MANUAL UPDATE - TORQUE SPECIFICATION REVISION
(NEW ARTWORK) FOR LOWER ENGINE MOUNT STRUT

MODELS AFFECTED:
1992-93 SKYLARKS WITH 2.3L (VIN 3-RPO L40)

This is a service manual update to Sections 6A6 and 6A7.

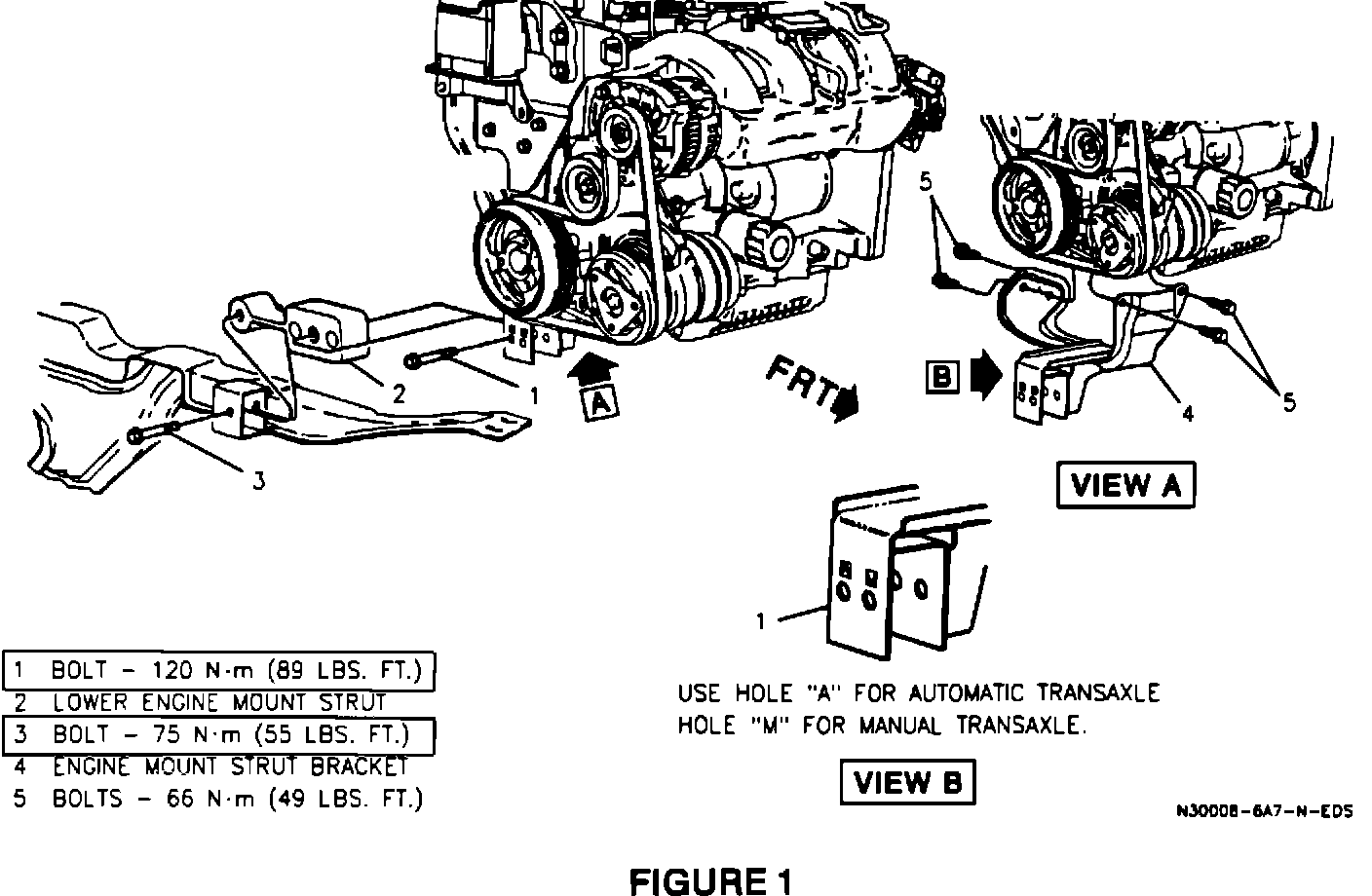

The torque specification for the lower engine mount strut has been revised. Refer to the artwork on the following pages:

1992 Skylark, Page 6A6-10, Figure 11 - Update with Figure 1
Page 6A7-11, Figure 12 - Update with Figure 1

1993 Skylark, Page 6A7-11, Figure 12 - Update with Figure 1.
