Home
>>
Buick
>>
1993
>>
Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Ignition Controls
Ignition Controls

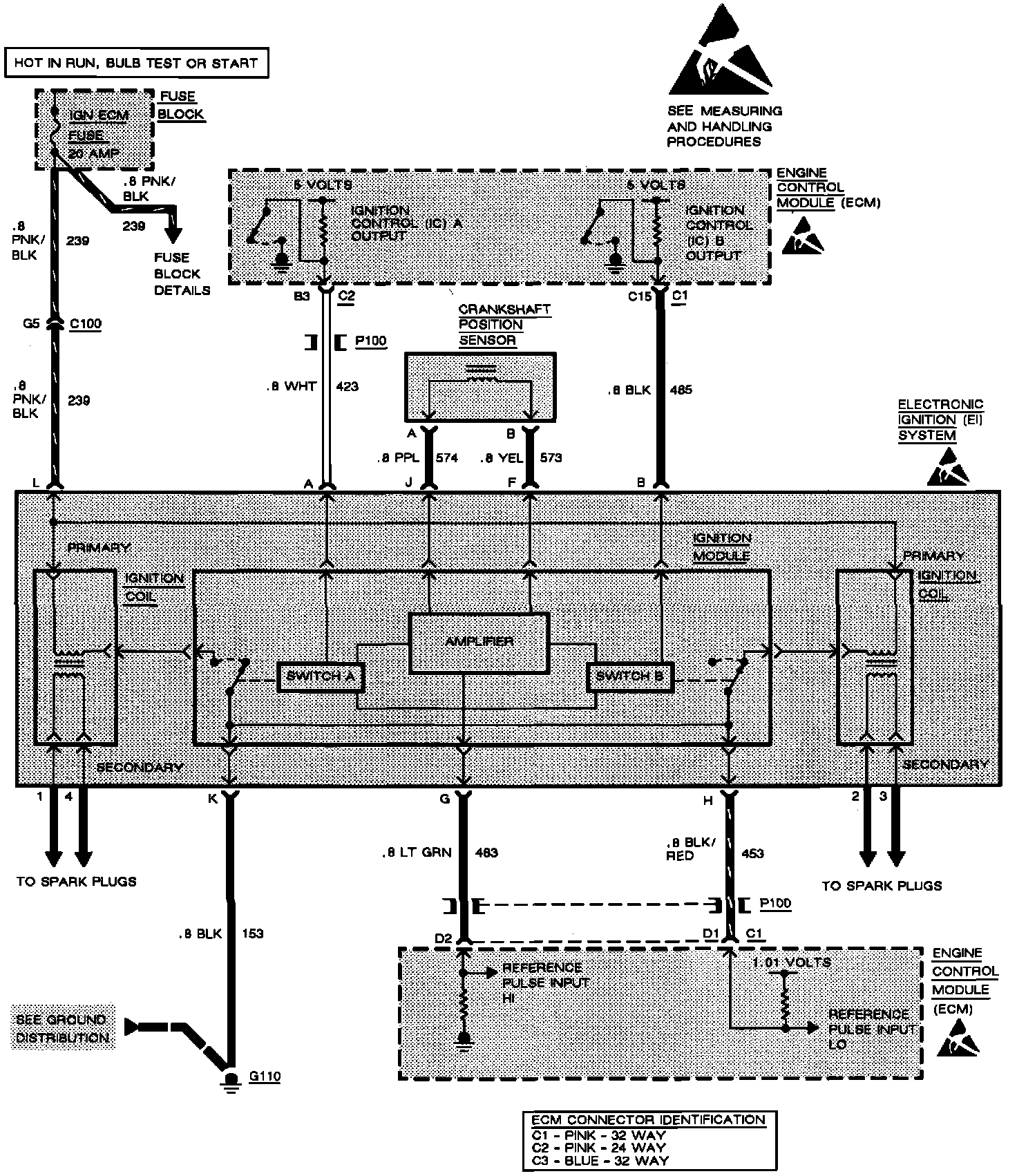

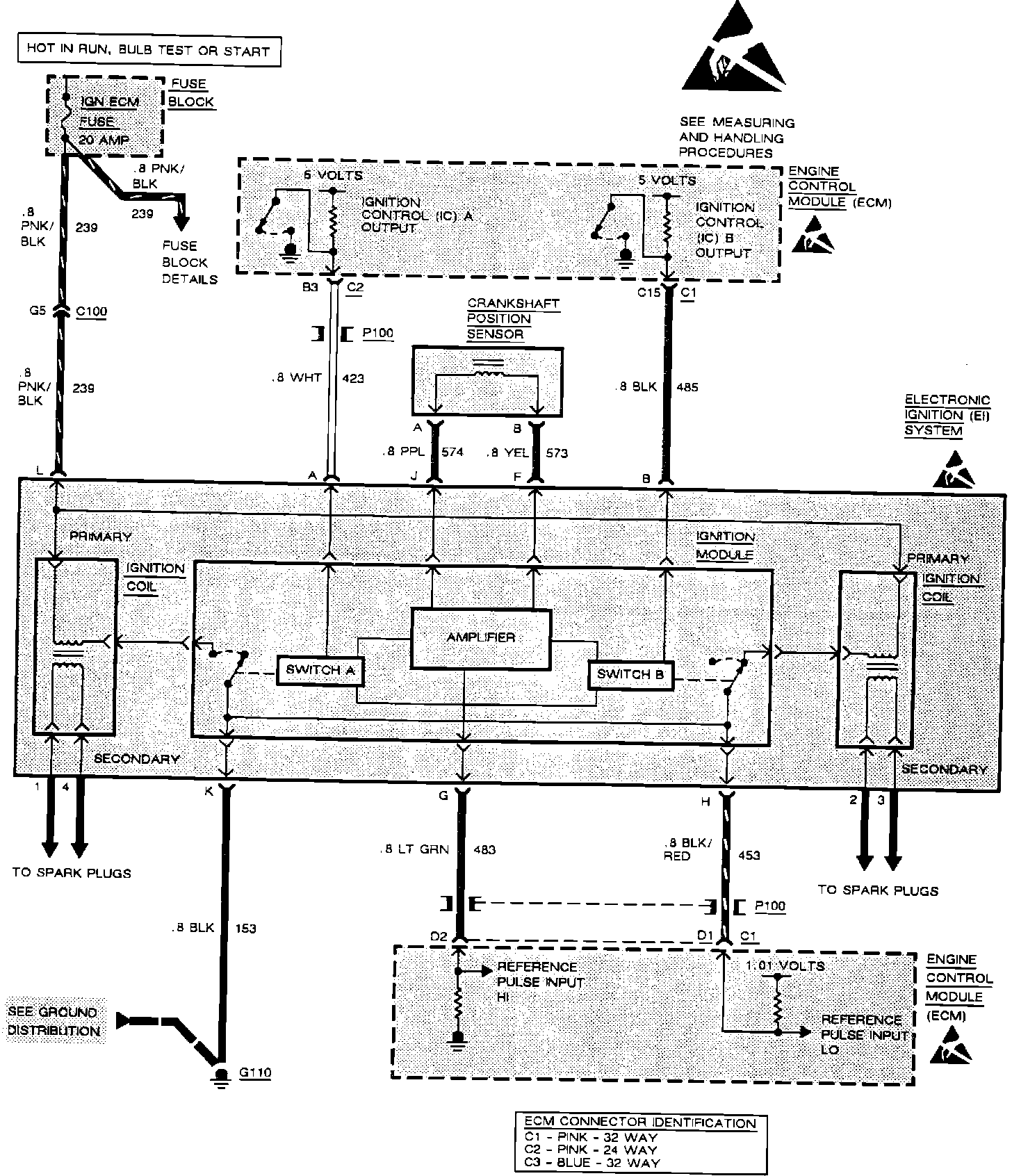

Ignition 93 N Body 2.3L:
MFI: Ignition:
