Instrument Cluster Connector
>>
C2 Connector
C2 Connector

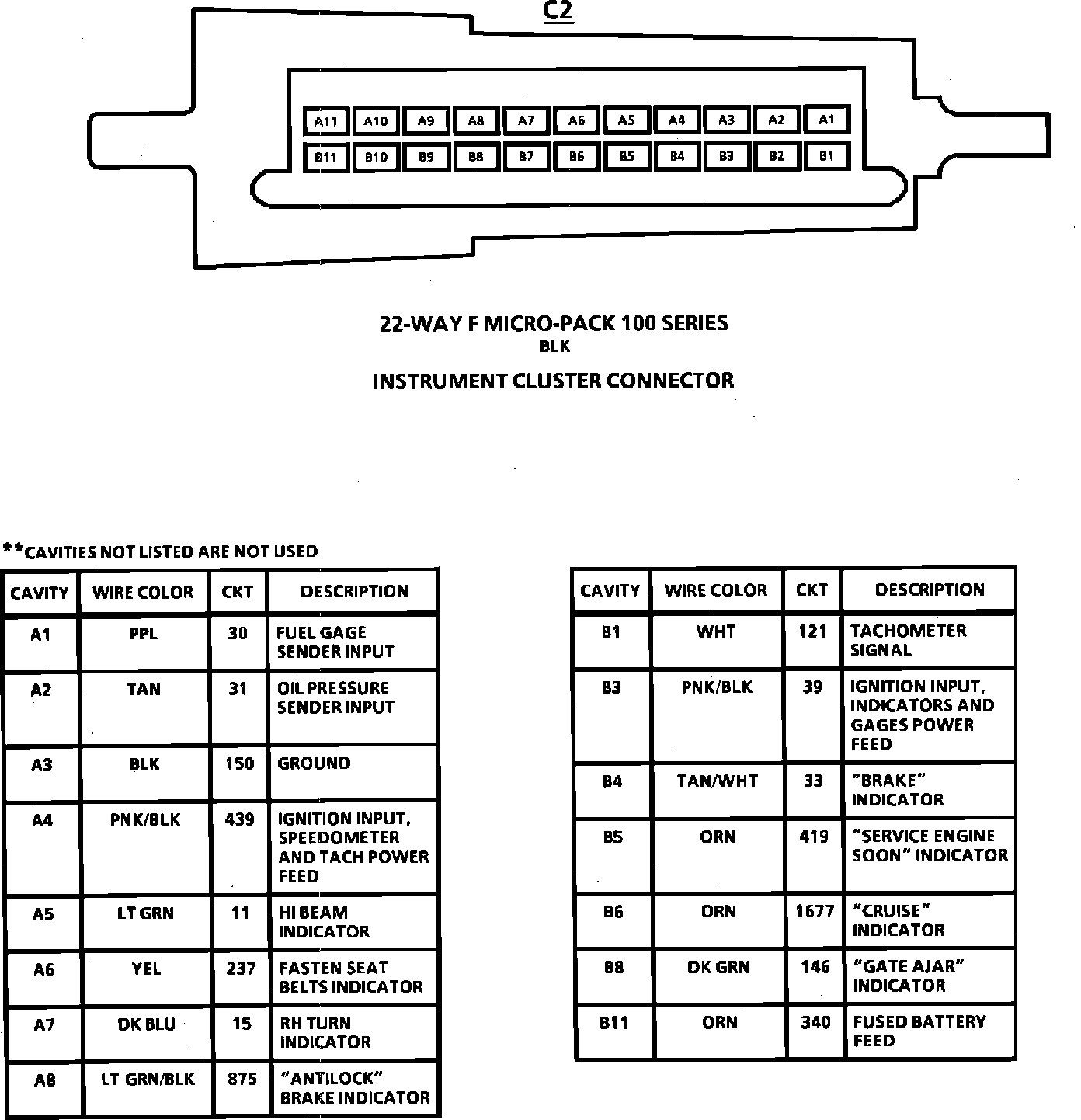

Instrument Panel Cluster C2 Connector Face:
