Fuel Rail: Locations

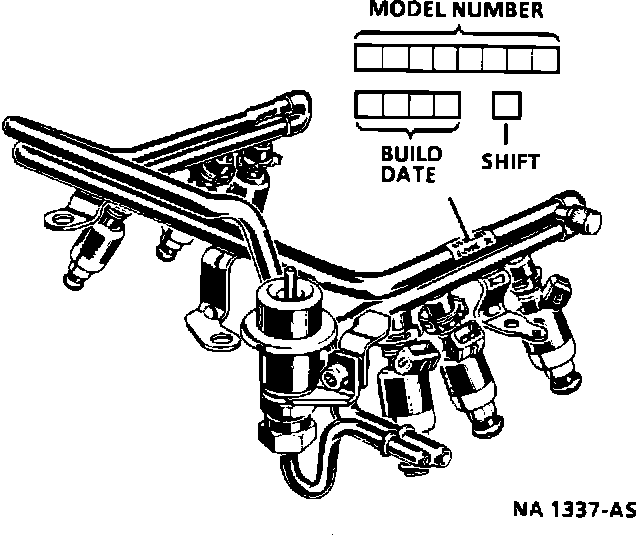

Fuel Rail Identification:





FUEL RAIL PART NUMBER IDENTIFICATION

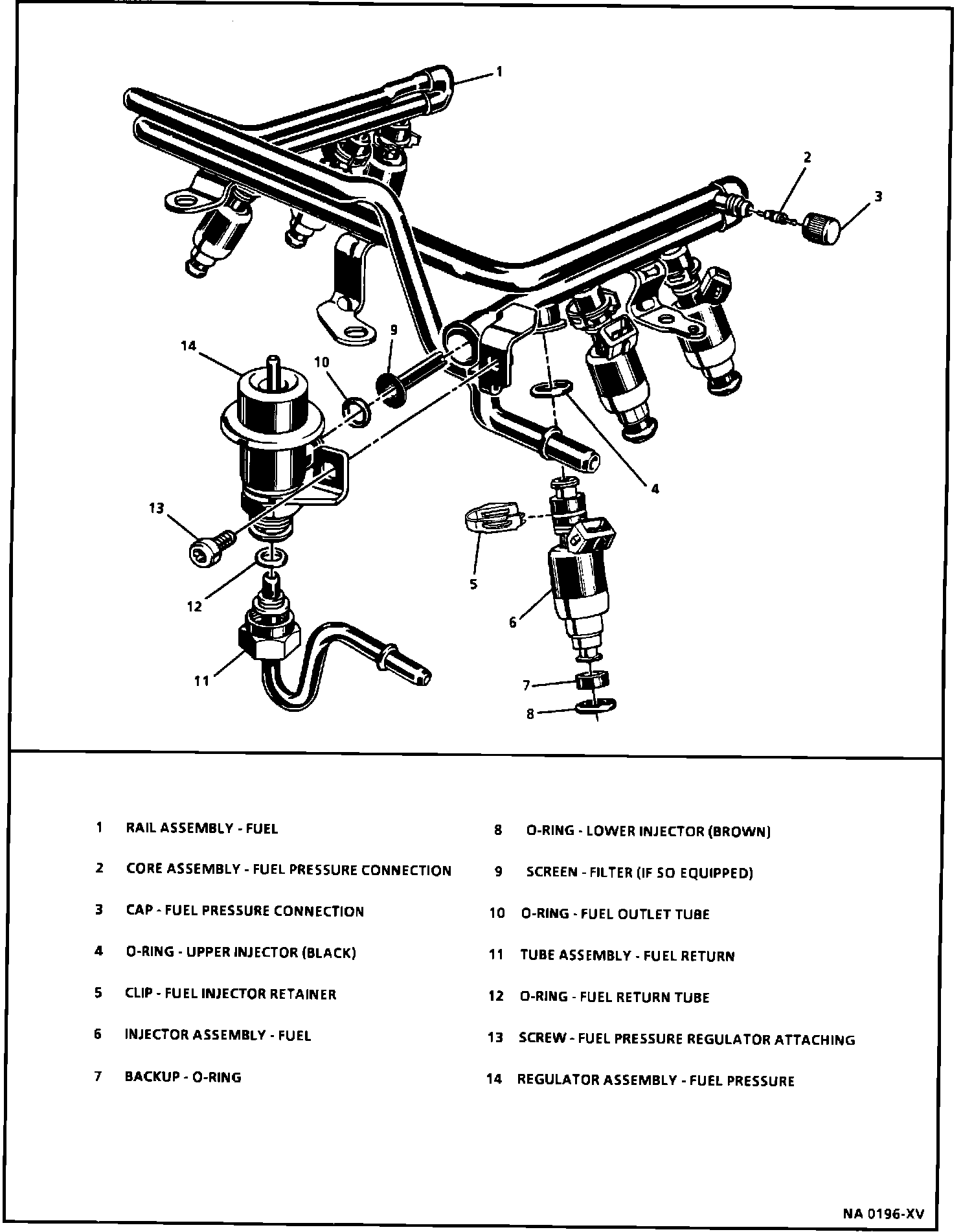

Fuel Rail Assembly - Exploded View:





FUEL RAIL AND INJECTOR ASSEMBLY
