Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Fuel Injector & Control
Fuel Injector & Control

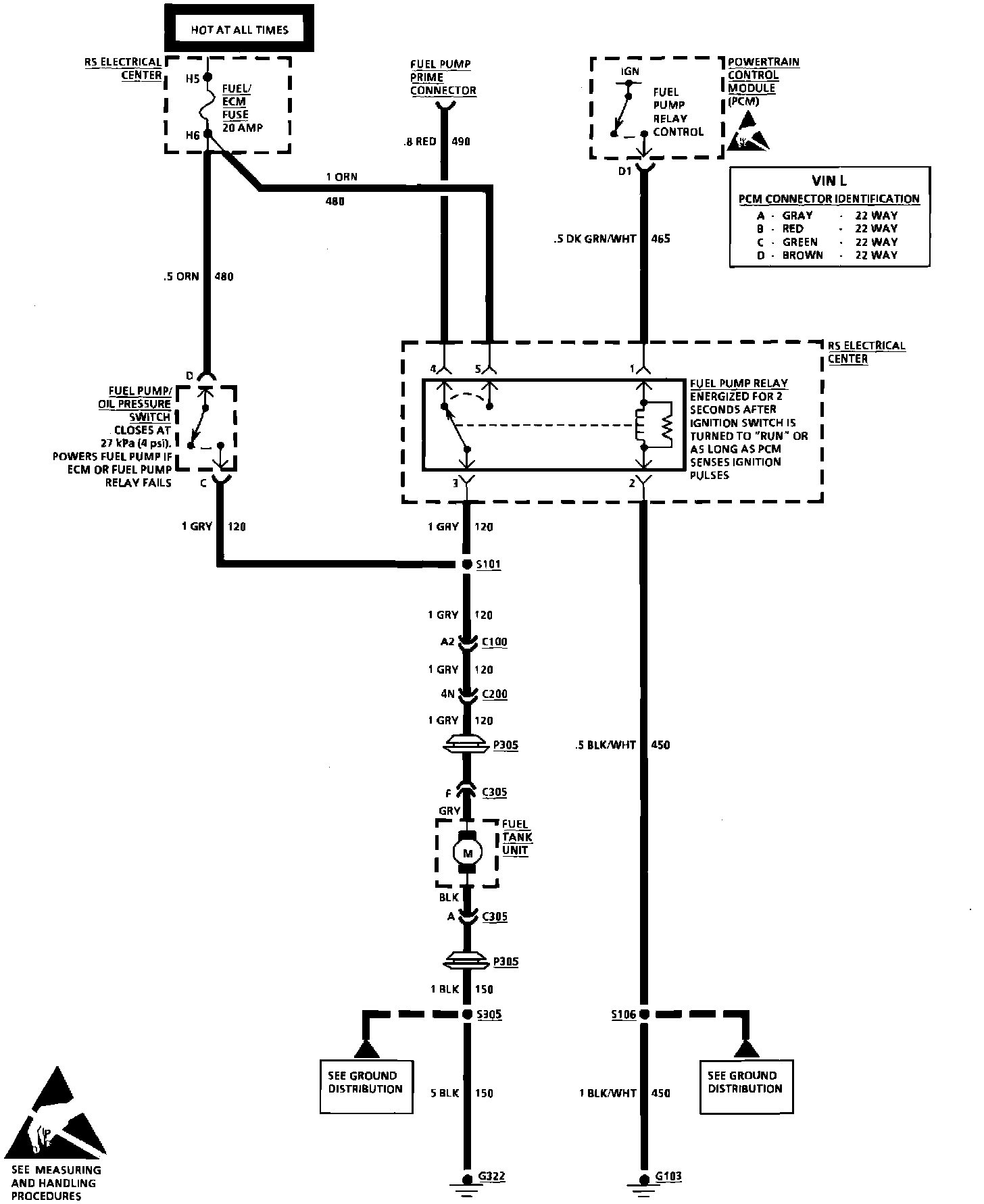

Wiring Diagram:
Wiring Diagram:
