Home
>>
Buick
>>
1993
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

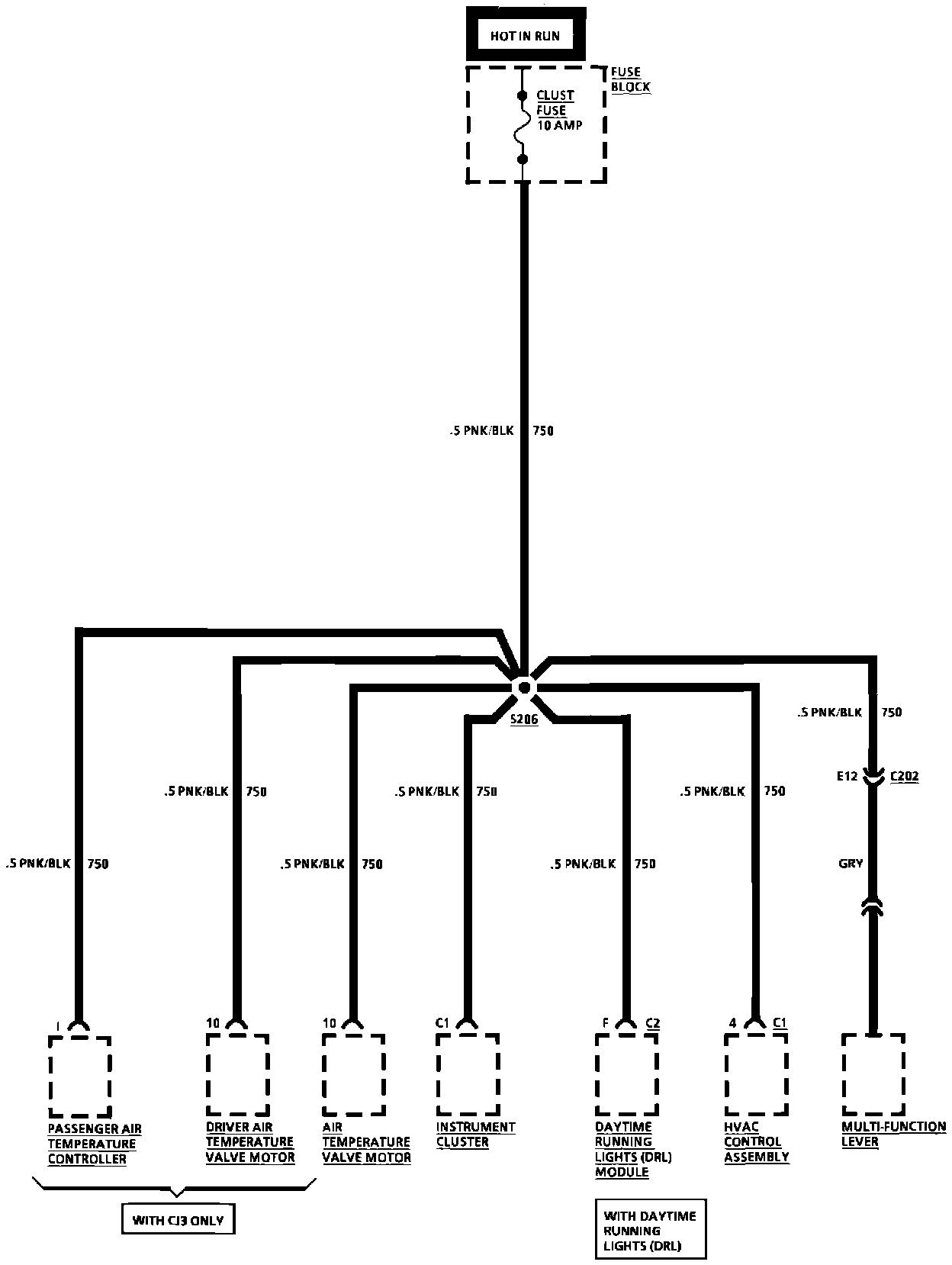

Cluster Fuse
Cluster Fuse
Wiring Diagram:
