Home
>>
Buick
>>
1993
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
Engine Data Sensors
Engine Data Sensors

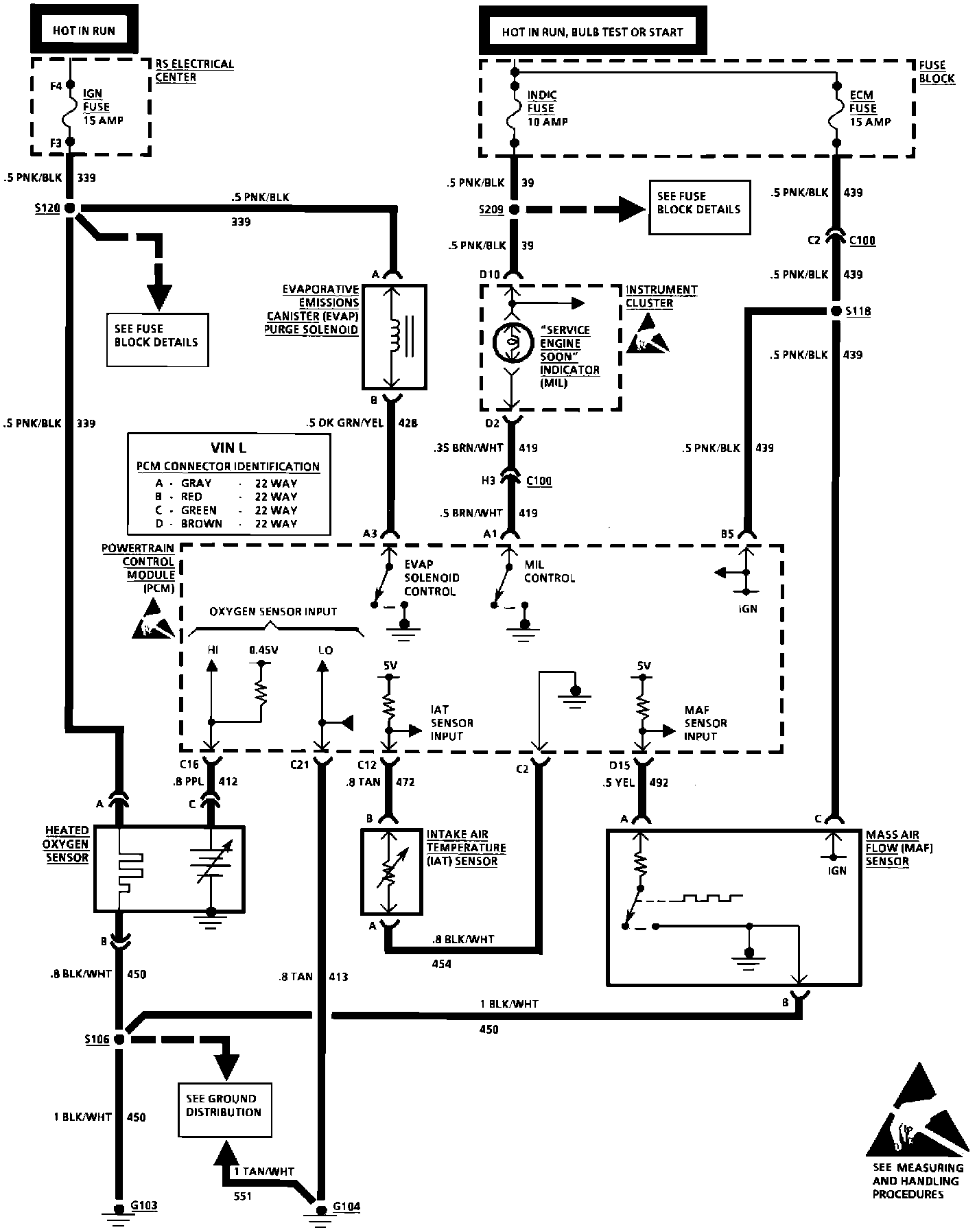

Wiring Diagram:

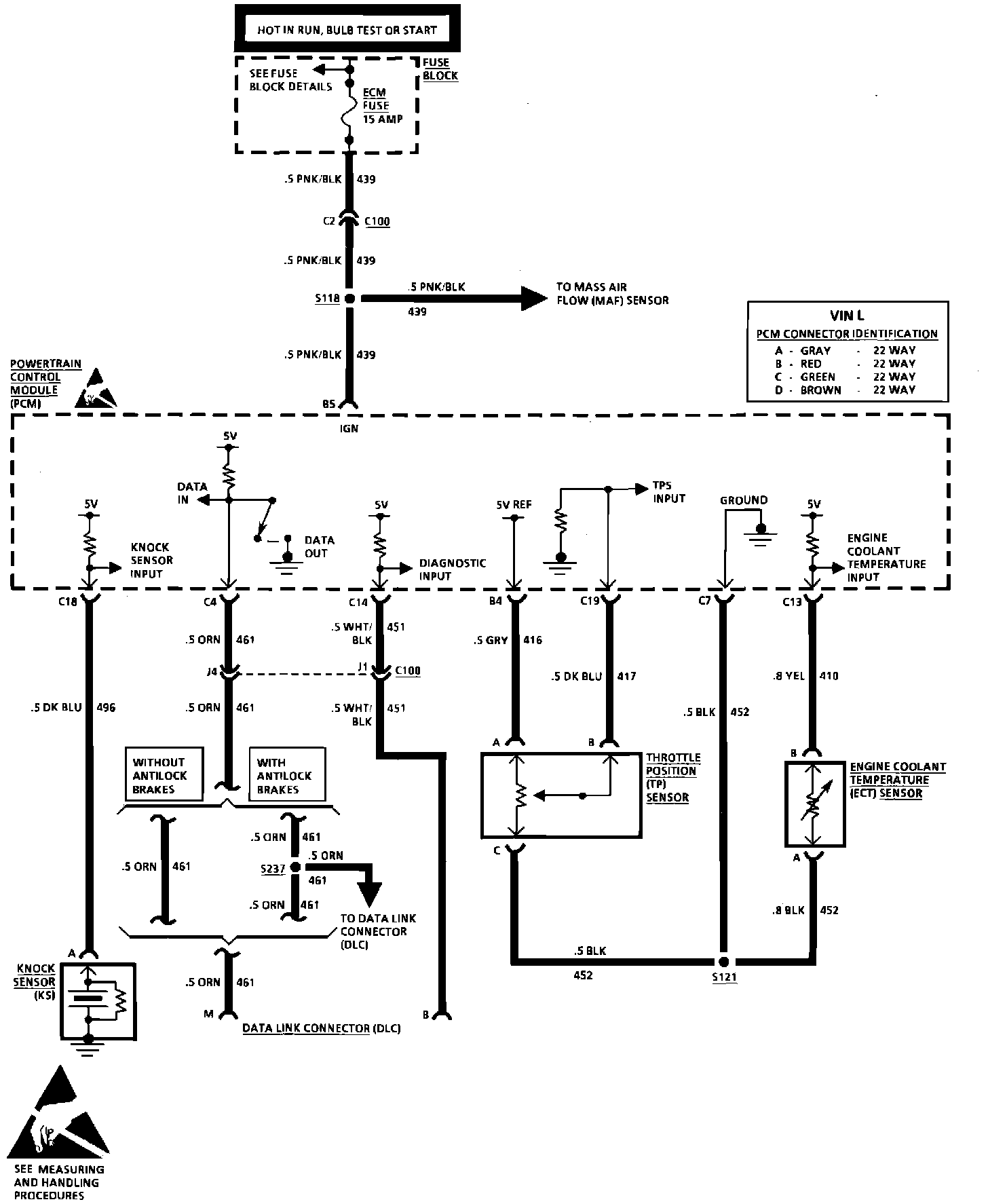

Wiring Diagram:
