Home
>>
Buick
>>
1993
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Base Cluster
Base Cluster

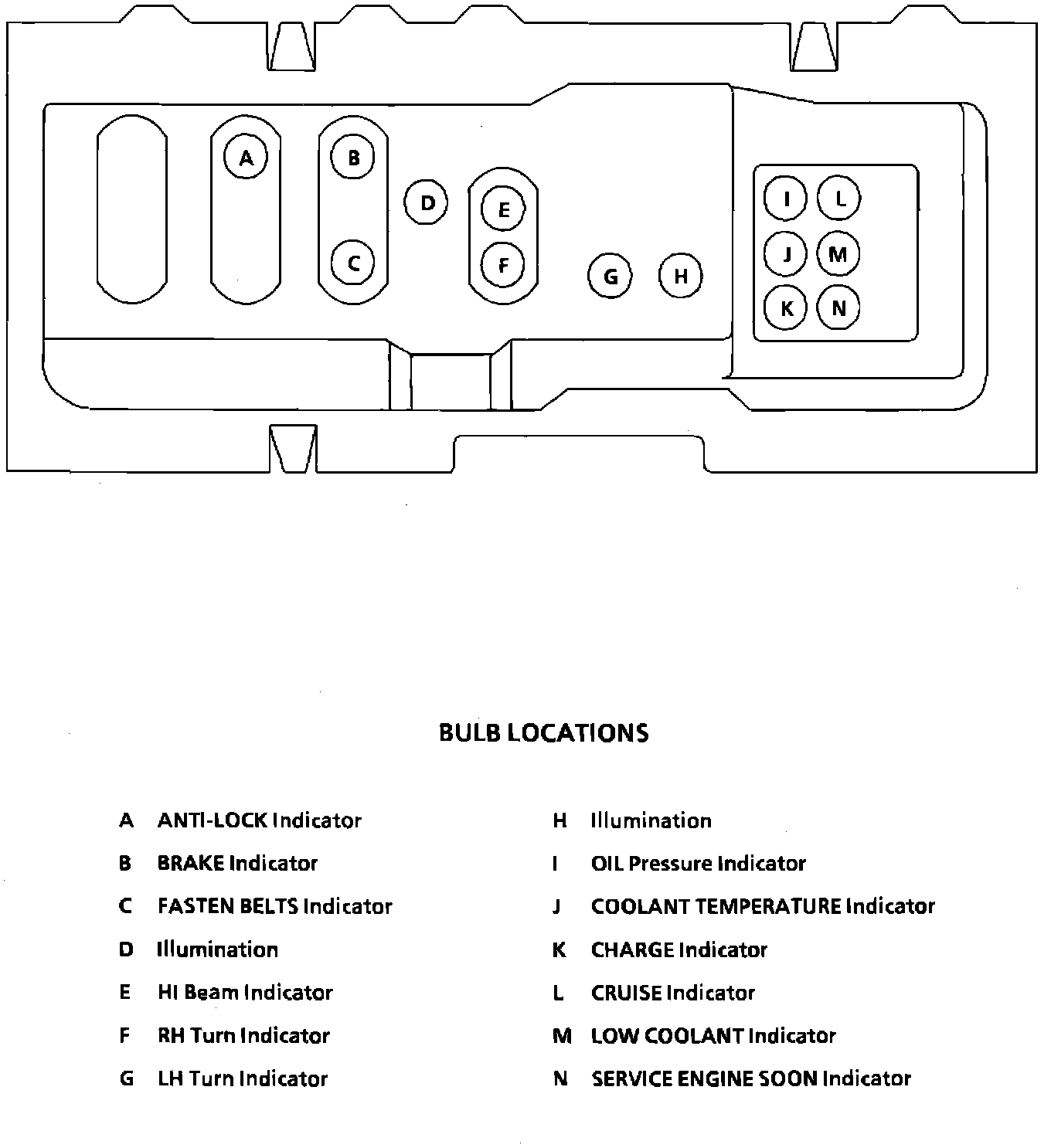

Bulb Location:

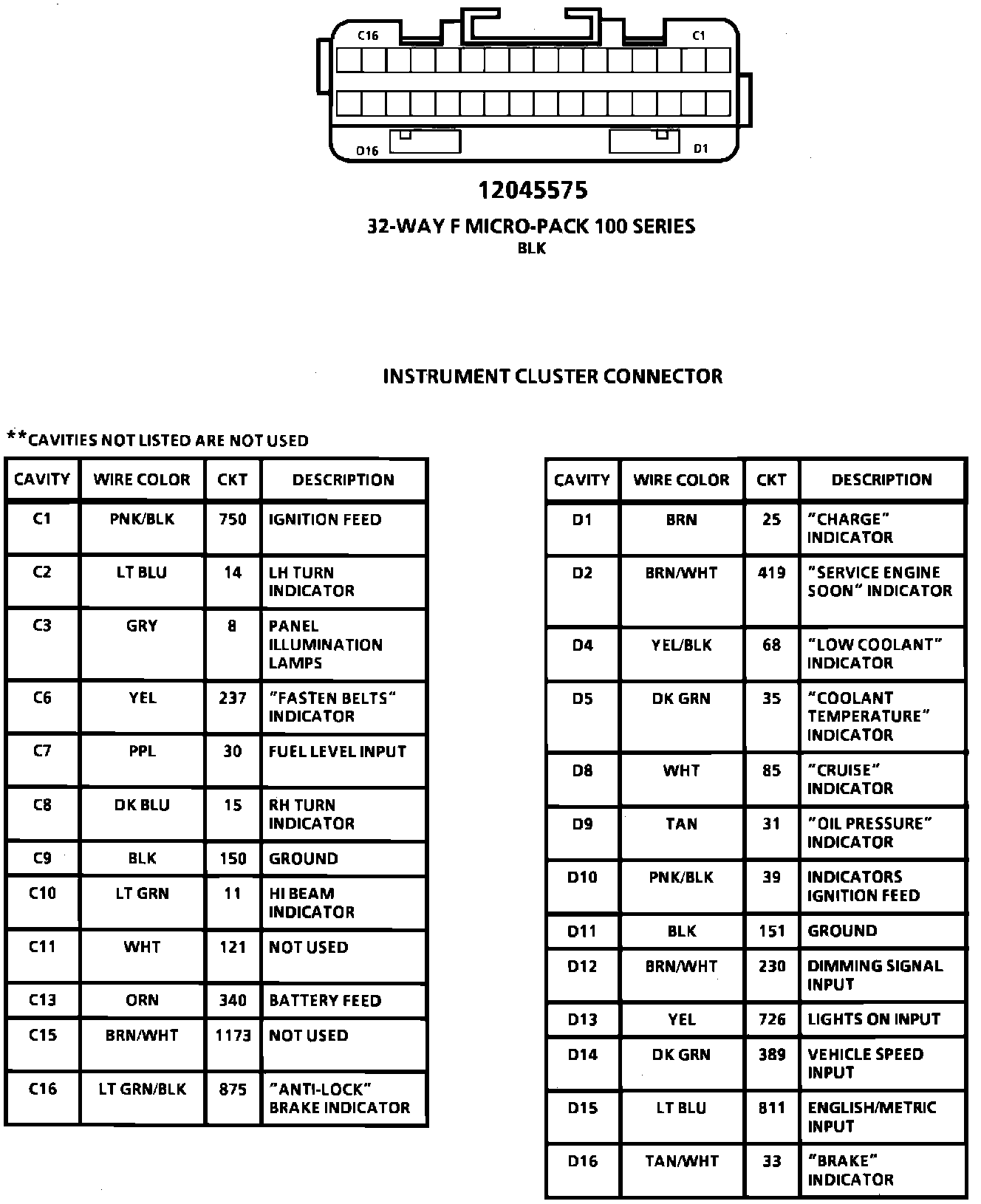

Connector:
