Home
>>
Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
With Sequential Fuel Injection (SFI)
>>
Gen 11 S
>>
Auto Transaxle
Auto Transaxle

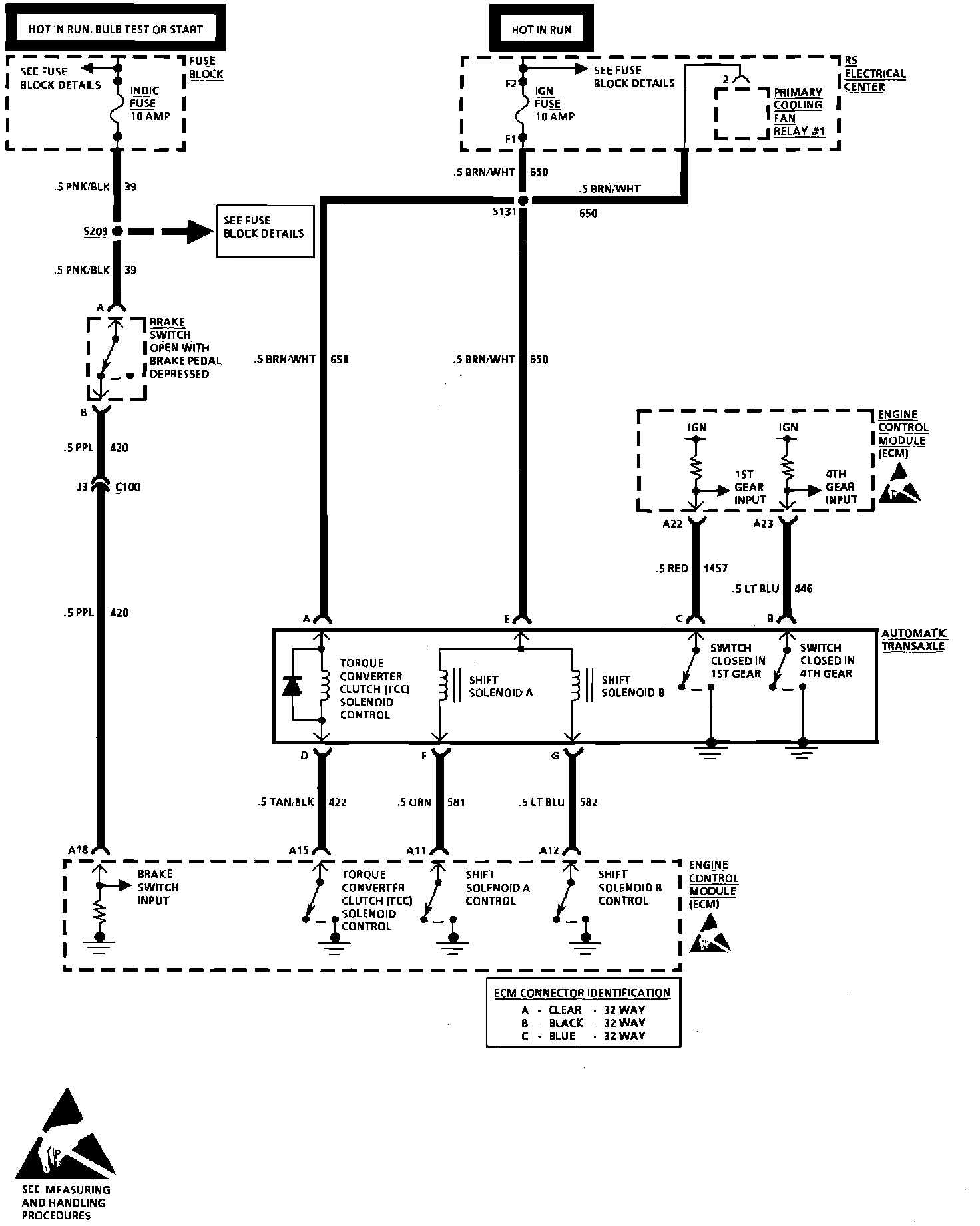

GEN-II S: A/T Controls:
