Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

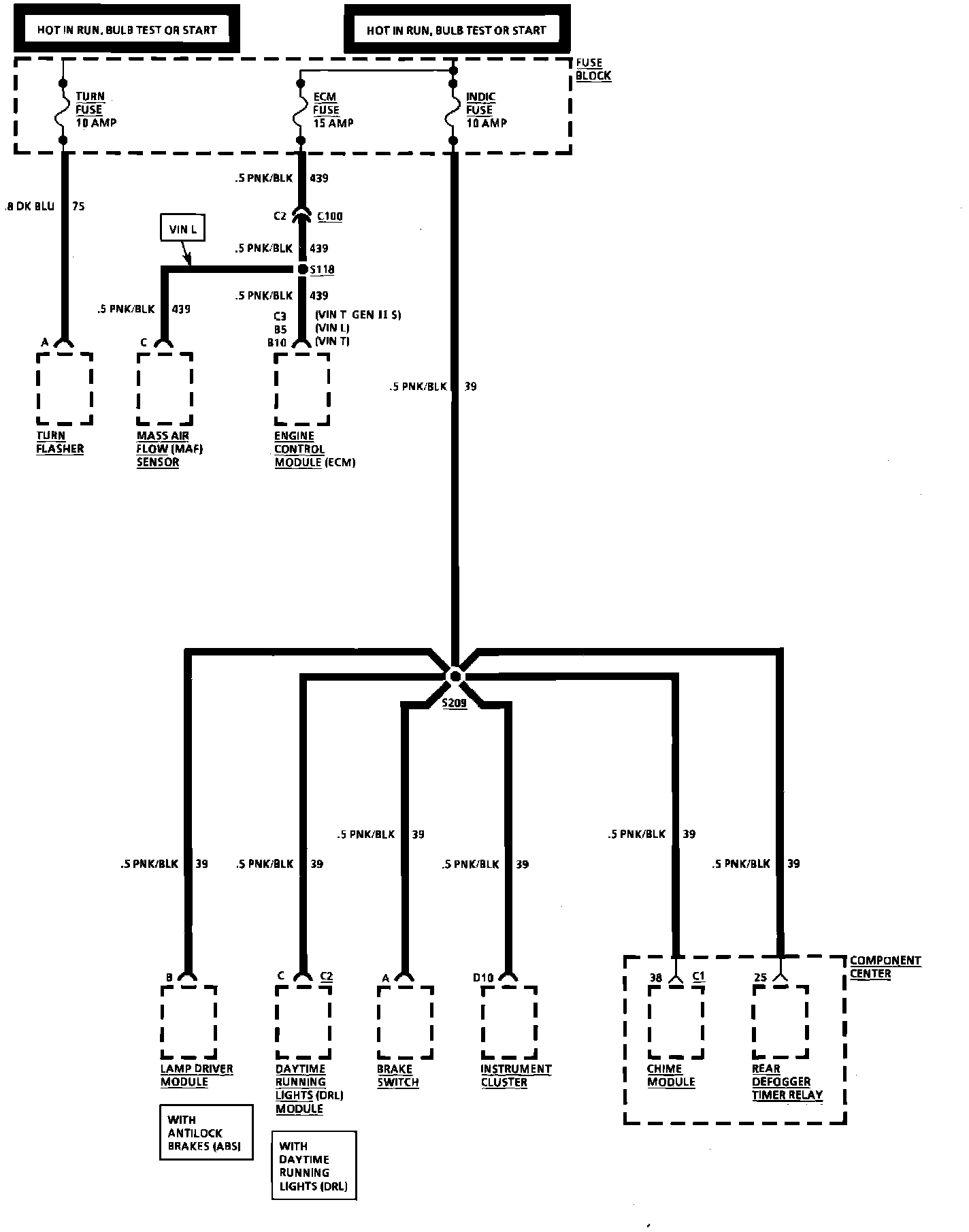

Turn, ECM and Indic Fuses
Turn, ECM and Indic Fuses
Wiring Diagram:
