Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G101 and G102
G101 and G102

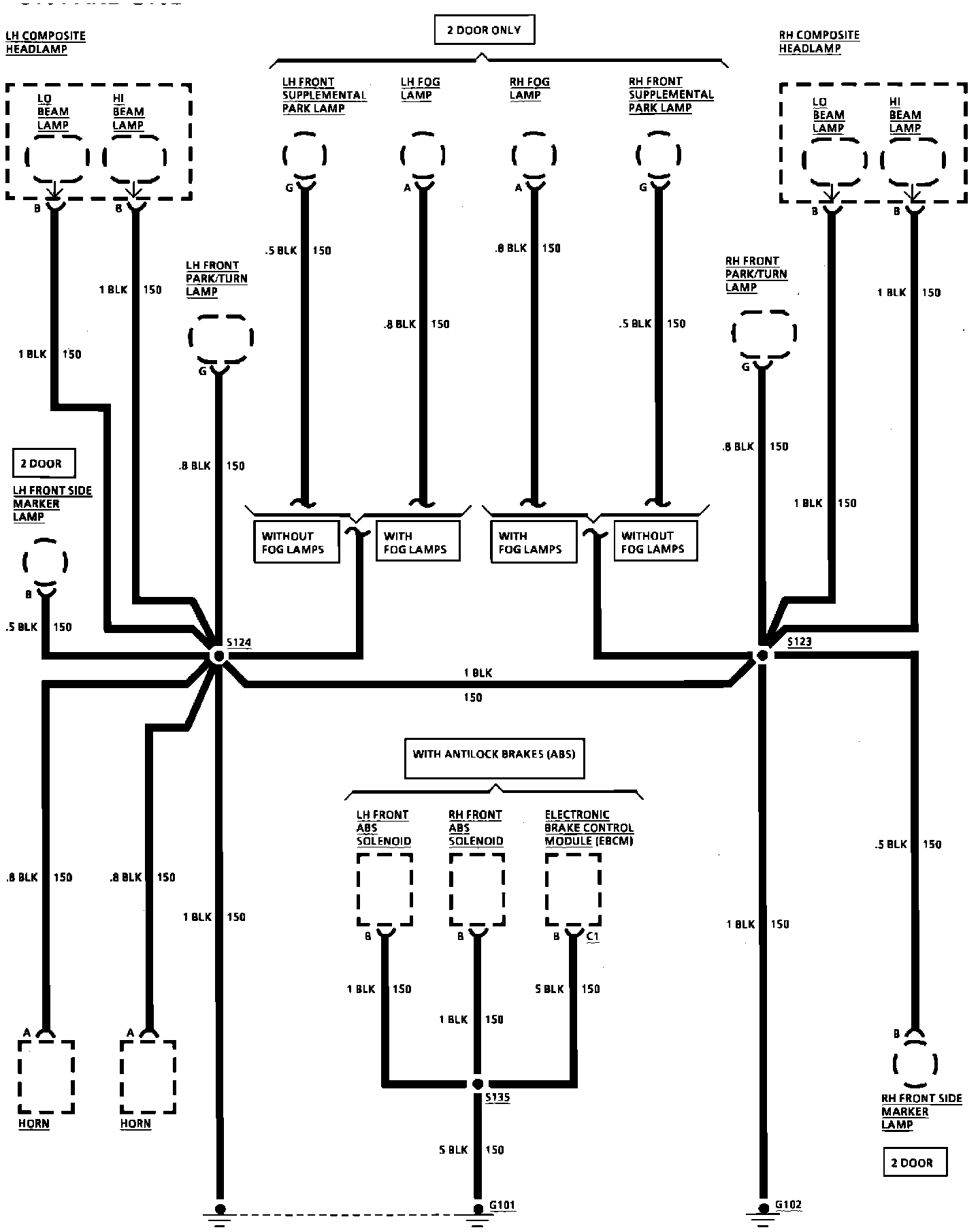

Wiring Diagram:
