Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
>>
HVAC Control Assembly
HVAC Control Assembly

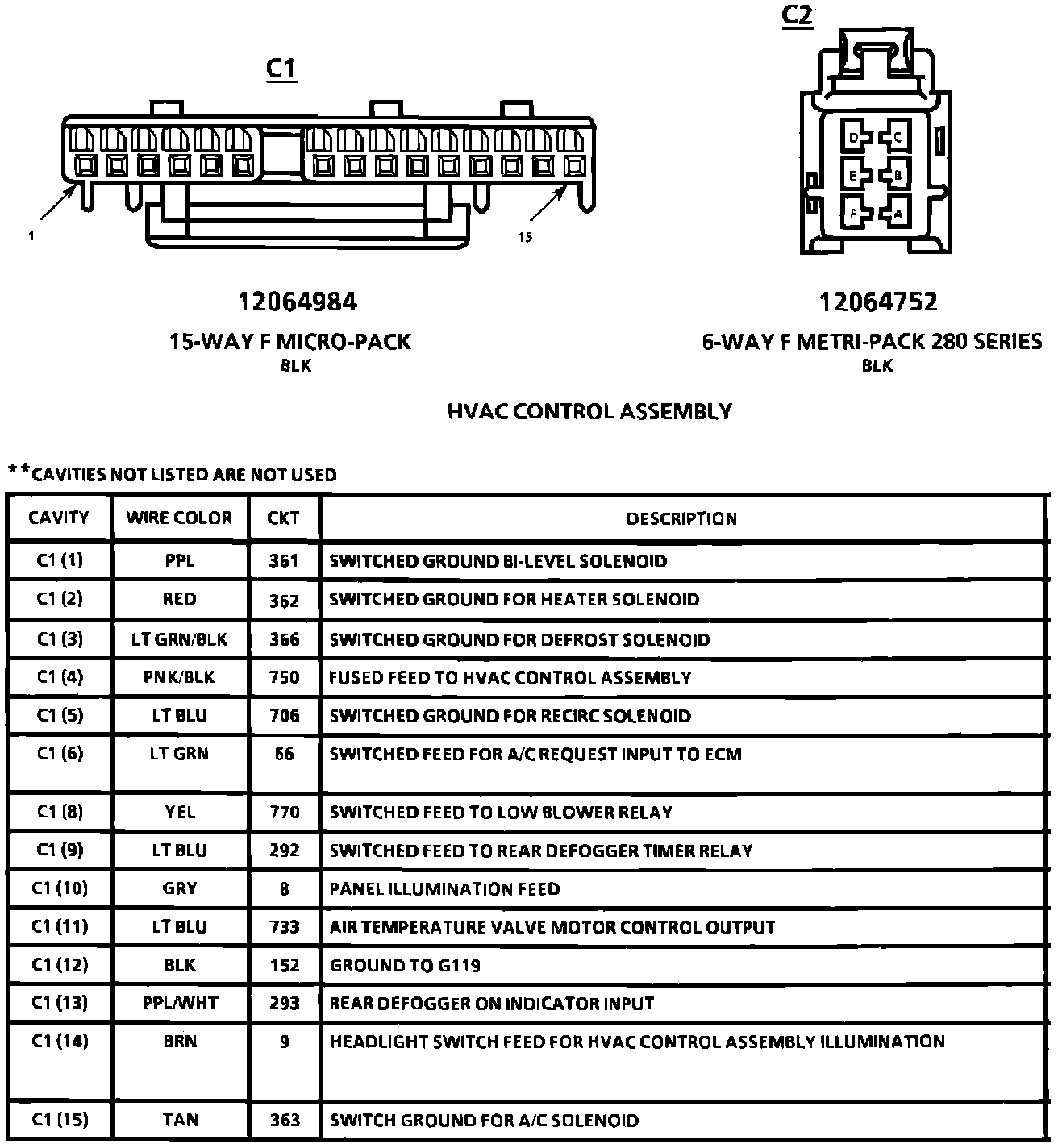

HVAC Control Assembly Connectors:
