Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Component Center
Component Center

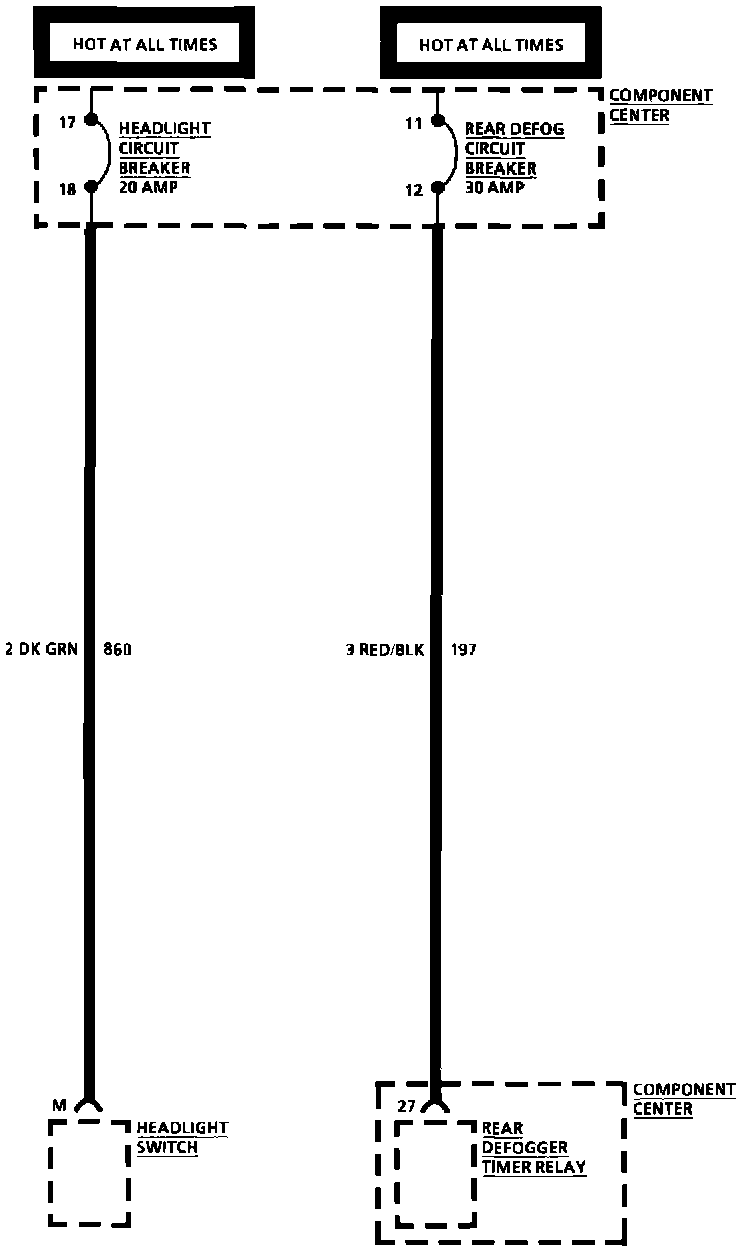

Wiring Diagram:
