Power Distribution

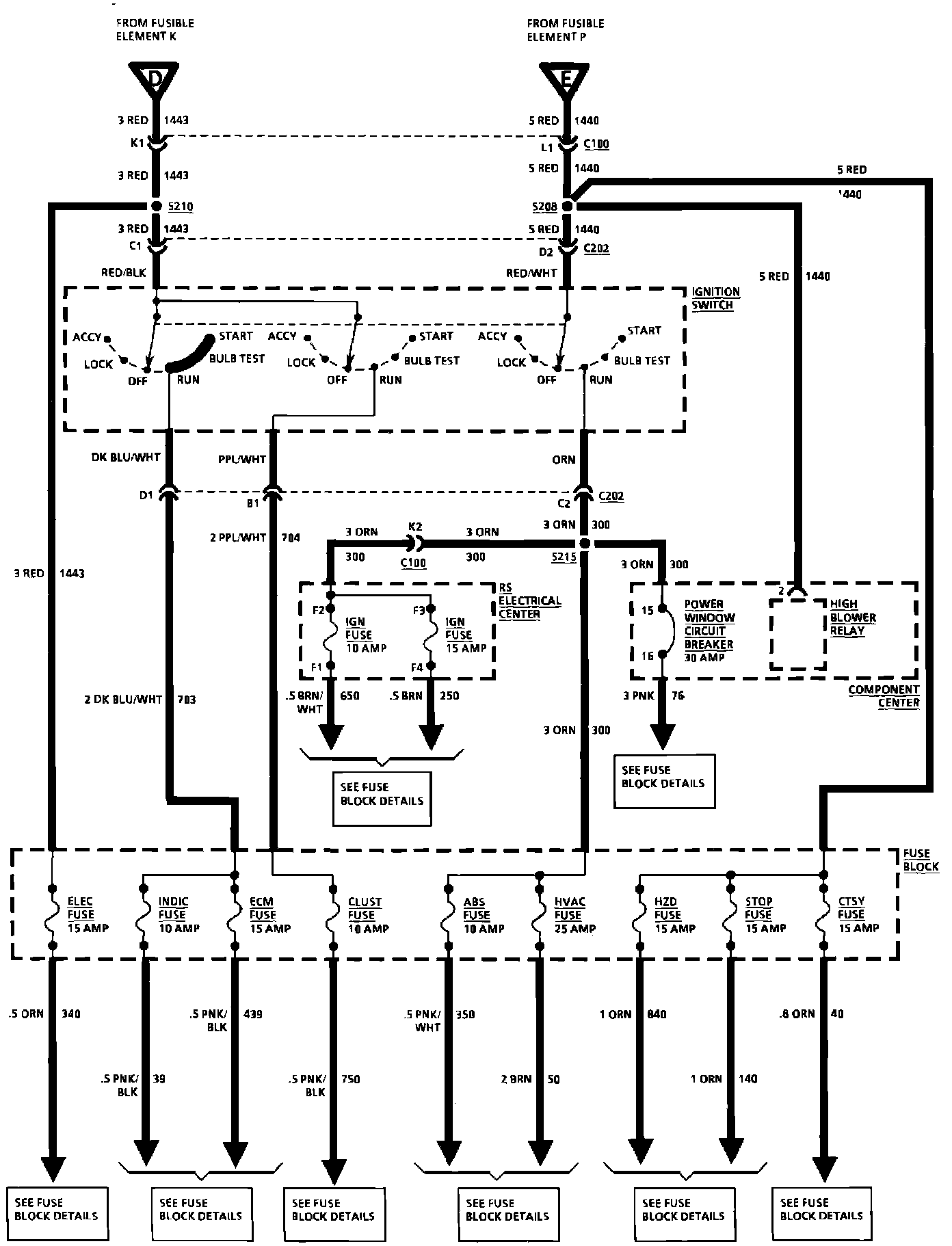

Wiring Diagram:

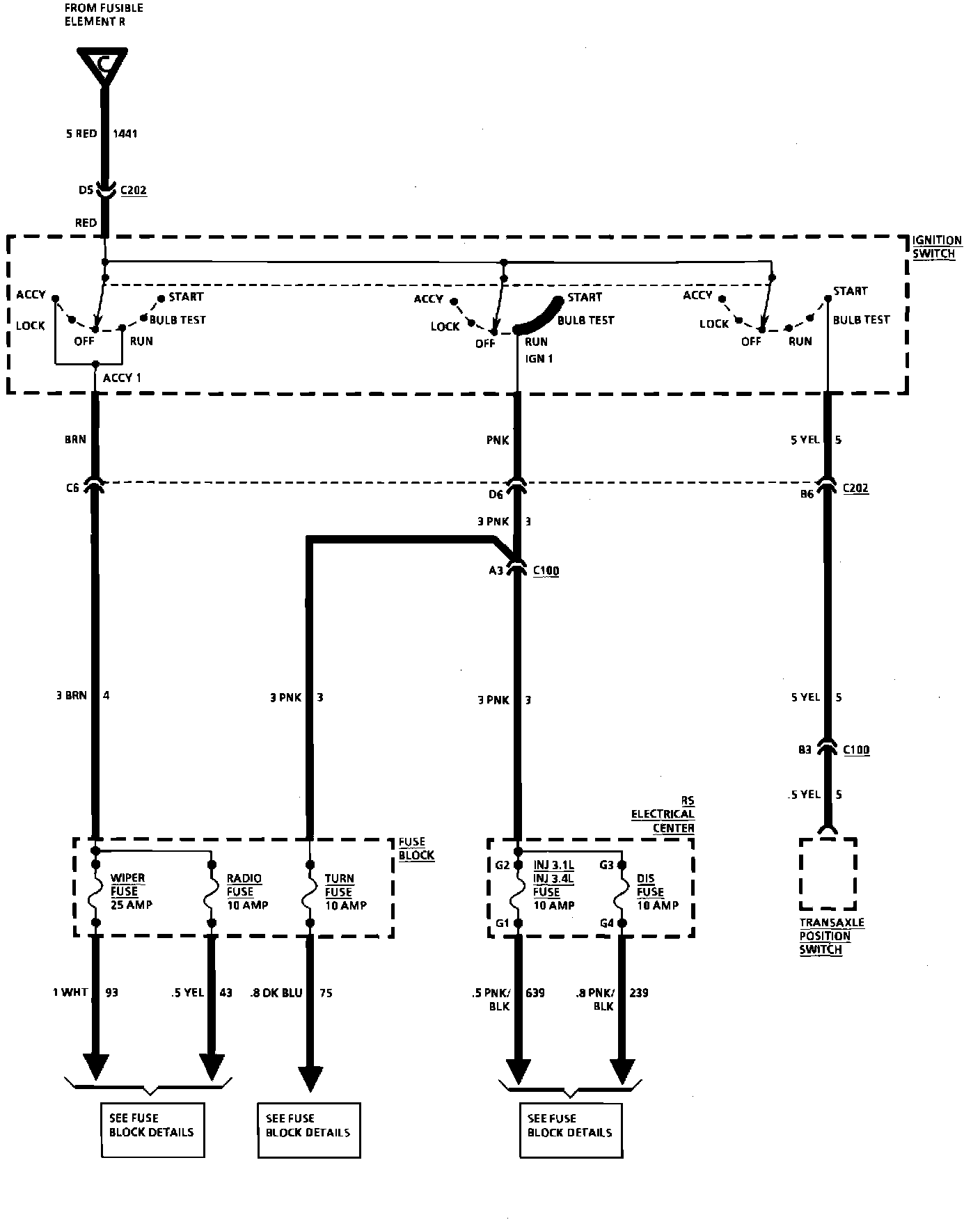

Wiring Diagram:



Wiring Diagram:



Wiring Diagram:



Wiring Diagram:
