Home >> Buick >> 1993 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> With Sequential Fuel Injection (SFI) >> Gen 11 S >> Idle Air Control

Idle Air Control

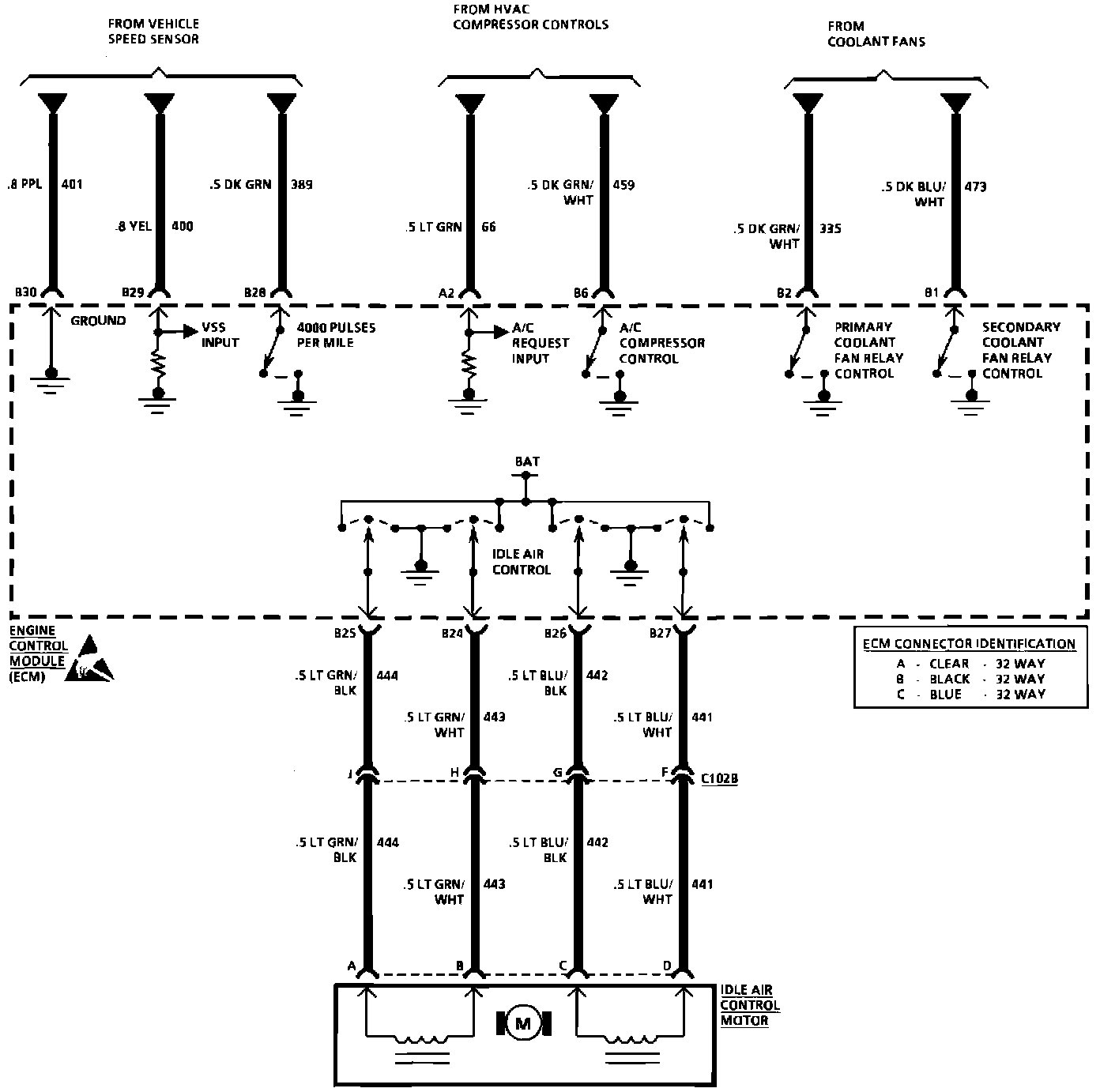

GEN-II S: Idle Air Control:
