Home
>>
Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
With Keyless Entry
With Keyless Entry

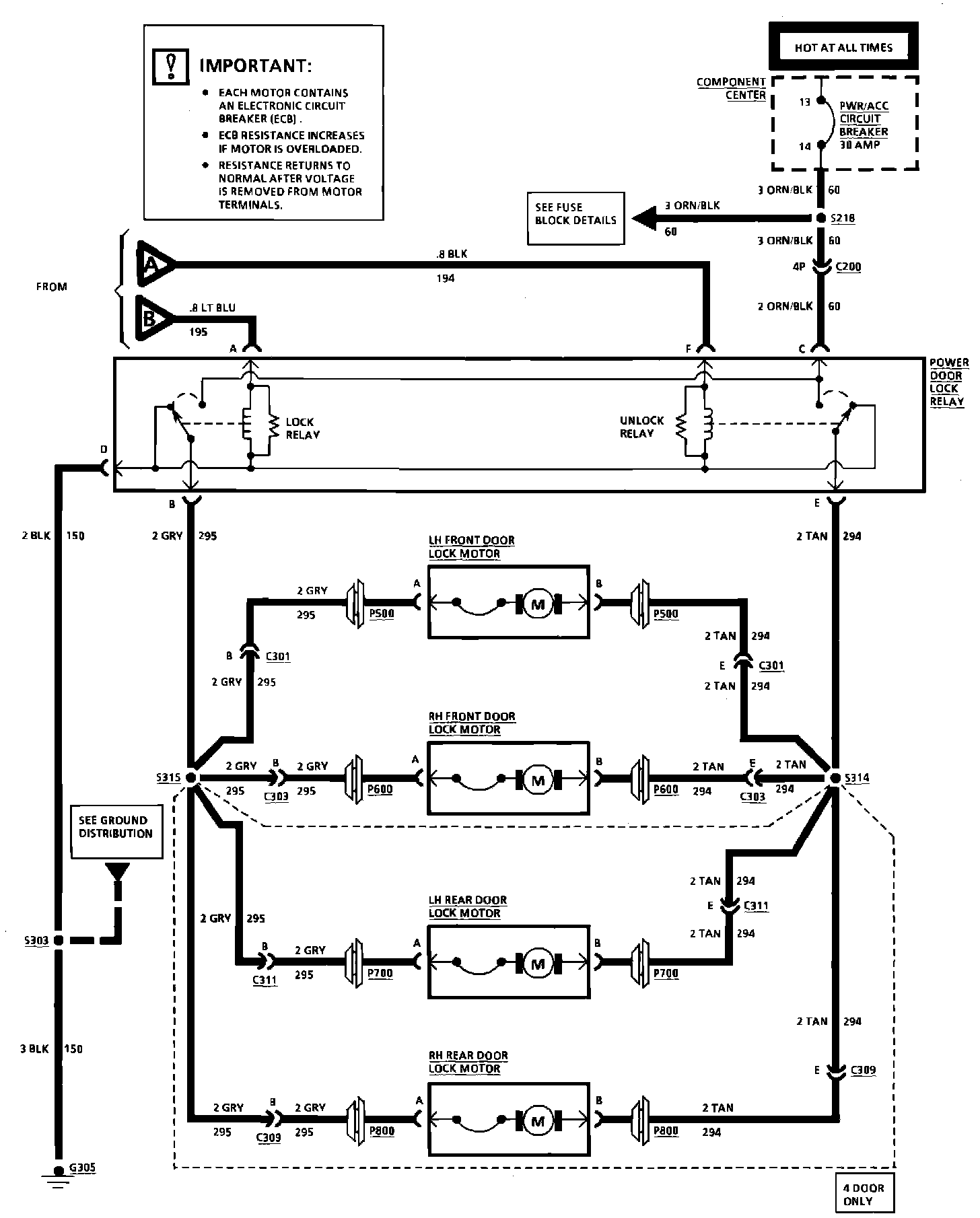

Wiring Diagram:
Wiring Diagram:
Wiring Diagram:
