Home
>>
Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signal Lamp
>>
Turn/Stop/Hazard/Center High Mounted Stop
Turn/Stop/Hazard/Center High Mounted Stop

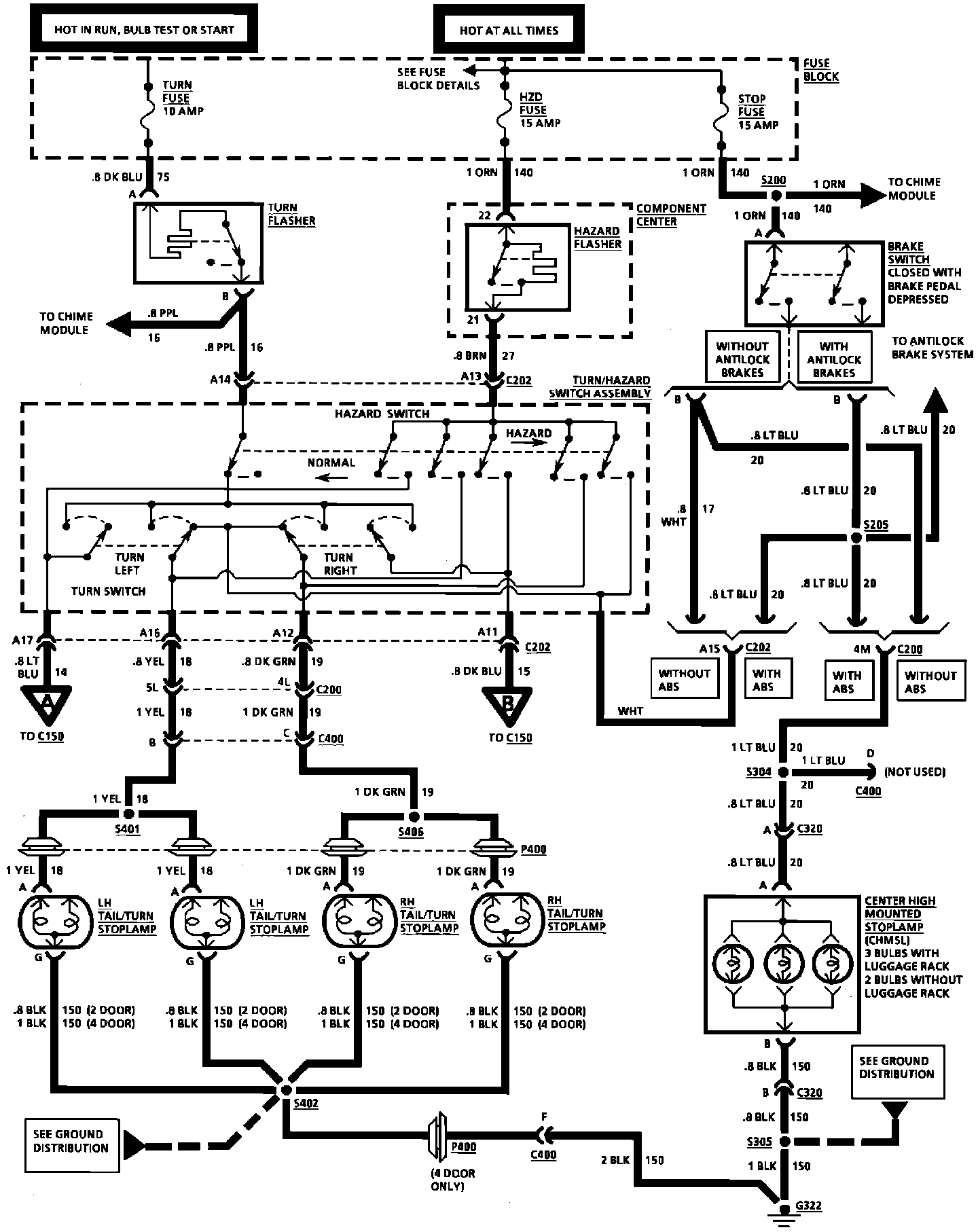

Wiring Diagram:
