Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Base Cluster
>>
Digital
Digital

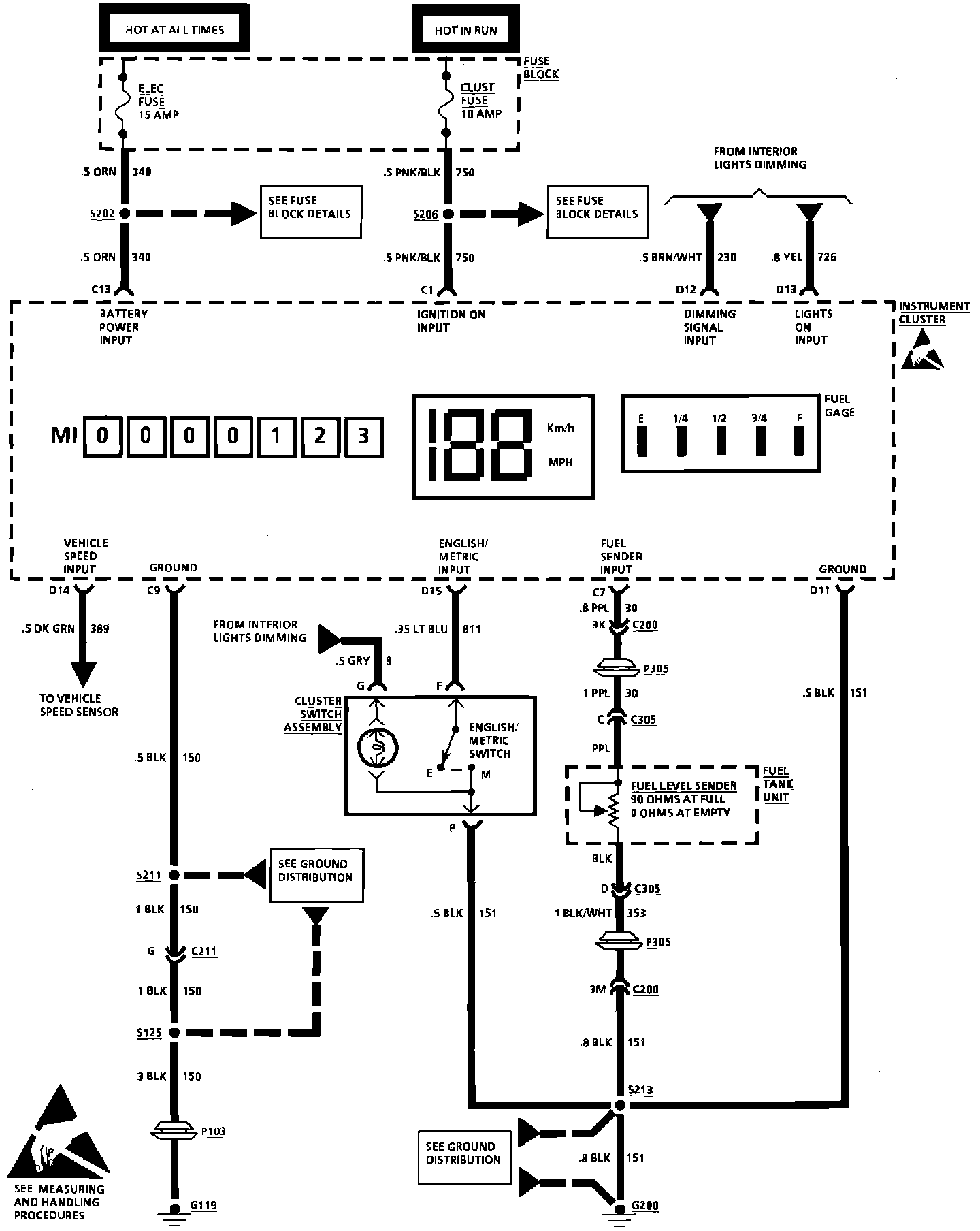

Wiring Diagram:

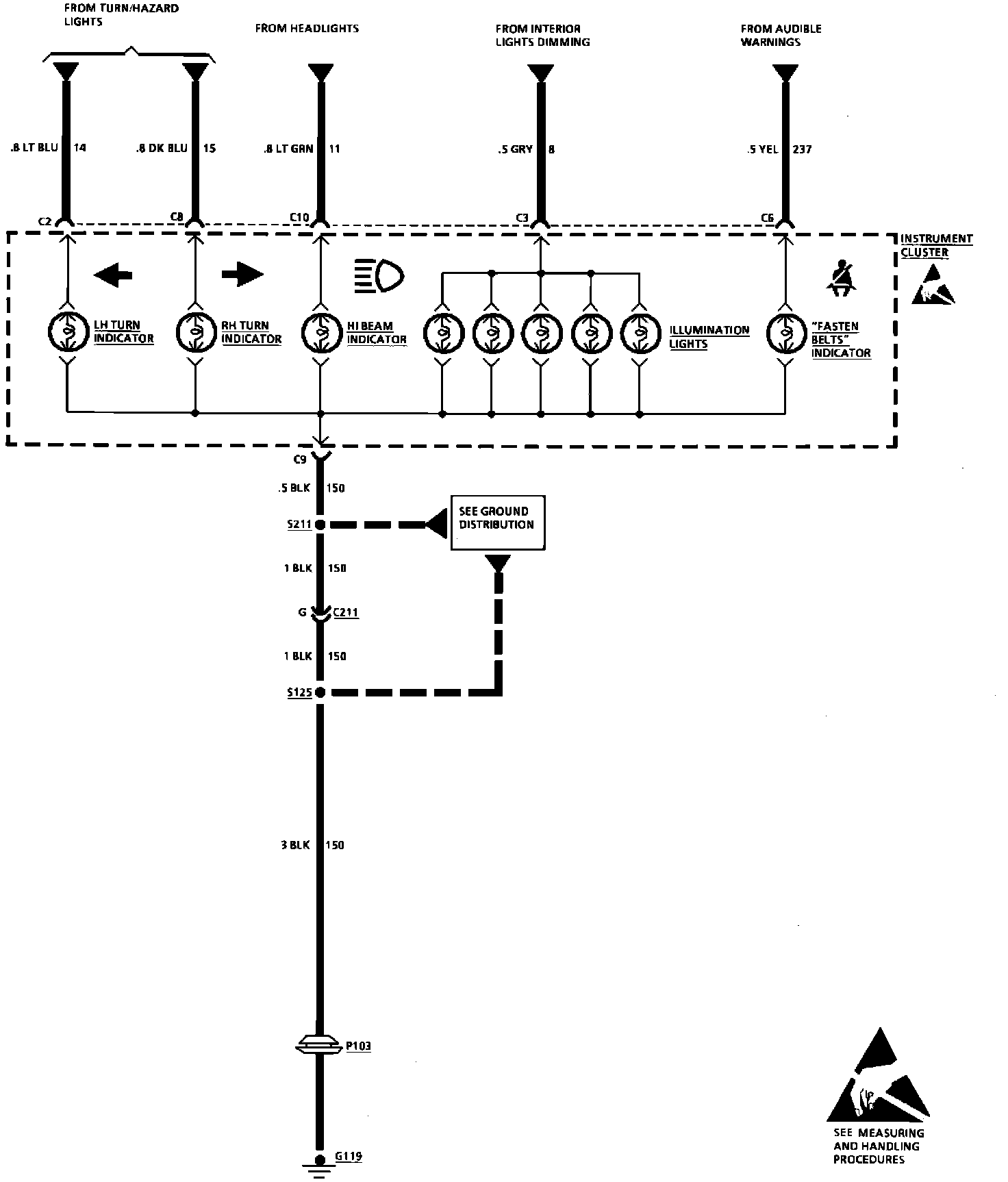

Wiring Diagram:
