Home
>>
Buick
>>
1993
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200-C299
>>
C200
>>
Row 2
Row 2

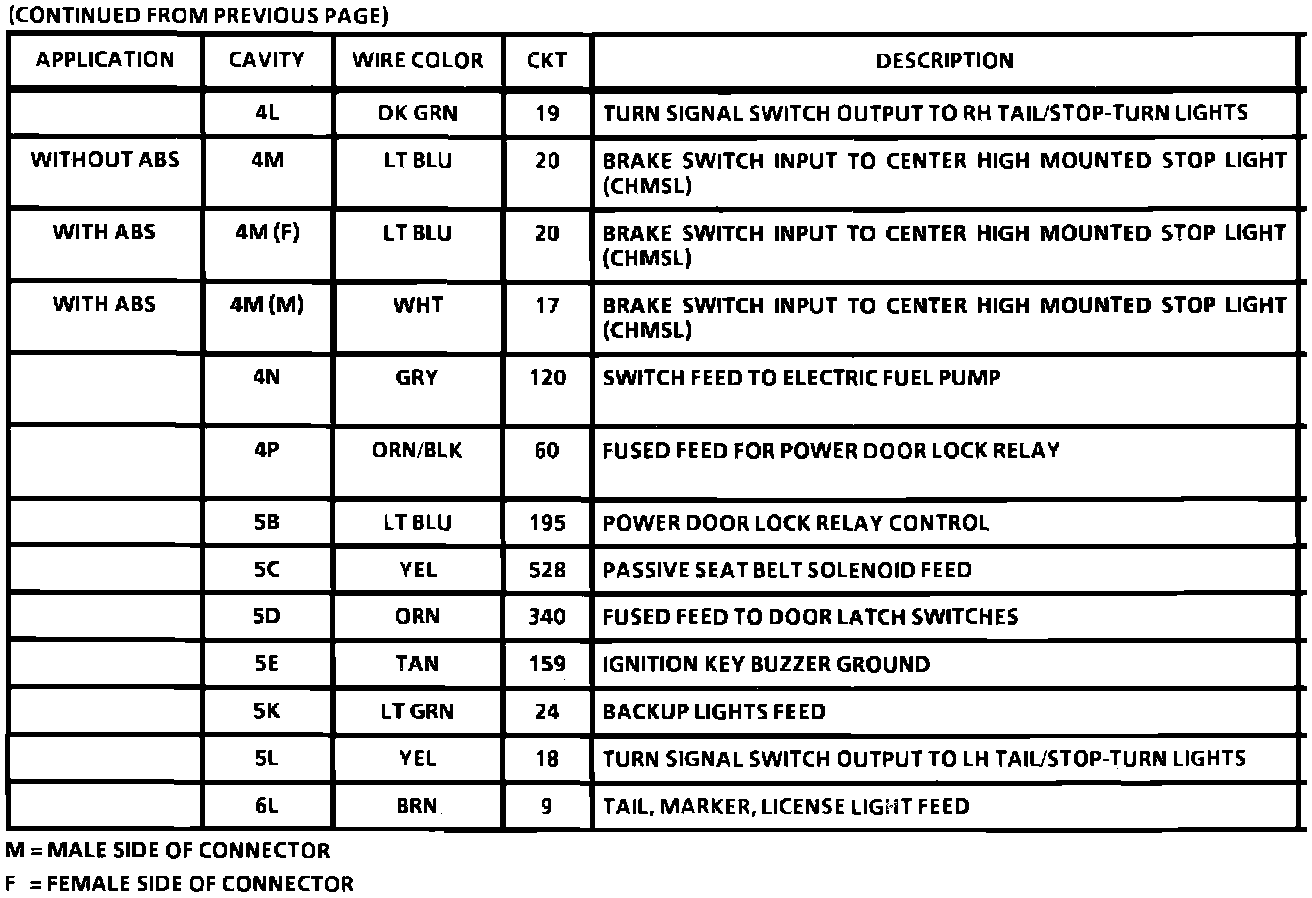

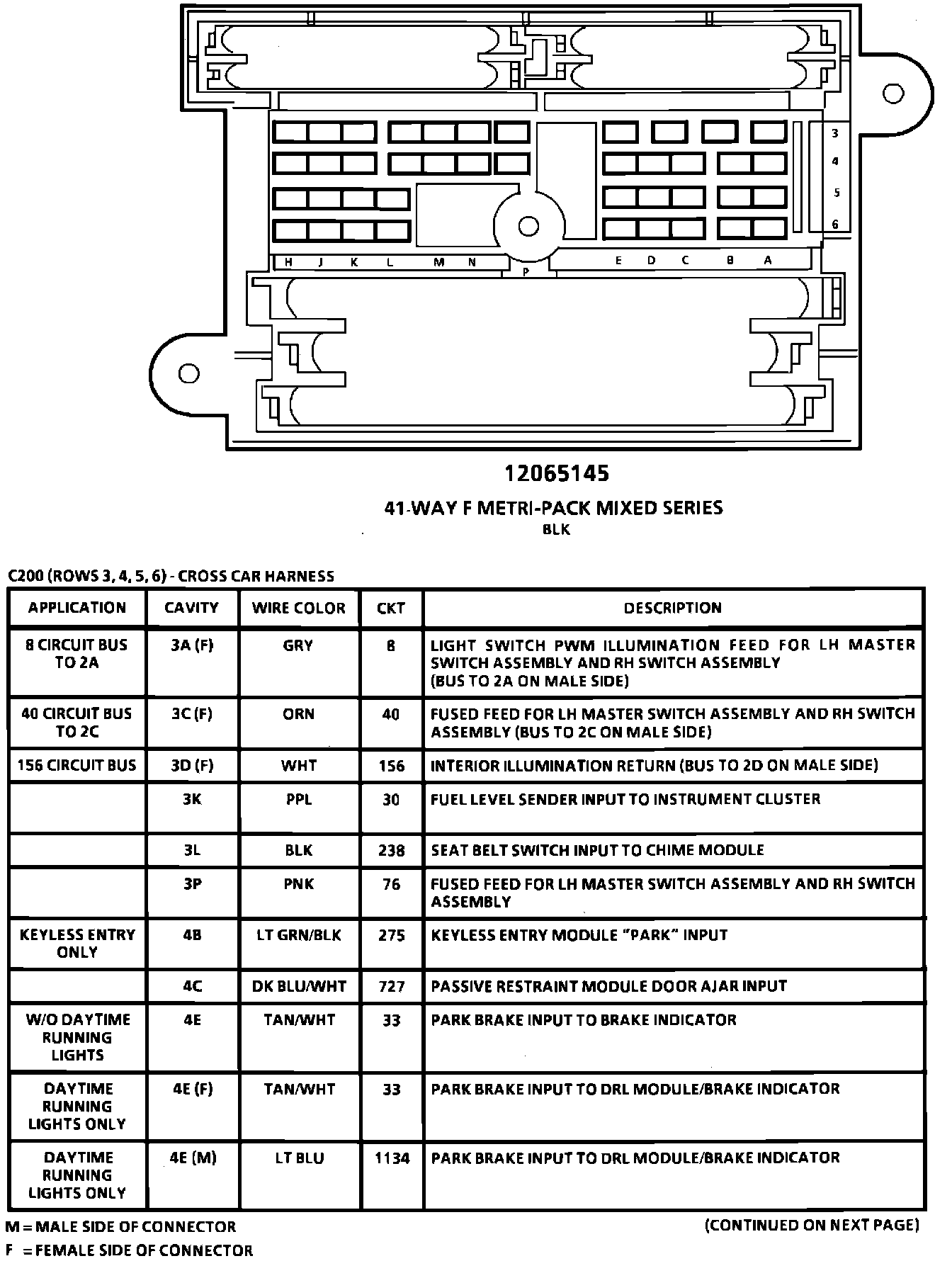

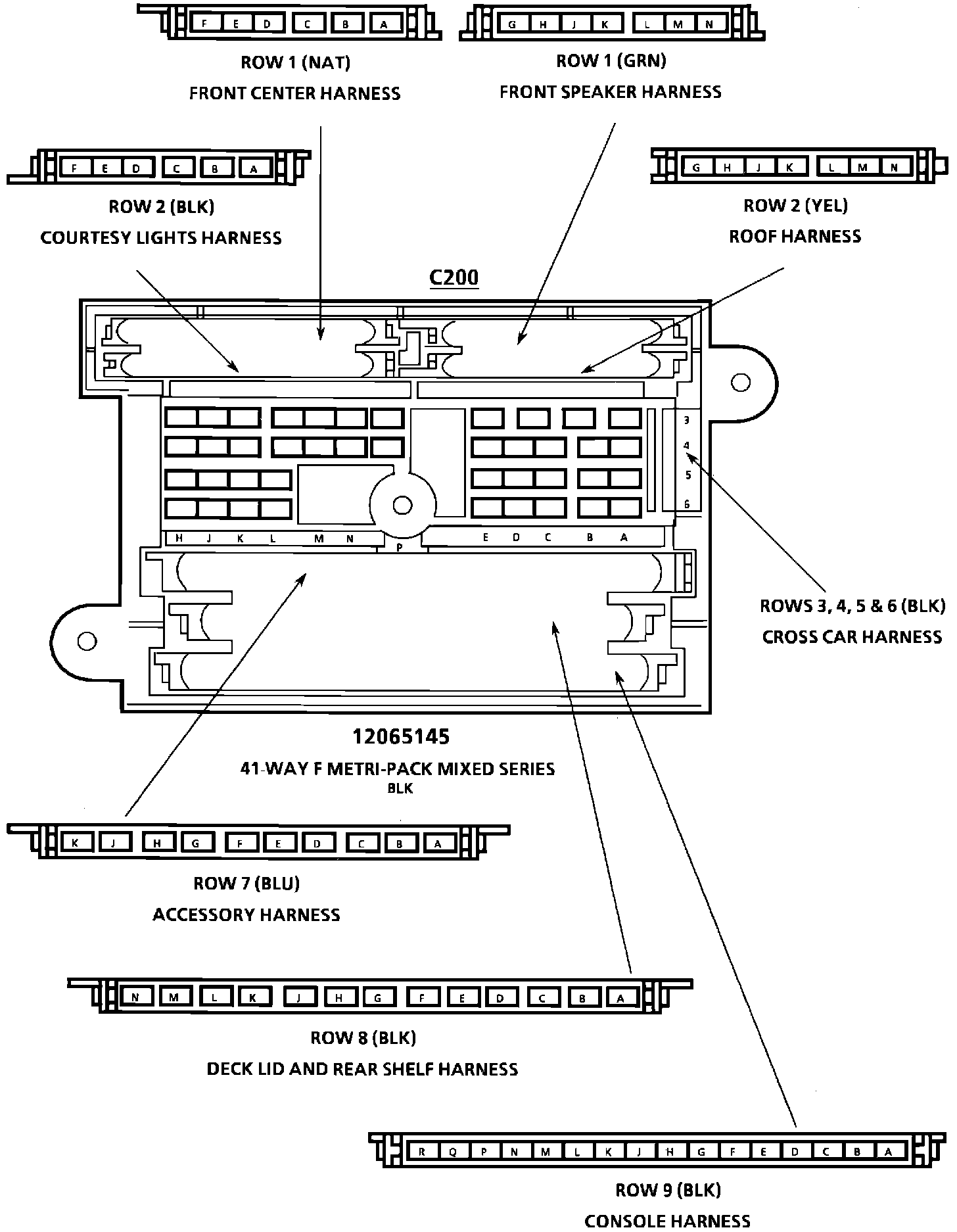

C200 Connector Face:
C200 Connector Face:
C200 Connector Face:
