Rearview Mirror - Vibration
Bulletin: 93-10-25Date: June '93
Ref.No.: 93-151-10
Corp.Ref.No.: 311503
SUBJECT:
ELECTROCHROMIC REARVIEW MIRROR (DD8) VIBRATION (REPLACE MIRROR)
MODELS AFFECTED:
1993 PARK AVENUE/ULTRA
Some 1993 Park Avenue or Ultra models may exhibit a rearview mirror vibration when equipped with the electrochromic mirror (DD8). A mirror, if removed for some reason, may also exhibit a vibration upon reinstallation due to a loss of spring tension.
To repair a comment of electrochromic rearview mirror vibration, replace the mirror with new part number 25618599. The retention spring in the mirror base has been stiffened on this part providing a tighter fit to the mirror support to eliminate vibration.

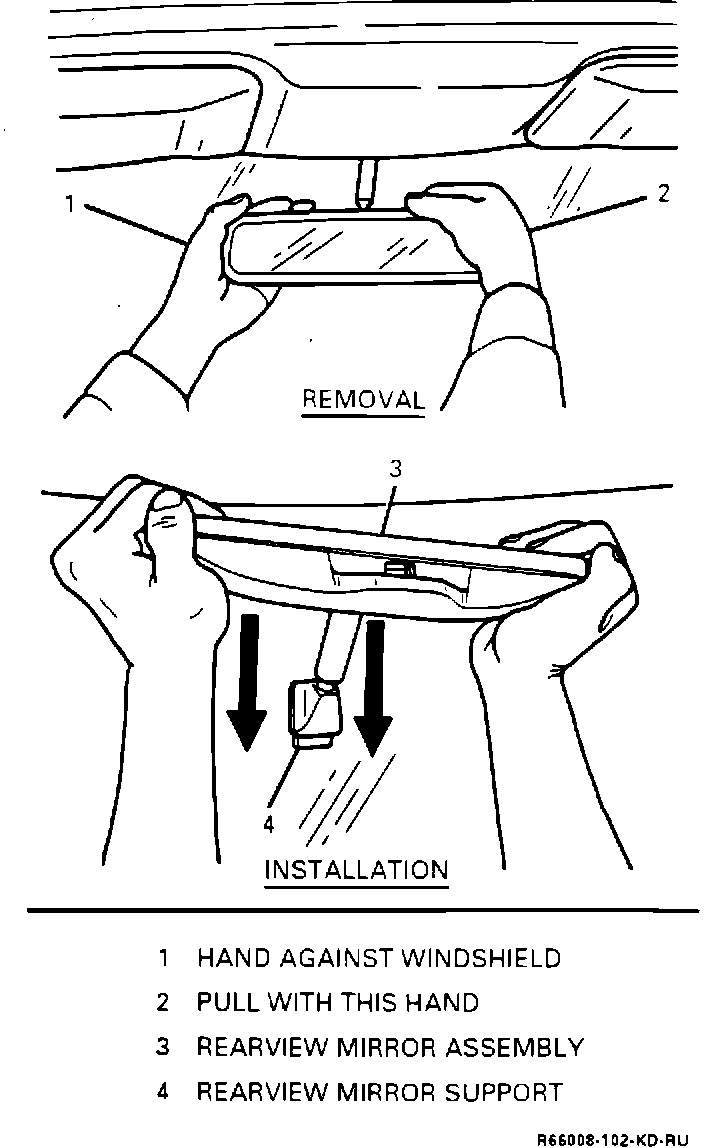

Remove or Disconnect (Refer to illustration):
NOTICE:
Do not use tools or other objects to pry mirror mount or mirror away from windshield. Use of tools may damage mirror mount, mirror, or windshield.
1. Electrical connectors at rear of mirror assembly.
2. Twist mirror to one side and use one hand to support edge of mirror against windshield.
3. Use other hand to pull mirror away from windshield with a quick jerk.
Install or Connect:
1. Position bottom of mirror mount against windshield at top of support.
2. Slide mount onto support keeping mount parallel to windshield.
3. As mount start to engage support, apply a force against support while maintaining a downward force until the mount snaps onto the support with an audible click: this operation will require at least 20 pounds of force.
4. Check to make sure mirror is securely attached by adjusting mirror in a normal up/down and side to side range.
5. Electrical connectors.
Parts are currently available from GMSPO.
WARRANTY INFORMATION:
Labor Operation No.: C0040
Labor Time: .2 hour
Trouble Code 36.
