I/P Fuse Block: Fuses 15

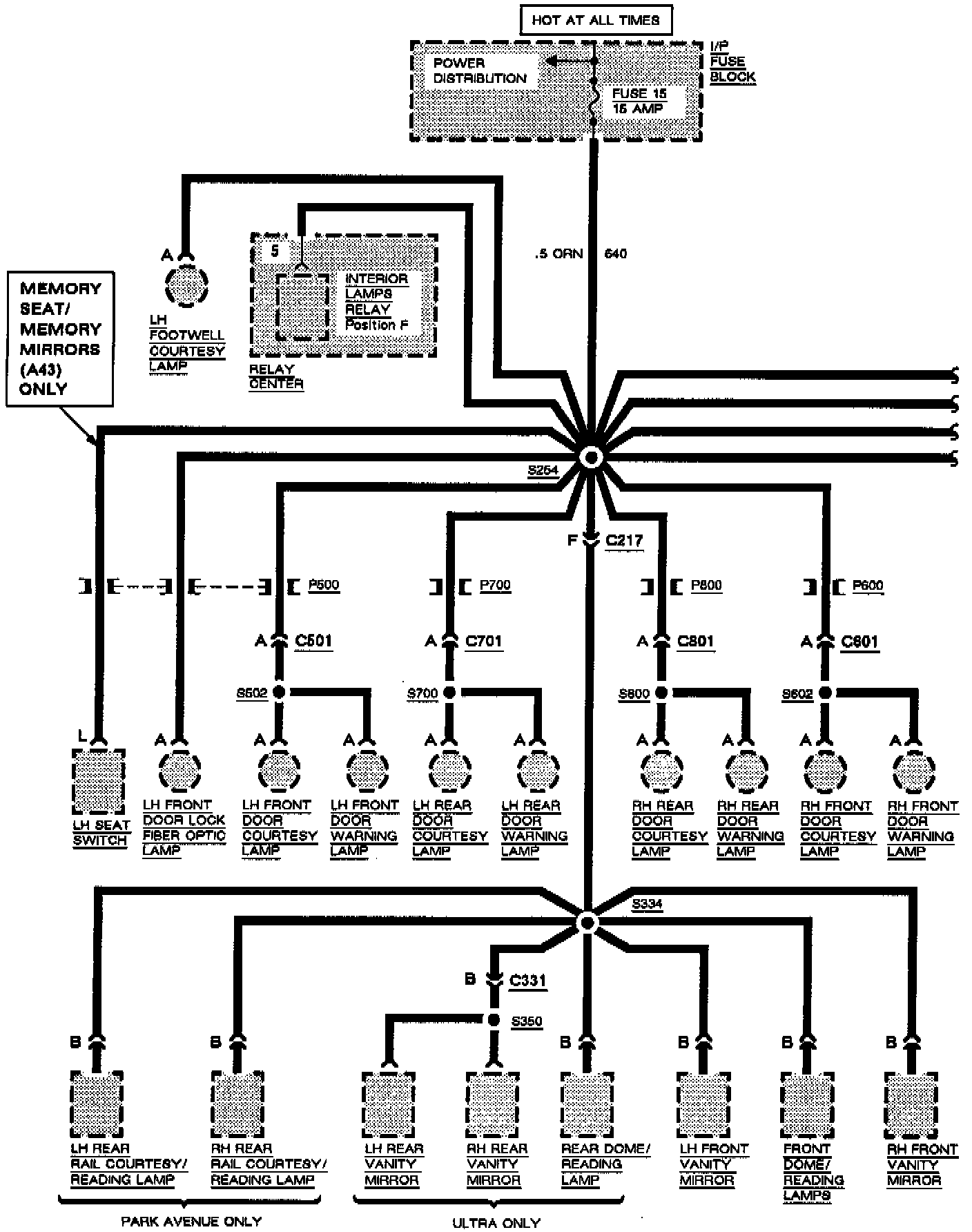

Instrument Panel Fuse Block Fuse 15:

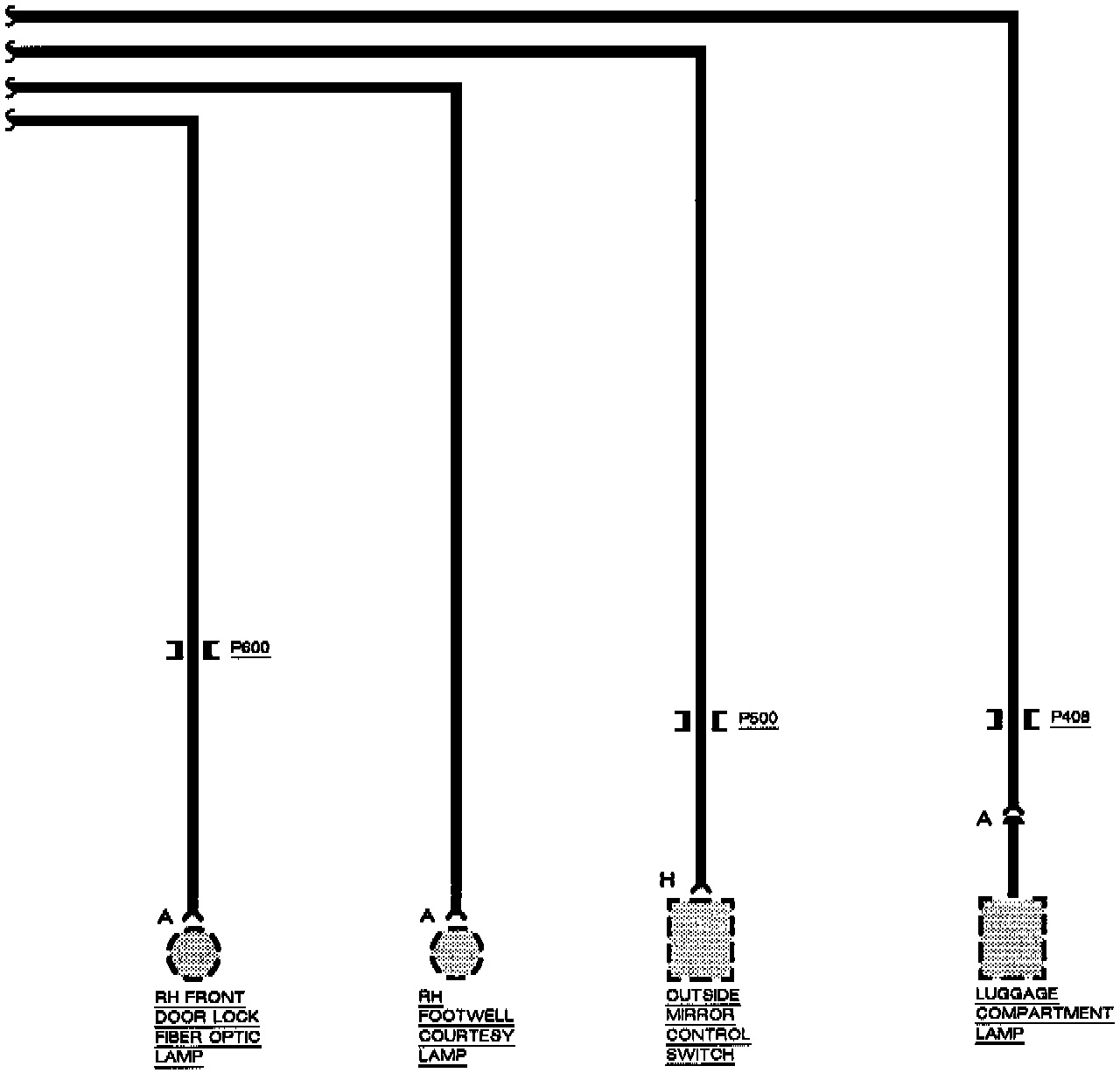

Instrument Panel Fuse Block Fuse 15 (continued):
