Home
>>
Buick
>>
1993
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
I/P Fuse Block: Fuses 1, 2, Circuit Breaker 3
I/P Fuse Block: Fuses 1, 2, Circuit Breaker 3

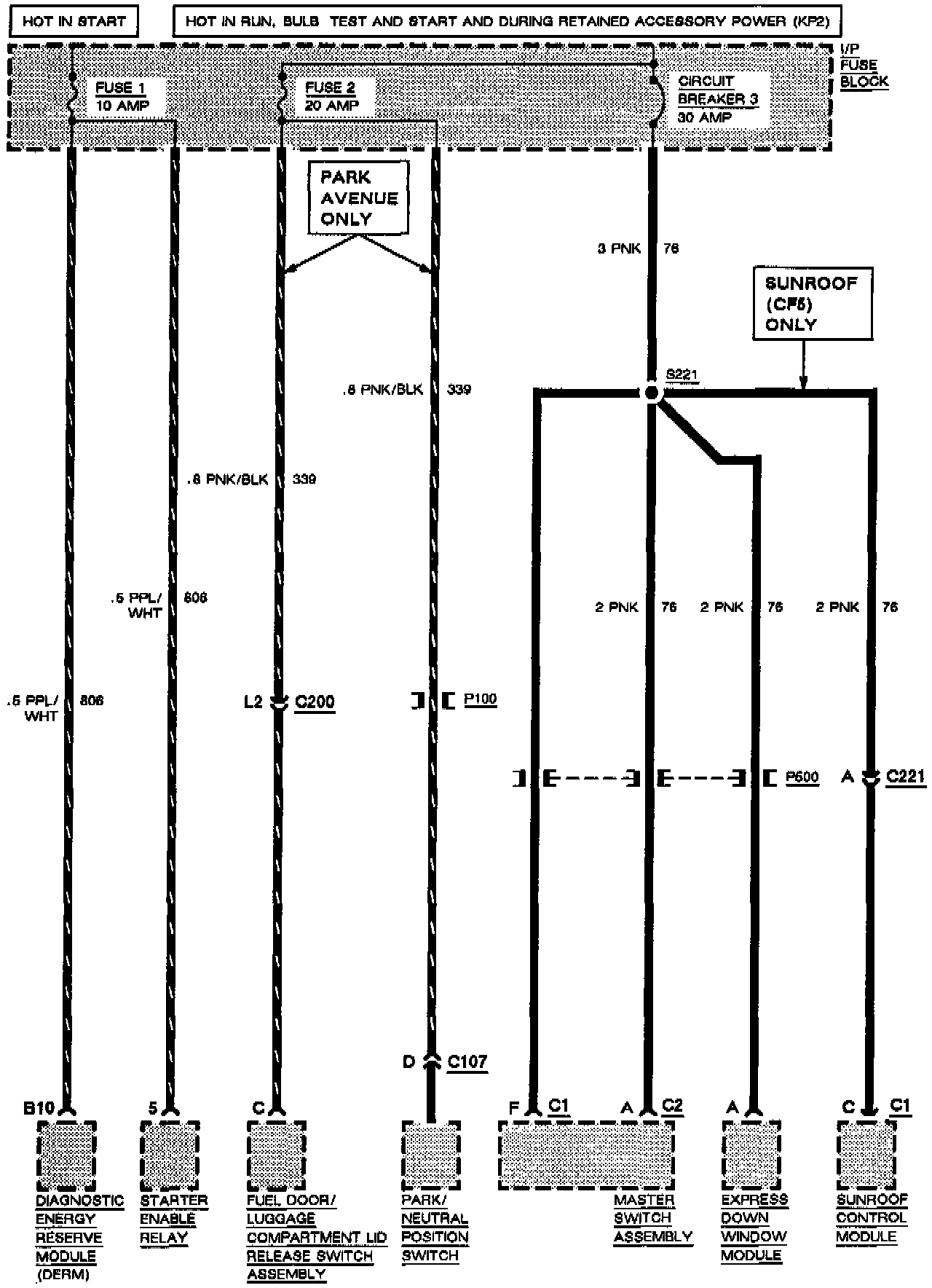

Instrument Panel Fuse Block Fuses 1, 2, C.B. 3:
