Buick
>>
1993
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Injectors
Fuel Injectors

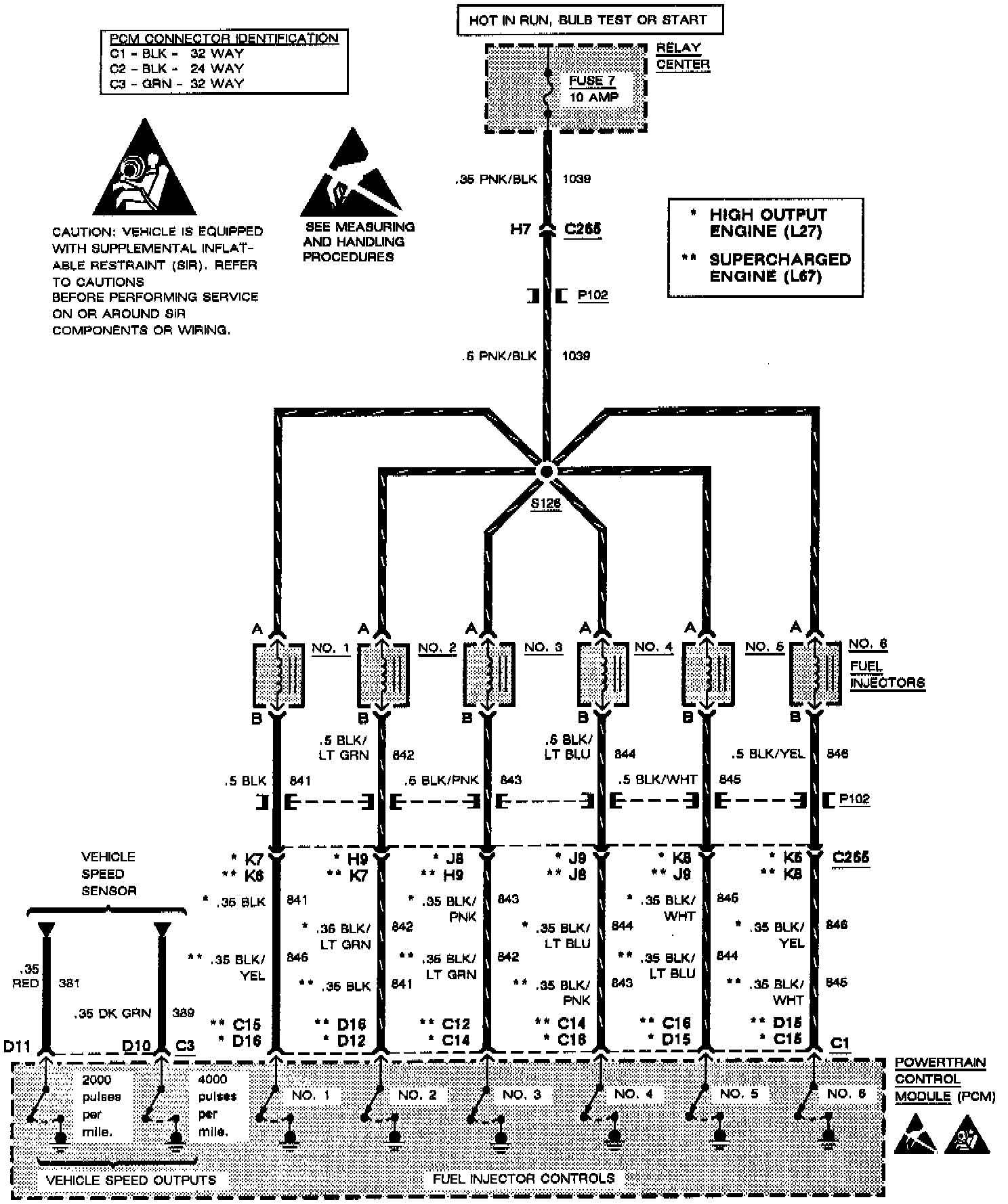

Sequential Fuel Injection: Fuel Injectors:
