Keyless Entry

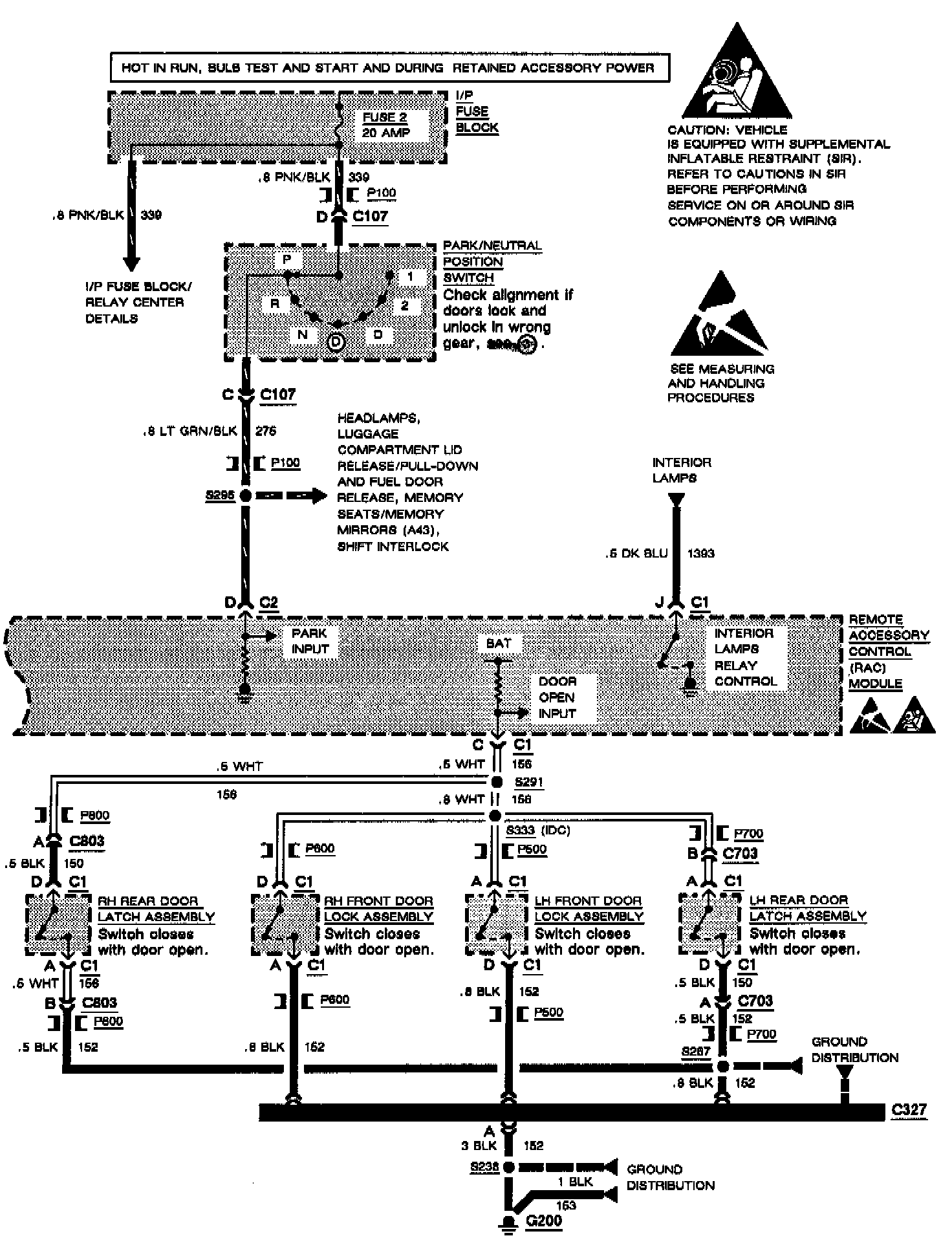

Remote Keyless Entry/Automatic Door Locks: Wiring Diagram:

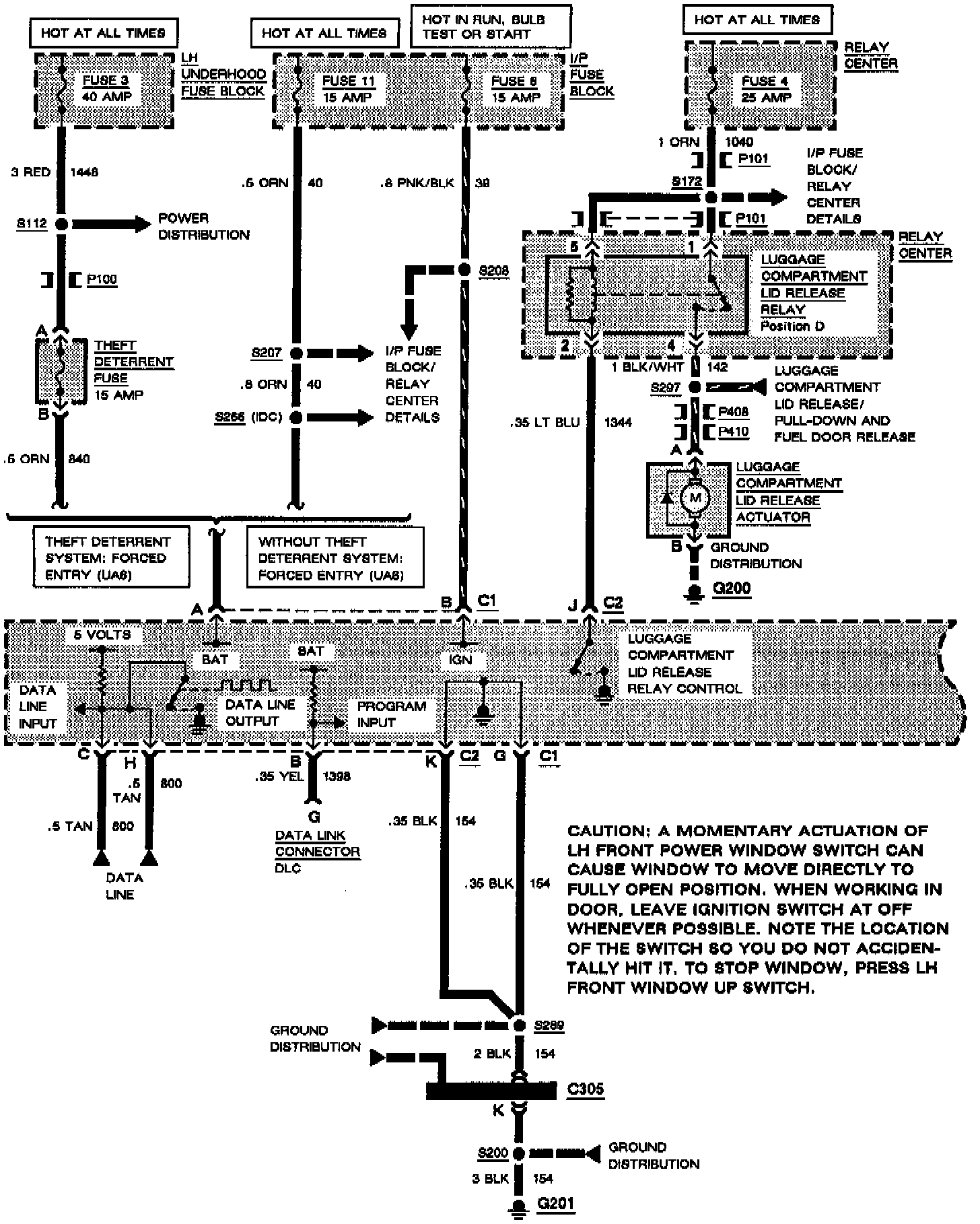

Remote Keyless Entry/Automatic Door Locks: Wiring Diagram:



Remote Keyless Entry/Automatic Door Locks: Wiring Diagram:



Remote Keyless Entry/Automatic Door Locks: Wiring Diagram:
