Forced Entry

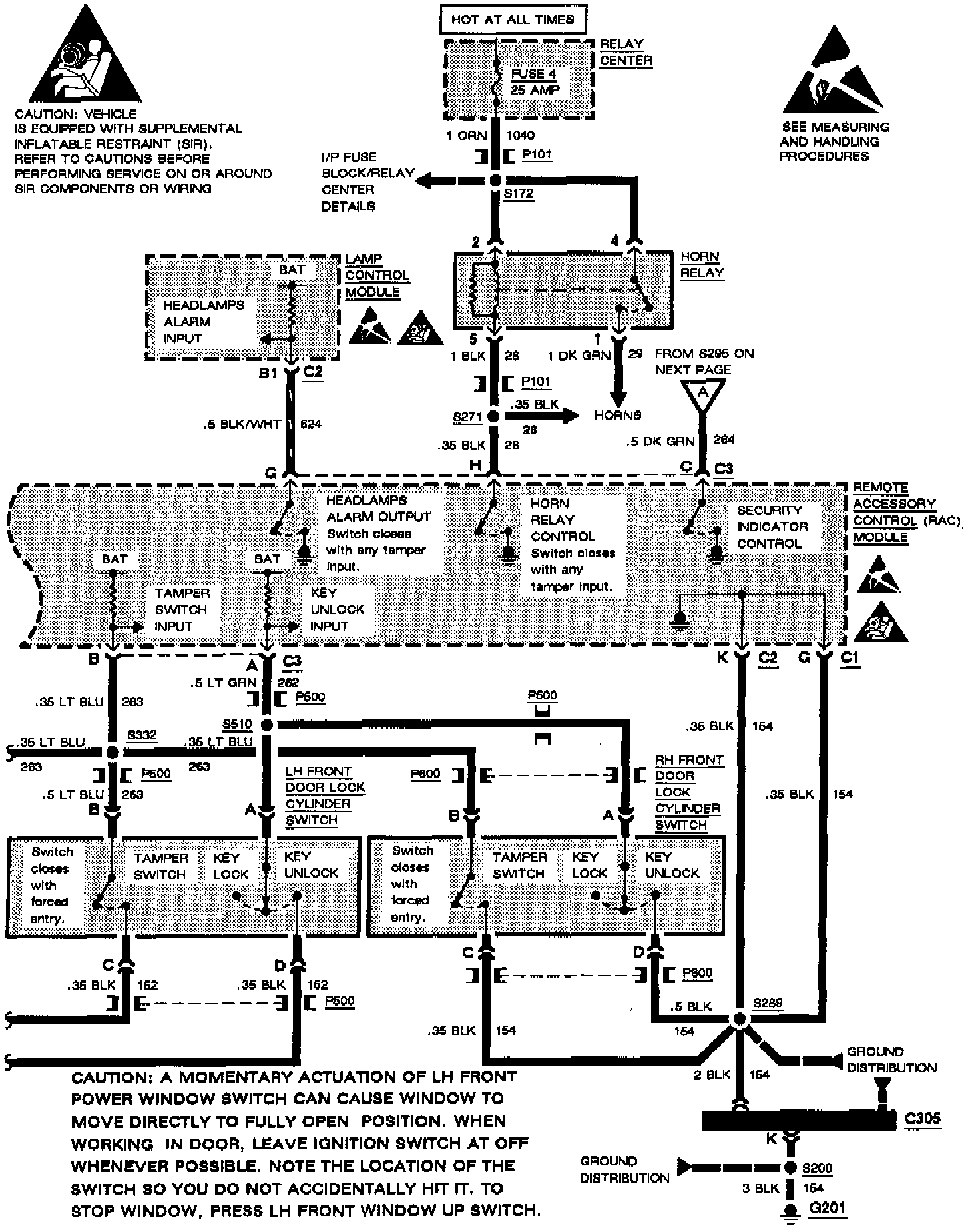

Theft Deterent System: Forced Entry (Wiring Diagram):

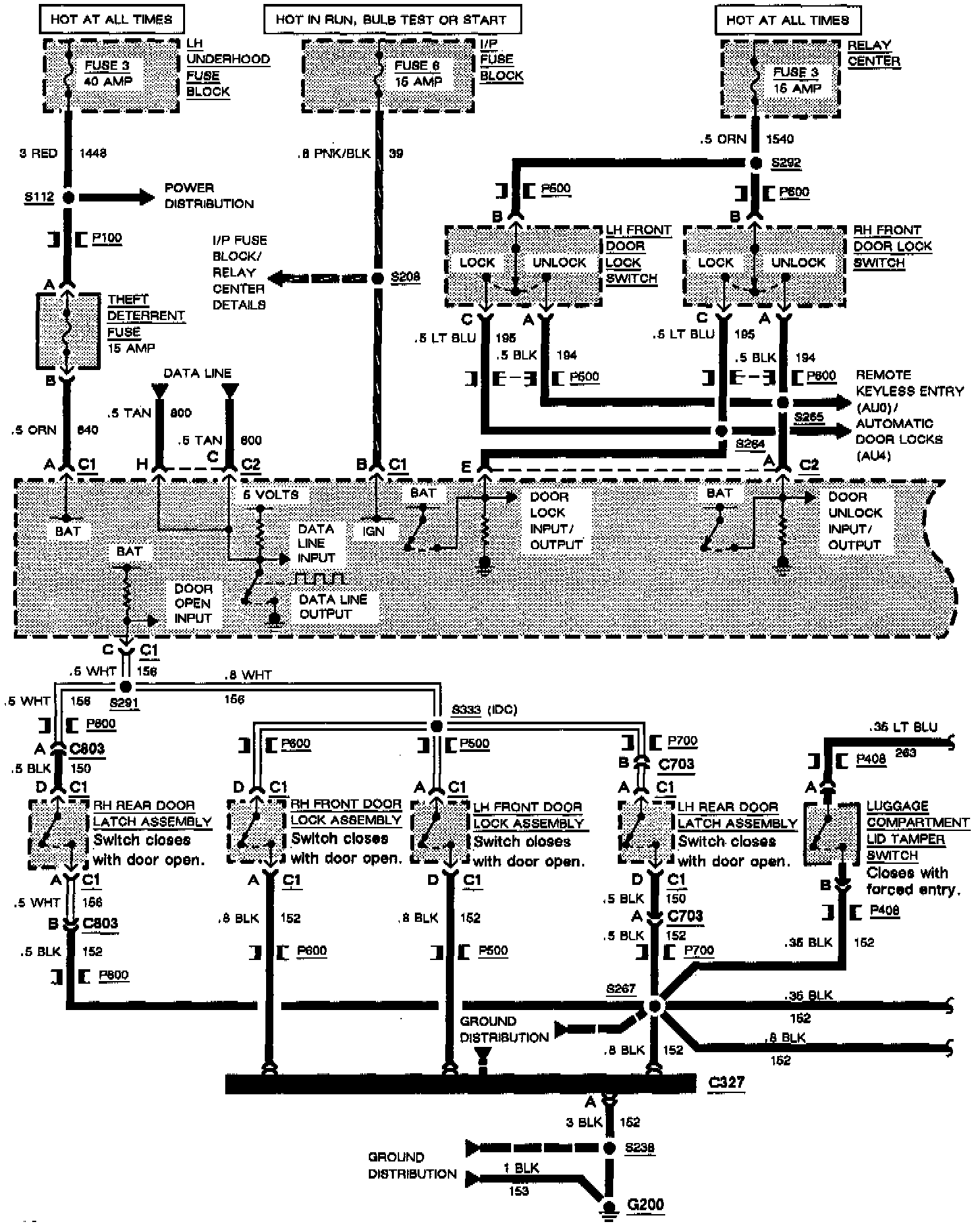

Theft Deterent System: Forced Entry (Wiring Diagram):
