Buick
>>
1993
>>
Park Avenue Ultra V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Part 2 of 3
Part 2 of 3

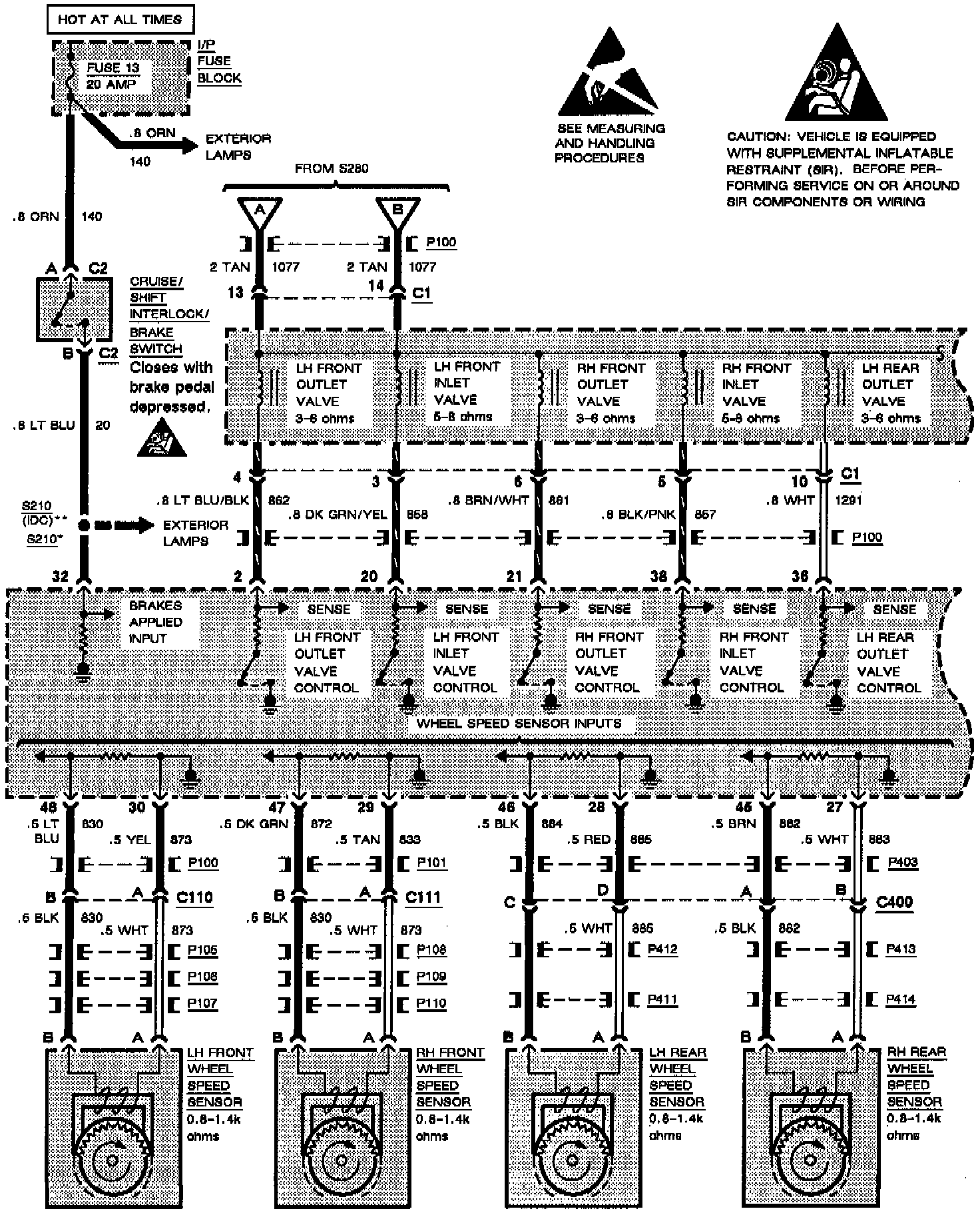

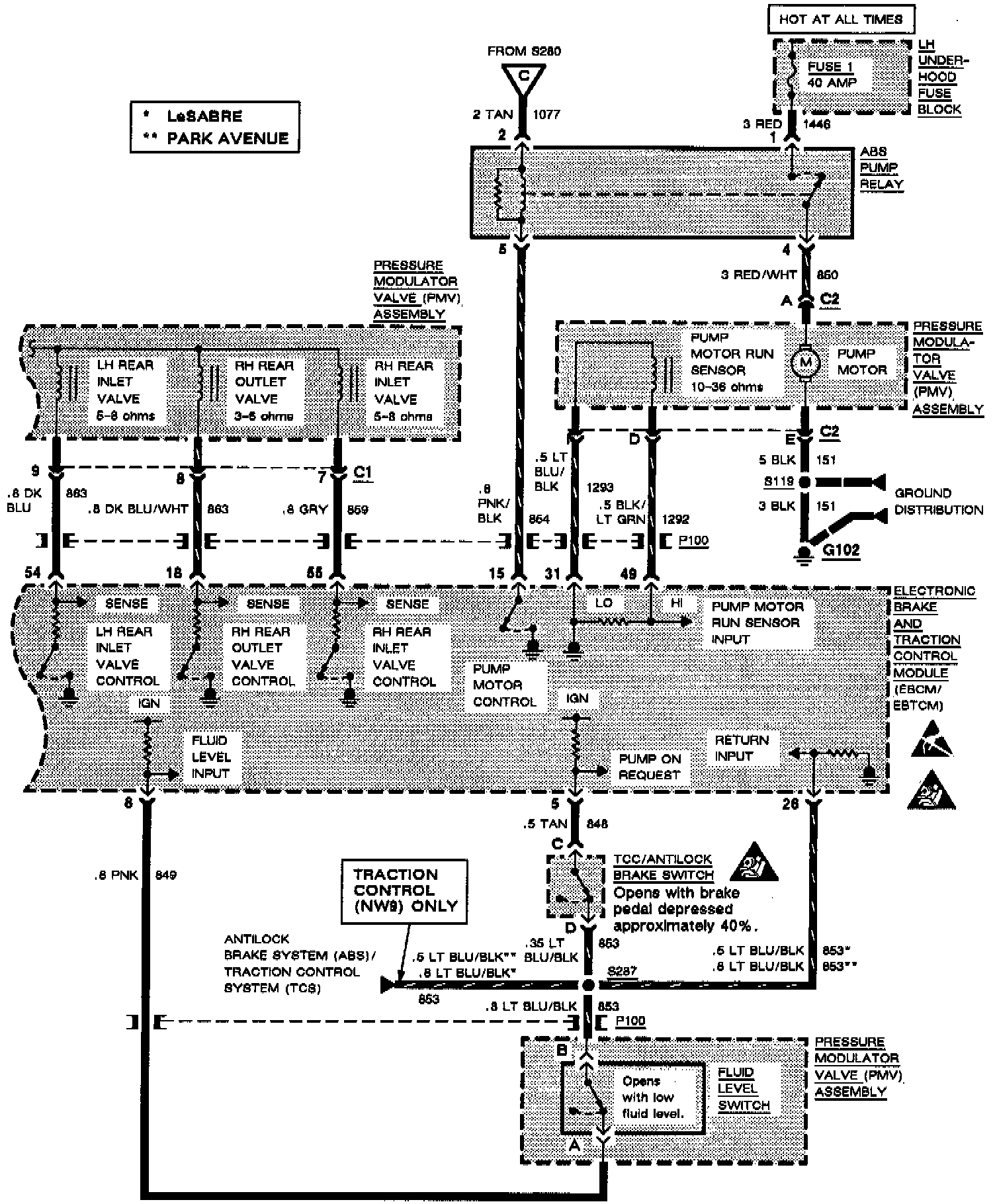

Antilock Brake System Traction Control System Wiring Diagram:
Antilock Brake System Traction Control System Wiring Diagram:
