Home >> Buick >> 1993 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Lighting and Horns >> Headlamp

Headlamp

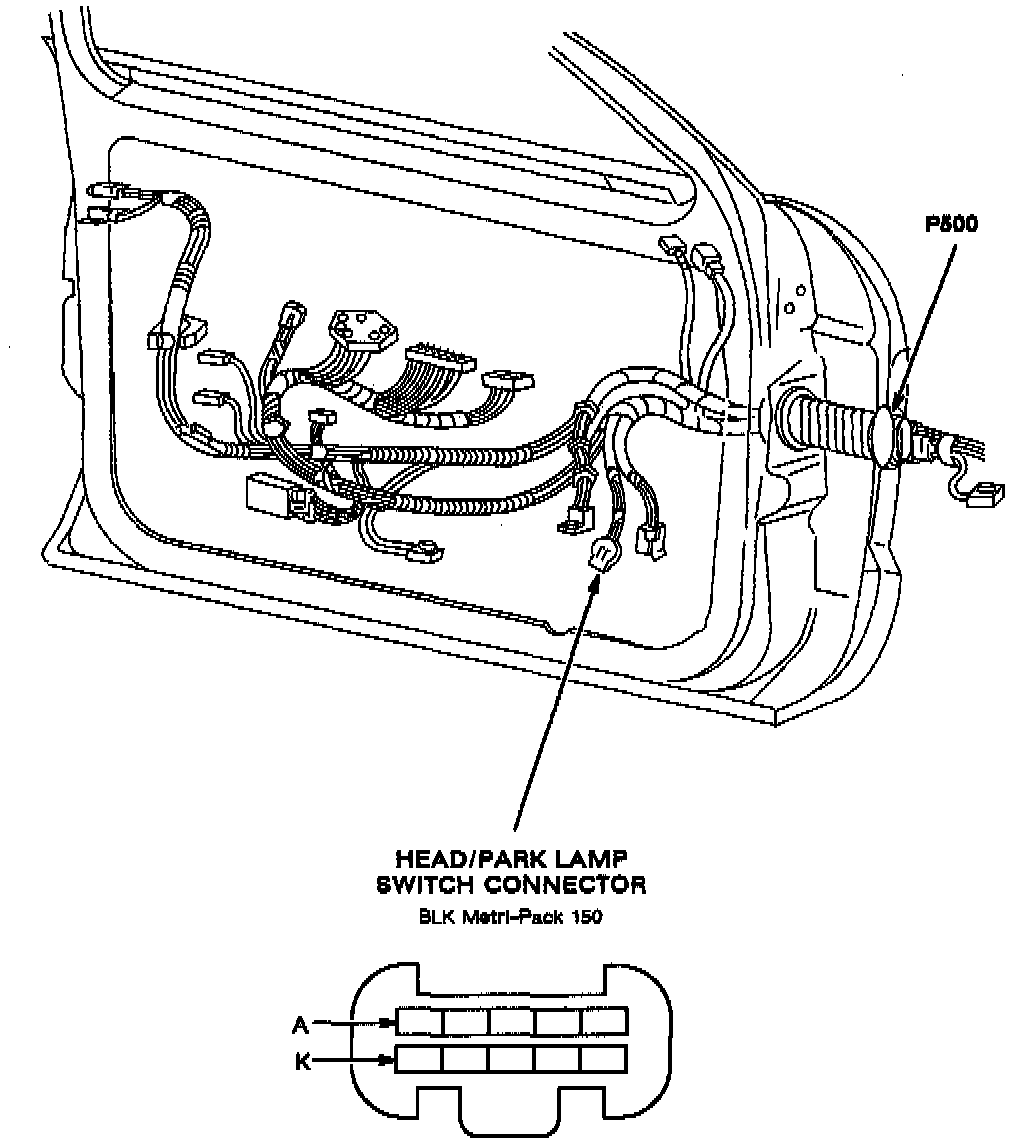

System Locator: Headlamps:

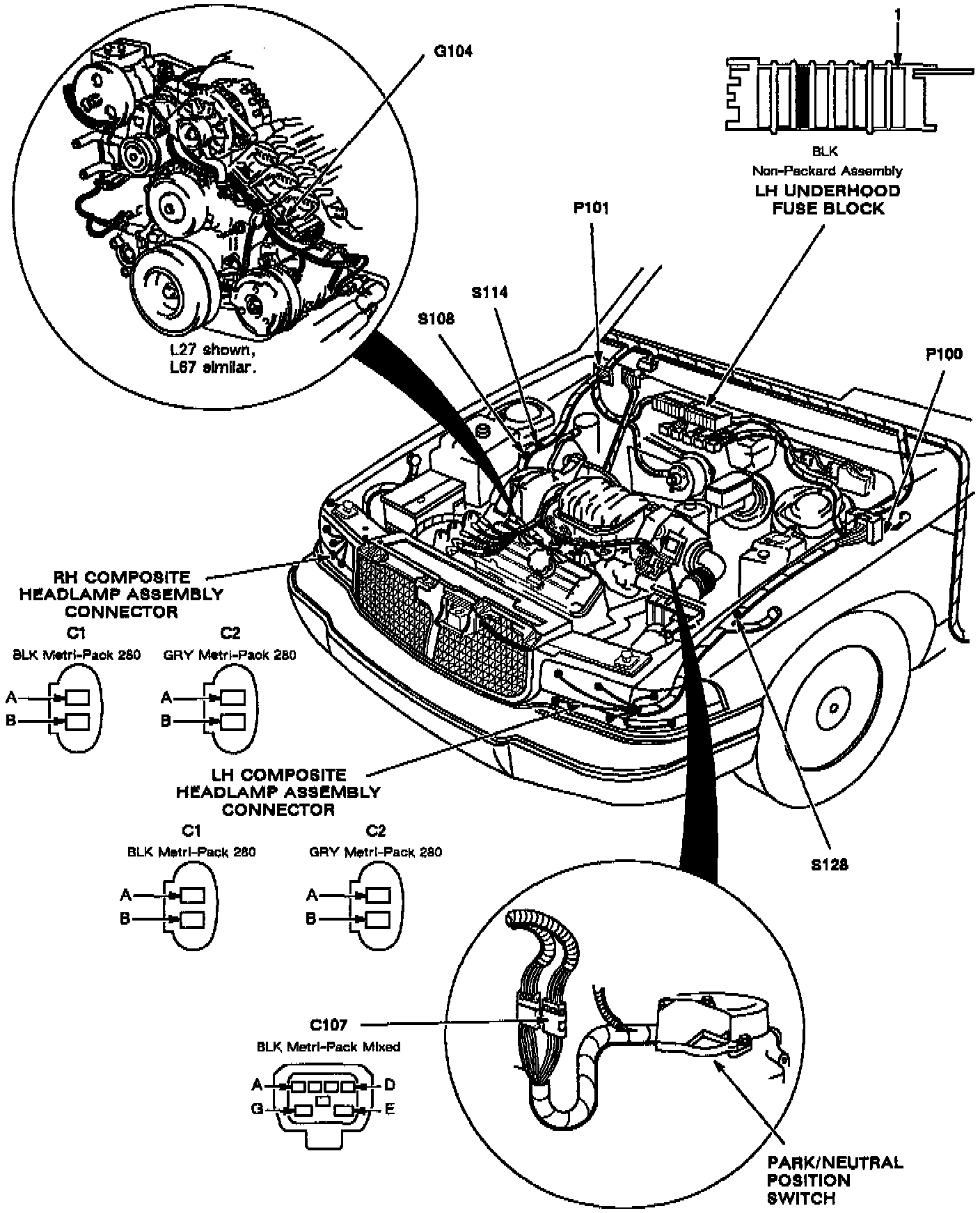

System Locator: Headlamps:

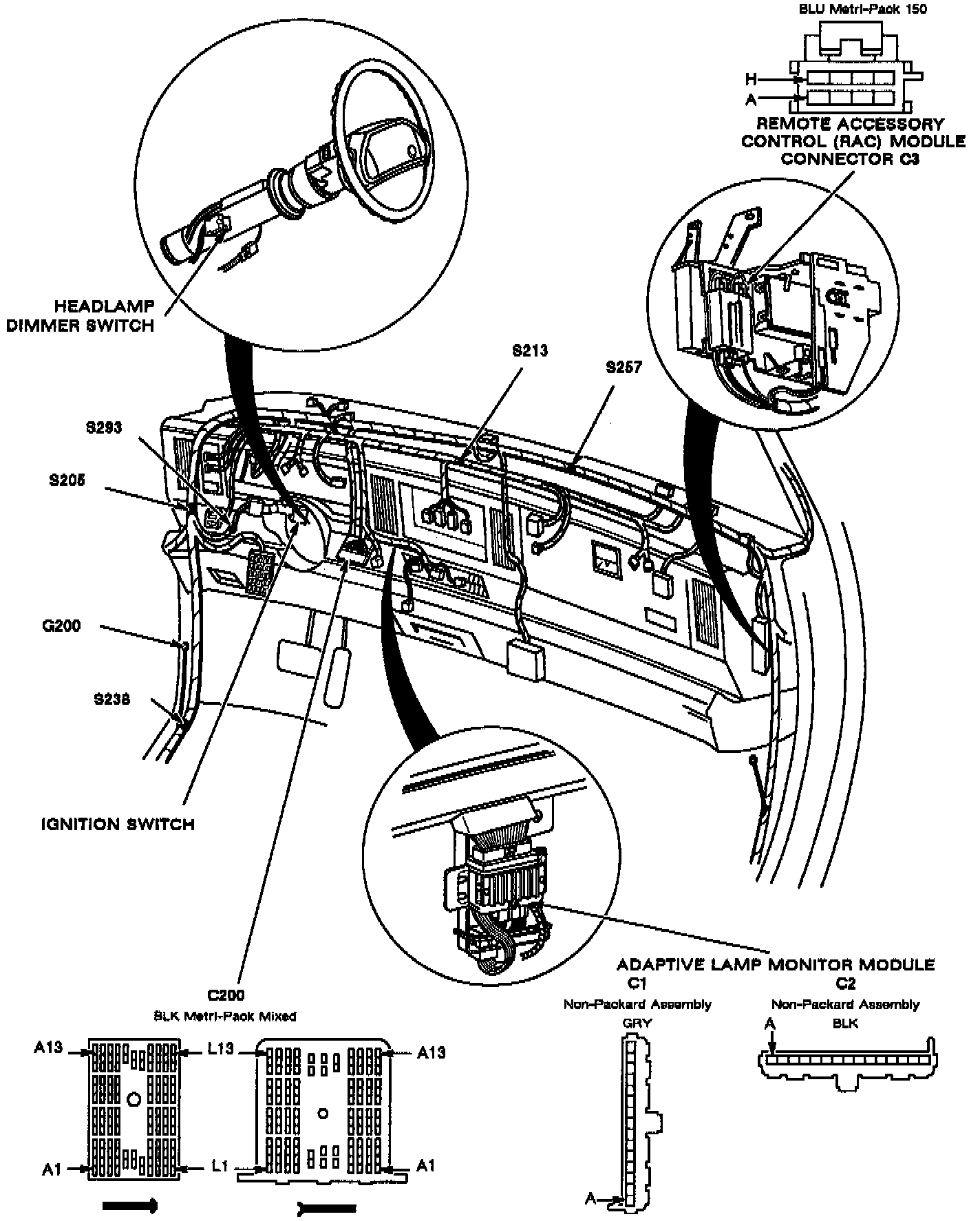

System Locator: Headlamps:

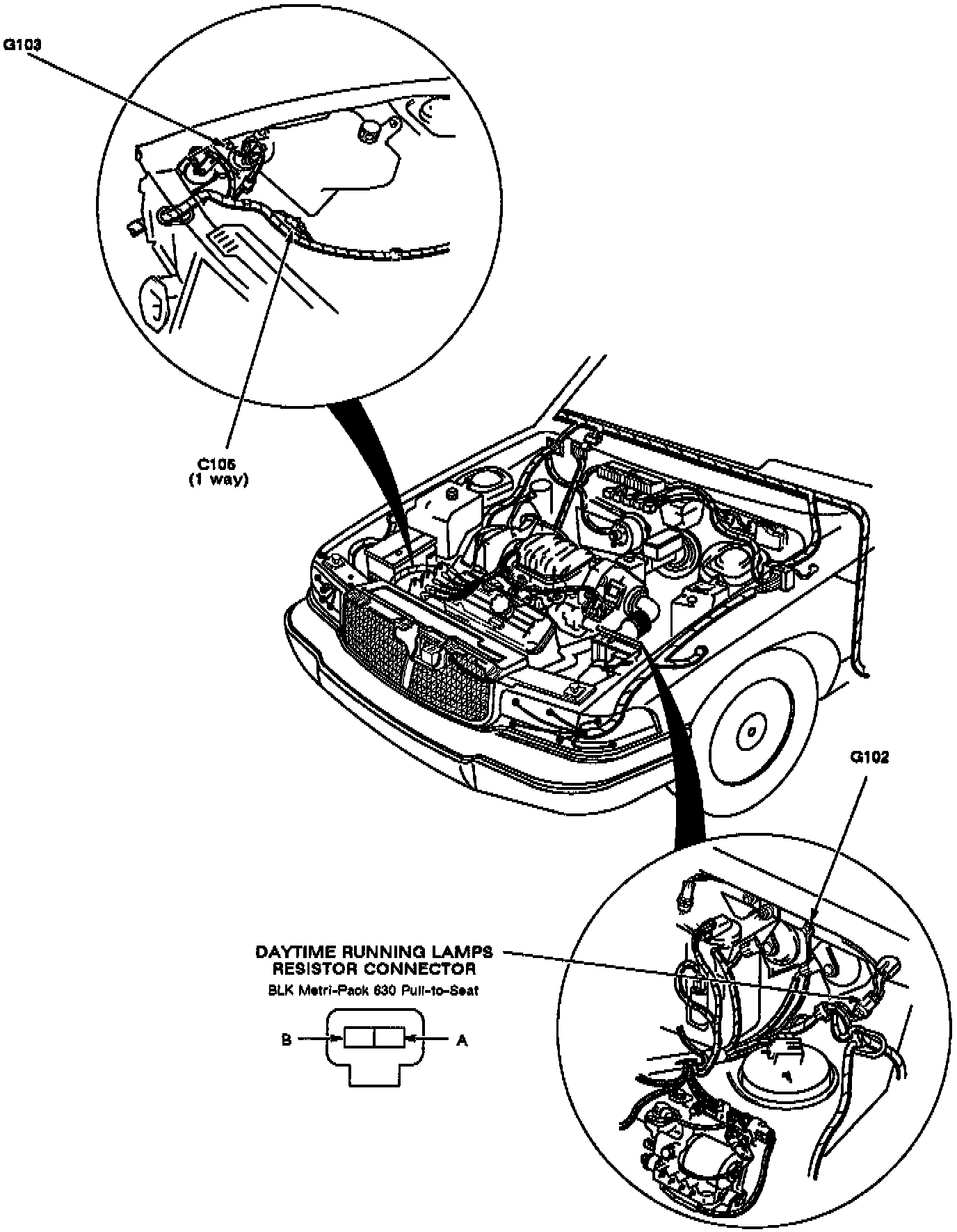

System Locator: Headlamps:



System Locator: Headlamps:
